C. THIRD STAGE

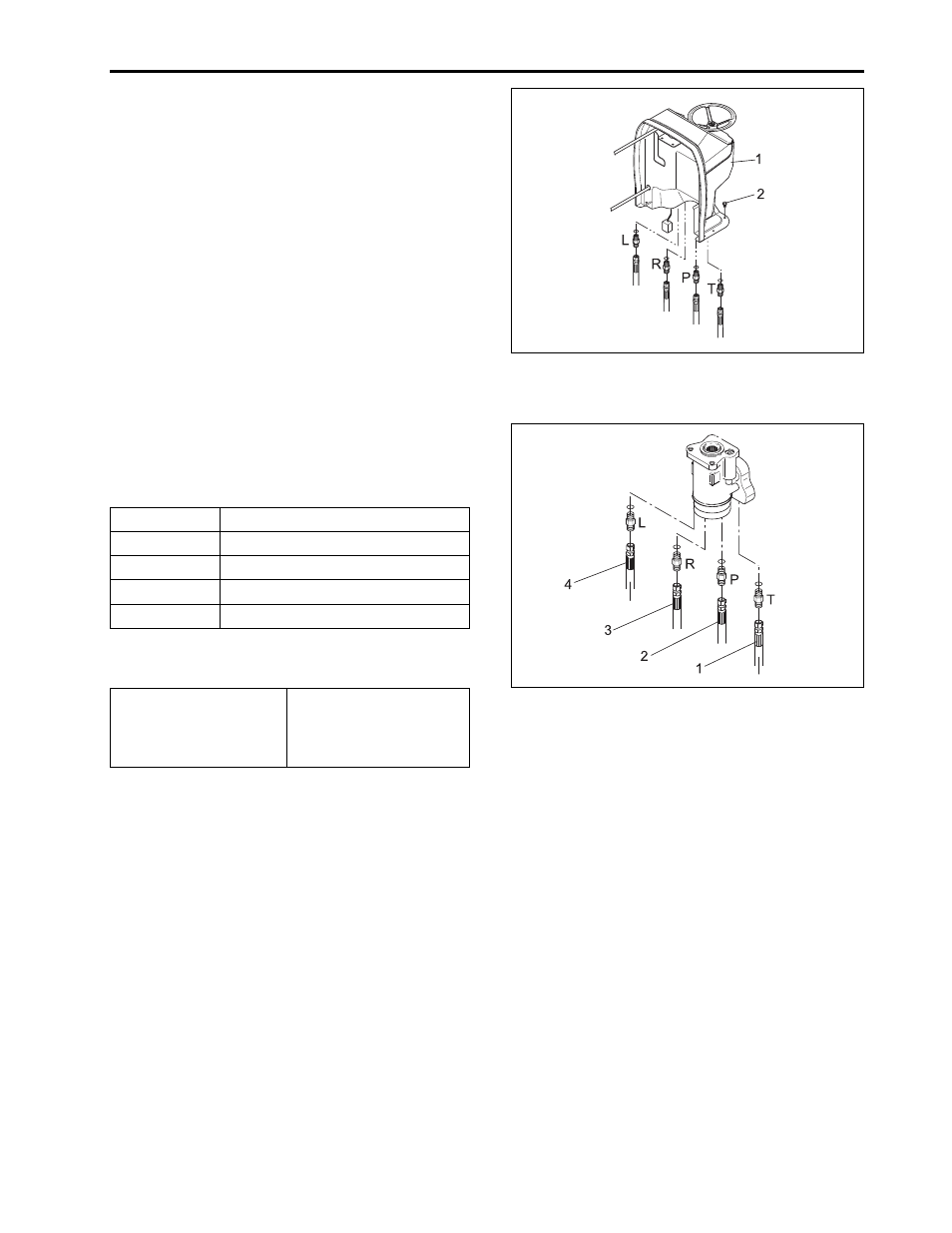

1. Disengage attaching bolt (2) of frame assembly (1).
2. Disassembly frame assembly.
(When reassembling)
• When connecting with power steering unit hoses
(1), (2), (3) and (4) make sure hose color and con-
necting port to be assembled properly.
Connecting Port
T
P
R
L
Hose Type
Steering hose assembly T (Green)
Steering hose assembly P (Red)
Steering hose assembly R (White)
Steering hose assembly L (Yellow)
• When connecting power steering unit hose, see the
specified torque.
Hose connecting nut
tightening torque 46.6 ~ 58.9 N·m
4.8 ~ 5.2 kgf·m
18.1 ~ 21.7 lbf·ft
(1) Steering Hose Assembly T
(2) Steering Hose Assembly P
(3) Steering Hose Assembly R
(4) Steering Hose Assembly L
(1) Frame Assembly
(2) Bolt
