CHAPTER 2 8354/8404
2-6 D615-W02 May-2003
615W206A

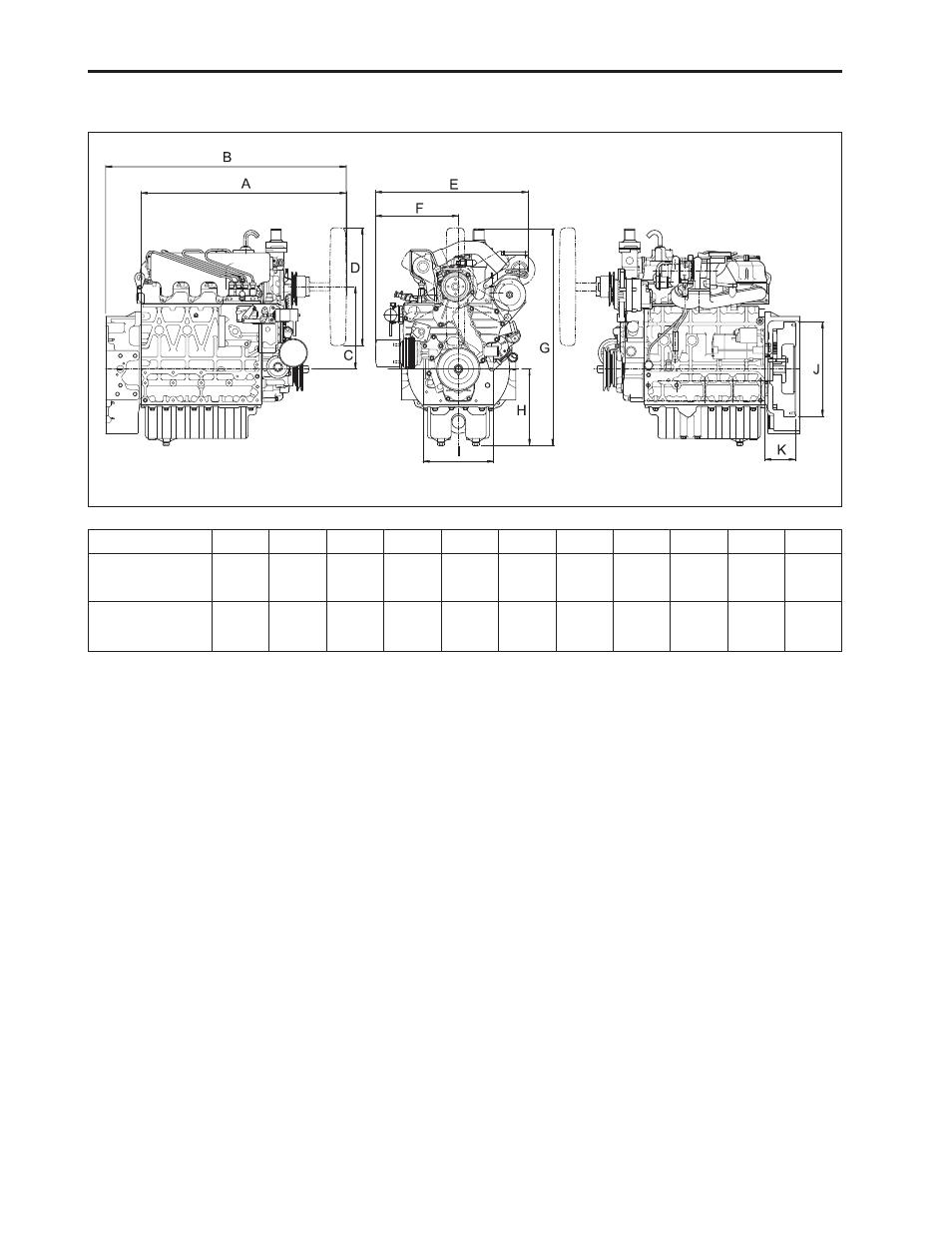

1.4 DIMENSIONS
3A165D (mm)
(in.)
4A200B (mm)
(in.)
A
602.3
23.71
697.3
27.45
B
722.3
28.44
817.3
32.18
C
280.0
11.02
280.0
11.02
D
400.0
15.75
400.0
15.75
E
488.1
19.22
488.1
19.22
F
251.6
9.91
251.6
9.91
G
729.9
28.74
735.8
28.97
H
259.7
10.00
259.7
10.22
I
240.0
9.45
240.0
9.45
J
315.0
12.40
321.0
12.64
K
95.0
3.74
92.0
3.62
1.5. GENERAL WARNING
• When disassembling, arrange each part on a clean
place. Do not mix them up. Replace bolts and nuts
where they were.
• When servicing electrical parts or connecting instru-
ments to electrical equipment, first disconnect the
battery negative terminal.
• Replace gaskets or O-rings with new ones when
reassembling, and apply grease on a O-ring and
the oil seal when reassembling.
• When exchanging parts, use Cub Cadet parts to
maintain engine performance and safety.
• To prevent oil and water leakage, apply non-drying
adhesive to the gaskets according to this manual
before reassembling.
• When hoisting up the engine, use the hook pro-
vided on the cylinder head.
• When reinstalling the engine, use the hook provided
on the cylinder head.
• When installing external cir-clips or internal cir-clips,
direct corner end to the non-loosening direction.
