TRANSMISSION
4-23 D615-W02 May-2003
615W438A
615W436A

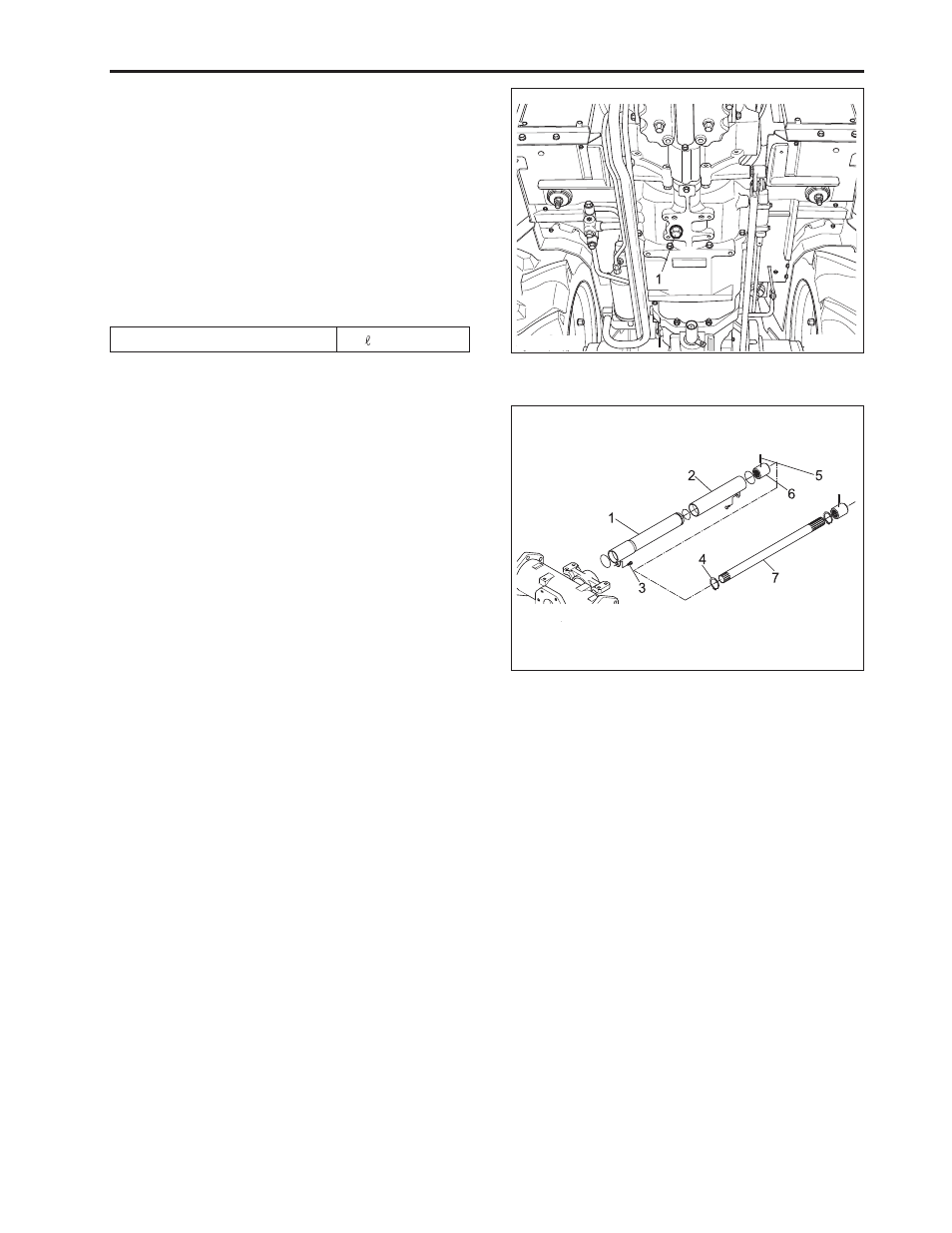

9.1 TRANSMISSION OIL DRAINING
1. Loosen oil drain plug in the lower of clutch housing
and transmission case.
2. Drain transmission oil.
3. Reconnect oil drain plug.
(When reassembling)
• Disconnect plug from filler neck and then fill oil to
the scale of oil gauge.
• After running the engine properly, recheck the scale
of oil gauge and add fluid if necessary.
9.2 CLUTCH HOUSING GROUP
DISASSEMBLY
A. First Stage (Propulsion Shaft Cover
Disassembly)
1. Disengage propulsion shaft covers (1), (2) and bolt
(3) from the lower of machine.
2. After propulsion shaft cover is tighten inward, pull
out snap ring (4) and spring pin (5).
3. With coupling (6) tightened to propulsion shaft 2
(7), disconnect propulsion shaft 2 combined with
propulsion shaft cover.
(When reassembling)
• Apply spline part of propulsion shaft 2 and O-ring
contacts at the end of propulsion shaft cover 1 and
2 with grease.
Mission oil specified amount 44 (11.6 US.gal)
(1) Oil Drain Plug
(1) Propulsion Shaft Cover 1
(2) Propulsion Shaft Cover 2
(3) Bolt
(4) Snap Ring
(5) Spring Pin
(6) Coupling
(7) Propulsion Shaft 2
