CLUTCH
3-7 D615-W02 May-2003
615W309A
1. Disconnect ROPS (1).
2. Disconnect seat assembly (2).
3. Disconnect knobs (3), (4), (5), (6) and (7) of each
transmission shift lever.
4. Disconnect transmission shift lever guide (8) and
hydraulic lever guide (9).
5. Disconnect differential clamping rod (11) and the
spring (12) from lower seat assembly (10).
6. Disconnect the wiring connector from rear fender
light (13) and work light (14).
7. Loosen locking bolts (16) and (17) from the step-
ladder assembly (15) and seat lower assembly (10).
Sect.
Stepladder assembly
and seat lower
assembly locking nut
ROPS locking bolt, nut
Spec.
M16
M14
M12
Tightening Torque
196 ~ 225 N·m
20.0 ~ 23.0 kgf·m
145 ~ 166 lbf·ft
166.7 ~ 196.1 N·m
17.0 ~ 20.0 kgf·m
123 ~ 144 lbf·ft
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft

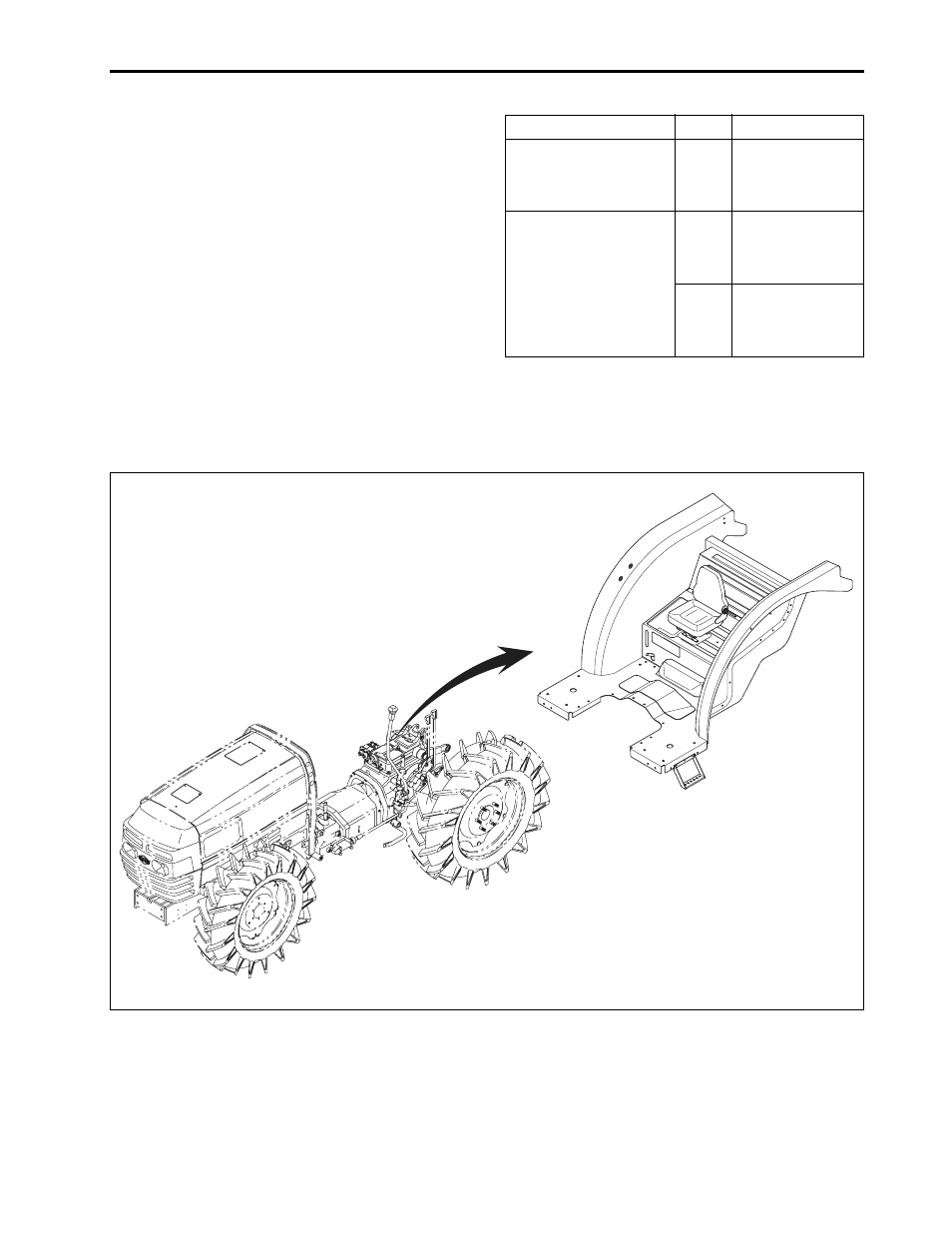

B. SECOND STAGE
1. Disassembly fender and stepladder assembly in a
whole.
(When reassembling)
