CHAPTER 9 8354/8404
9-30
D615-W02 May-2003

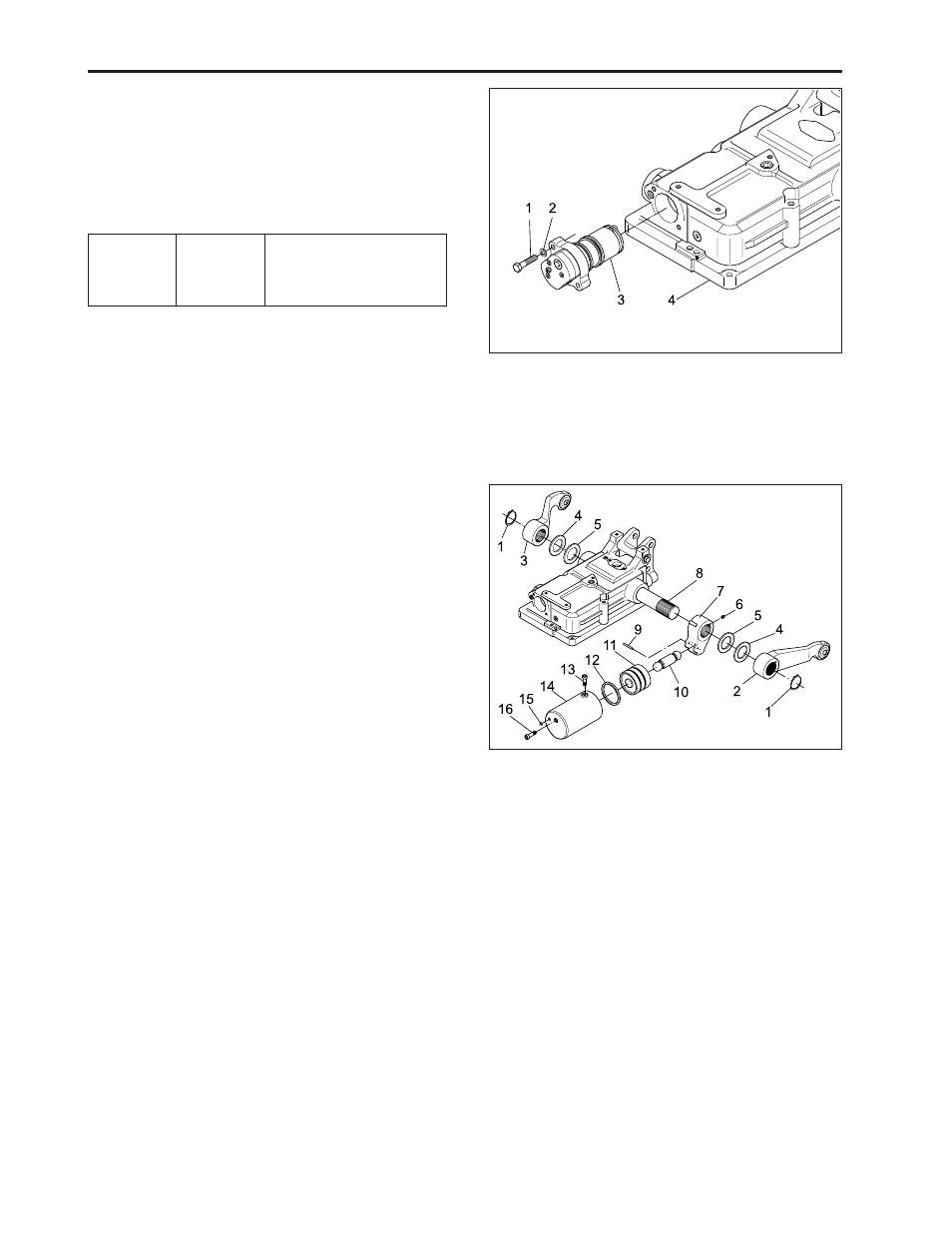

615W934A
(1) Bolt
(2) Lock Washer
(3) Control Valve Assembly
(4) Power Lift Body (Hydraulic Cylinder Block)
d. Control Valve
1. Disengage the control valve attaching bolt (1).
2. Detach control valve (3) carefully.
(When reassembling)
Make sure O-ring not damage.
Tightening
torque
23.6 ~ 27.4 N·m
2.4 ~ 2.8 kgf·m
17.4 ~ 20.2 lbf·ft
Attaching
bolt
e . Lift Arm, Hydraulic Cylinder Arm,
Hydraulic Arm Shaft
1. Loosen the cylinder attaching screw (13, 16) and
crank attaching screw (6).
2. Disengage snap ring (1) and detach the hydraulic
arm shaft and elevating arm, tapping on it using a
urethane hammer.
3. Remove hydraulic cylinder (14), piston (11), con-
necting rod (10) and crank (7).
(1) Snap Ring
(9) Pin
(2) Lift Arm (Left)
(10) Connecting Rod
(3) Lift Arm (Right)
(11) Piston
(4) Washer
(12) Seal
(5) Seal
(13) Screw
(6) Screw
(14) Cylinder
(7) Crank
(15) O-Ring
(8) Shaft
(16) Screw
615W935A
