CHAPTER 5 8354/8404
5-6
D615-W02 May-2003
615W504A
615W505A

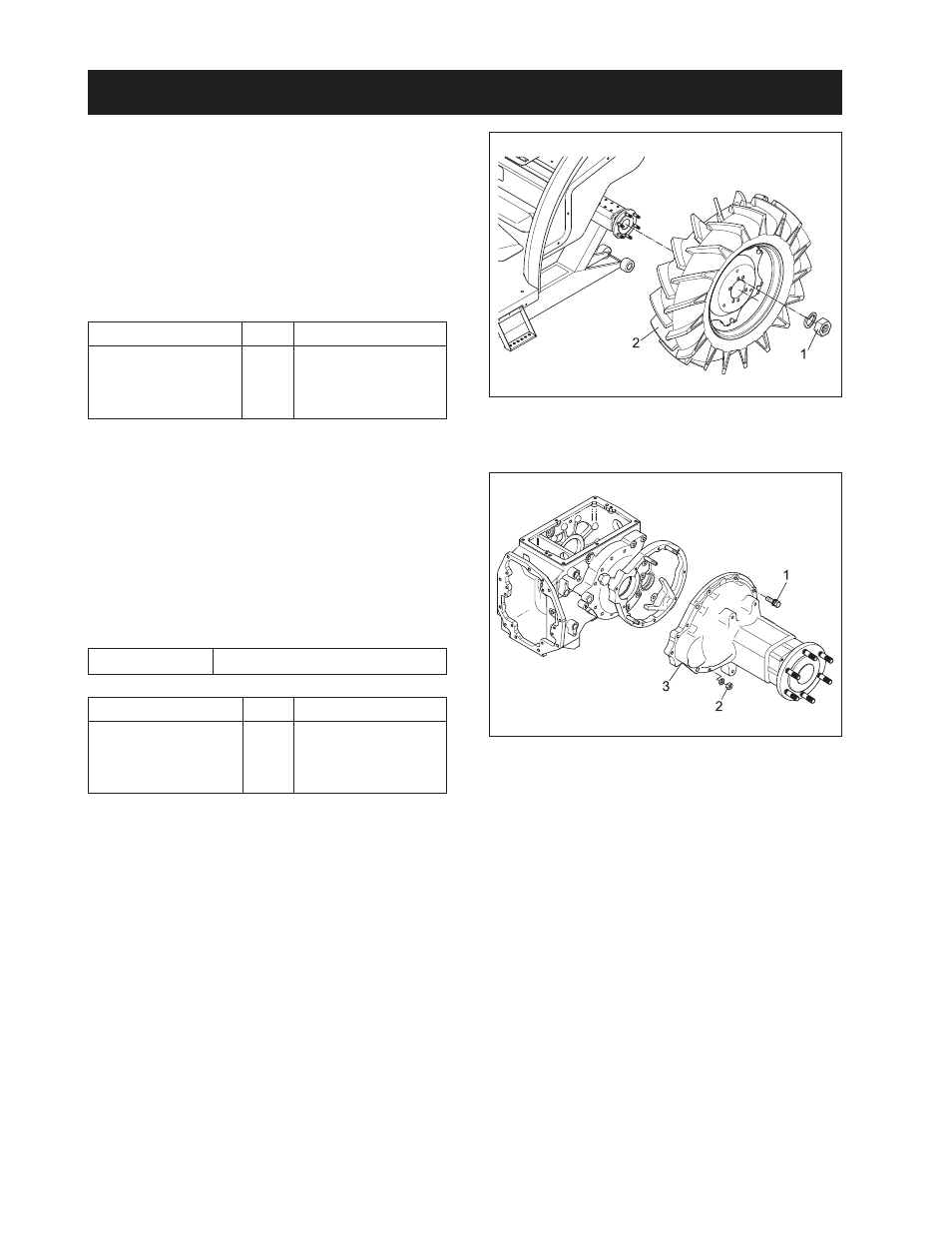

4.1 DISCONNECTION OF REAR AXLE
GROUP
A. First Stage (Disconnection of Rear Wheel)
1. Support the transmission case with a hydraulic jack
to raise tire the tires from the ground.
2. Loosen the wheel lug nuts and disconnect the tires
from axle.
(When reassembling)
•
Tighten the wheel lug nuts firmly in a diagonal
sequence.
B. Second Stage (Disconnection of Rear Axle
Case)
1. Loosen bolt (1) and nut (2) and disconnect rear axle
case (3) in assembly.
(When reassembling)
•
Wipe out oil or foreign matters from the contacted
surface between brake case and rear axle case and
apply with sealing agent.
Sect.
Spec.
Tightening torque
Rear wheel
tightening nut
M16
260.8 ~ 303.8 N·m
26.6 ~ 31.0 kgf·m
192.3 ~ 224.2 lbf·ft
Sect.
Spec.
Tightening torque
Tightening bolt, nut
M10
Sealing agent
Three bond 1208D or equivalent
48.1 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
(1) Bolt
(3) Rear Axle Case
(2) Nut
(1) Nut
(2) Wheel
4. DISASSEMBLY, ASSEMBLY
