Page 177
BRAKE
6-3
D615-W02 May-2003
•
For the left and right running brake, an independent mechanical wet disc brake is used and operated through brake pedal
by mechanical linkage.
•
It enables the parking brake when parking. If brake pedal is locked with the parking brake lever pulled up, it keeps the
brakes locked.
•
Brake disc of wet disc type soaked in oil has more durability and braking force than an inside expandable dry brake type.

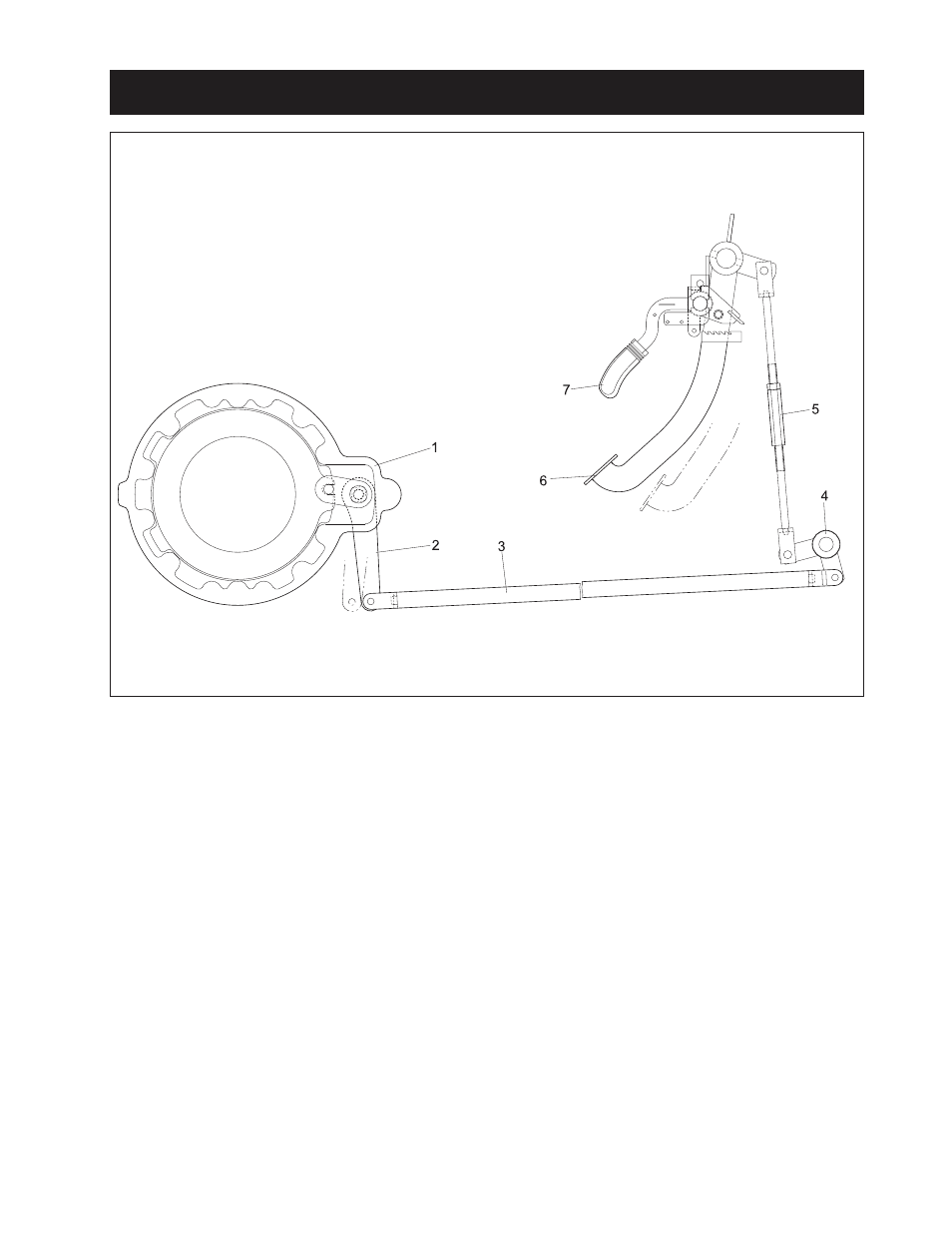

(1) Brake Case
(2) Brake Cam Lever
(3) Brake Rod
(4) Brake Lever
1. STRUCTURE
(5) Turn Buckle
(6) Brake Pedal
615W601A
(7) Parking Brake Lever
