Cub Cadet 8404 User Manual
Page 81
ENGINE SYSTEM
2-59
D615-W02 May-2003
615W2C3A
615W2C4A

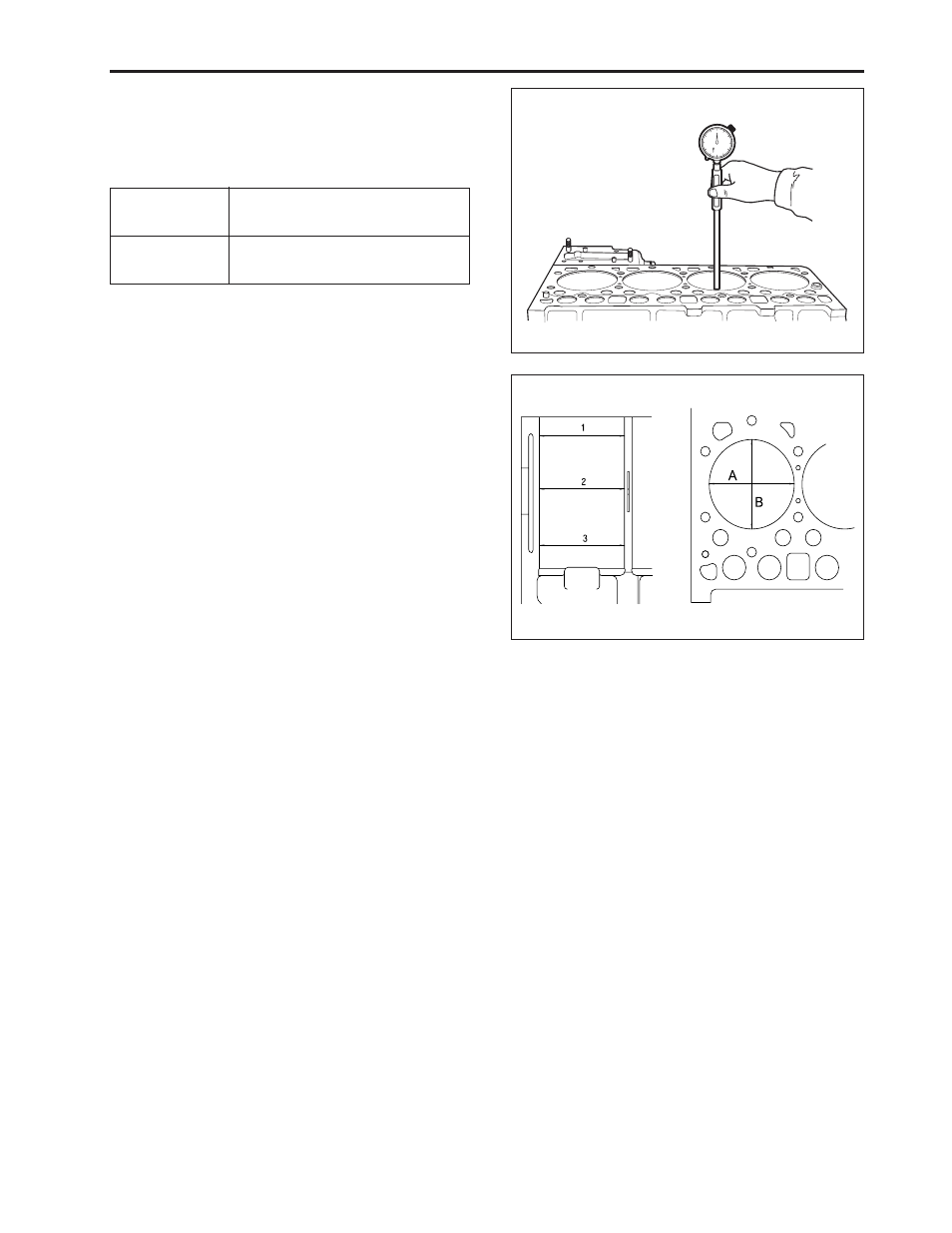

5) Cylinder bore
(A) Cylinder bore diameter
1. Measure the cylinder liner I.D. at sit positions shown
in the figure to find the maximum wear.
4A200B
3A165D
83.000 ~ 83.022 mm
3.2677 ~ 3.269 in.
87.000 ~ 87.022 mm
3.425 ~ 3.4261 in.
(A) Axial Direction
(B) Transverse Direction
1,2,3 Measuring Points
