Installing the Instrument and Plug-in Cards PR 5230 Instrument Manual
EN-86 Sartorius

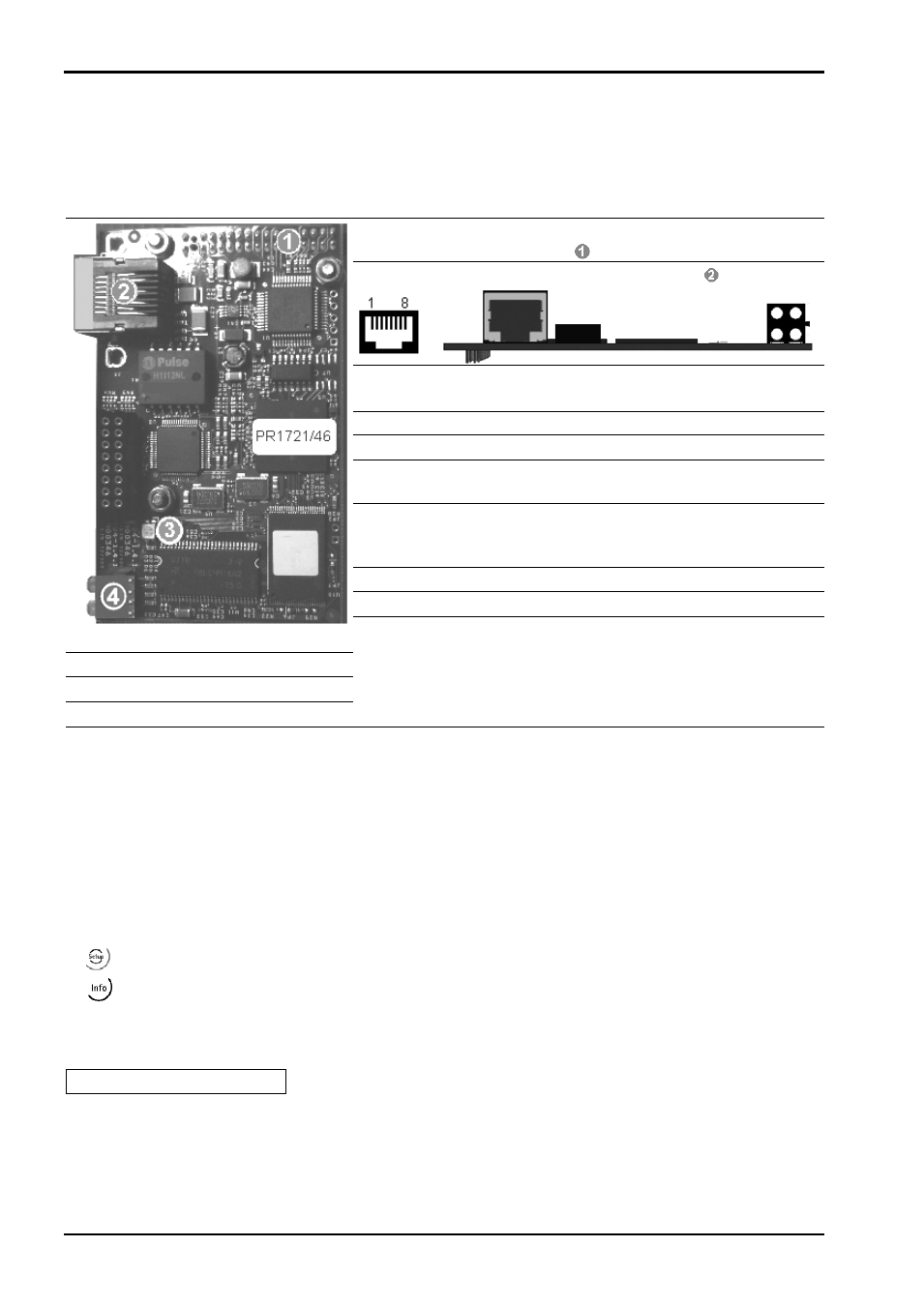

4.4.8 PR 1721/46 ProfiNet I/O Interface
The ProfiNet I/O interface PR 1721/46 is a plug-in card for mounting in slot 2, see Chapter 4.4.1. The card is
fitted with a standard RJ
- 45 socket for network connection and contains a powerful UDP/IP connecting
circuitry with transfer rates of 10 and 100 Mbits/s.
Internal connection 34- pin connector on flat cable for
slot 2
External connection RJ-45 connecting socket
Transfer rate 10 Mbit/sec and 100 Mbit/sec
Autodetection (10/100, HalfDX/FullDX)
Connection mode Network
Protocol ProfiNet I/O
Configuration XML file
‚GSDML-xxx-Sartorius-PR5230-xxx.xml’
Cable Twisted pairs, screened
e.g. patch cable CAT5
Autolink (straight or crossover)
Cable impedance 150 ¥
Cable length to HUB Max. 115 m
Certificate ProfiBus Nutzerorganisation e.V.
for HMS Industrial Networks AB
Certificate No: Z10006
Report: PN005-1, 12.02.2007.
Potential isolation Yes
Dimens. (LxWxH) 87 x 55 x 15mm
Weight
125 g
Note:
The IP-Address and the Subnet-Mask are set at Fieldbus parameter (see also Chapter 5.6.5 and 9).
The XML file is stored on the CD (directory ‘Fieldbus’ of the according instrument) supplied with
the unit. The current file is also available for download via the Internet:
http://www.sartorius-mechatronics.com [Downloads].
4.4.8.1 Status Display
Requirements
In -[Display items] the items are configured, see Chapter 5.6.7.
In -[HW-Slots] PR 1721/46 is selected.
Display
1 2 3 4
LED --- --- --- ---
