Rice Lake 480 Panel Mount Option User Manual
Panel mount option

480/482 Legend Series Digital Weight Indicator
Panel Mount Option
PN 151099
1
2
3
5
4

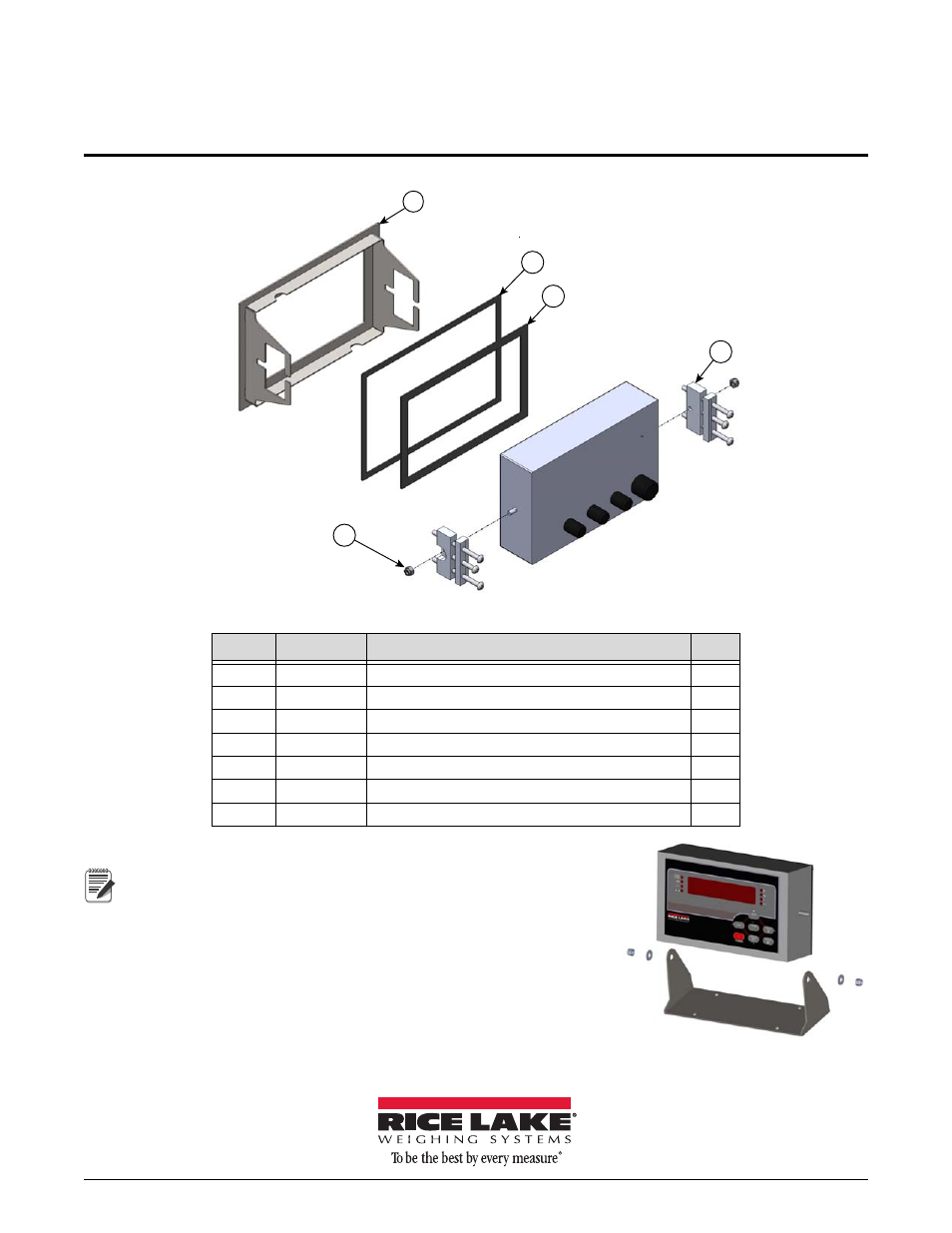

Figure 1. Panel Mount Kit PN (151099)
Item No.
Part No.
Description
Qty
1
158033
Panel Mount Bezel Bracket without gasket
1
2
52946
Gasket, Exterior Panel Mount
1
3
52947
Gasket, Interior Panel Mount
1
4
162913
Lock nut, M6 x 1
2
5
166164
Clamp Assembly
2
NS
53412
Template
1
NS
158130
Manual
1
Use the following procedure to install the panel mount option:
Figure 2. Remove Tilt Stand if Installed
If the seal is installed properly, it should be dust tight. However it is
not designed for washdown applications.
Note
1. Use the cutout template to make a 9.8" W x 6.3" H (249 mm W x
160 mm H) cutout in the panel. Ensure cutout is far enough from
panel edge to accommodate bezel: panel mount bezel dimensions
are 10.5" W x 7.0" H (267 mm W x 178 mm H).
2. If attached, remove the tilt stand from the indicator enclosure.
158130 Rev B
December 01, 2014
