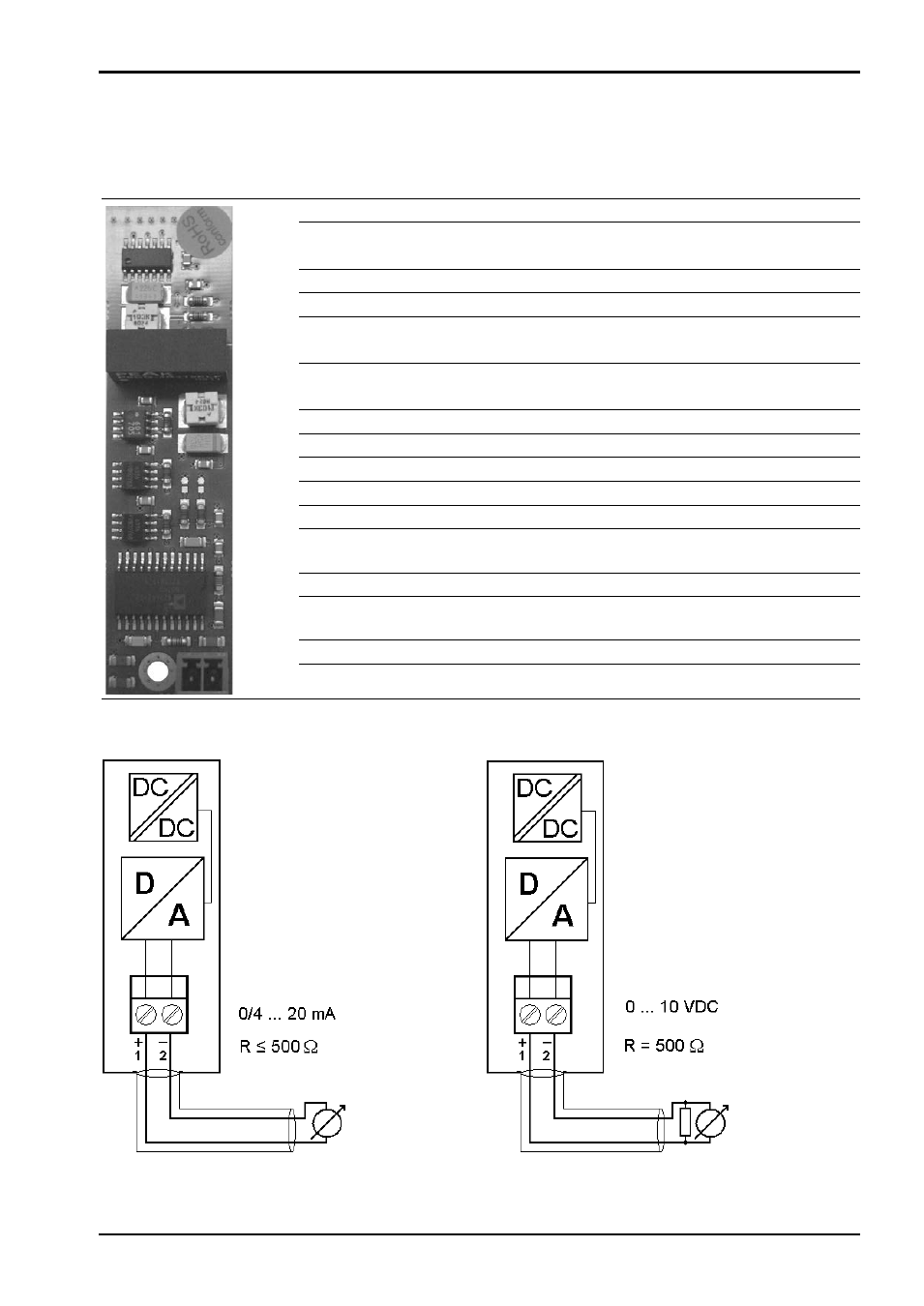

4.4.2 PR 5230/06 Analog Output Board
The analog output board is a plug-in card for installation in Slot 1. It has a 2-pole screw terminal for an active
analog output.
Internal connection 20-pin flat plug
Number of channels 1 active current output: 20 mA,
10 V output voltage via external 500 ¥ resistor
Output function Gross/Net/display tracking, configurable
Output range 0/4…20 mA, configurable
Resolution 16 bit binary,
20.000 internal digits @ 20 mA
Linearity error @ 0 – 20 mA: 0.04 %
@ 4 – 20 mA: 0.02 %
Temperature effect <100 ppm/K
Zero error 0.05 %
Max. error <0.1 %
Load 0…500 ¥ max.
Potential isolation yes
Protected against short
circuits
yes
External connection 2- pin plug-in terminal block
Accessories Mounting screws M3 x 12 mm,
spacer ring 2 mm thick
Dimensions (LxWxH) 85 x 22 x 14 mm
Weight 15 g
Current Output
Voltage Output
Current is supplied directly via the terminals. The voltage corresponds to the drop across the
external 500 ¥ resistor.
