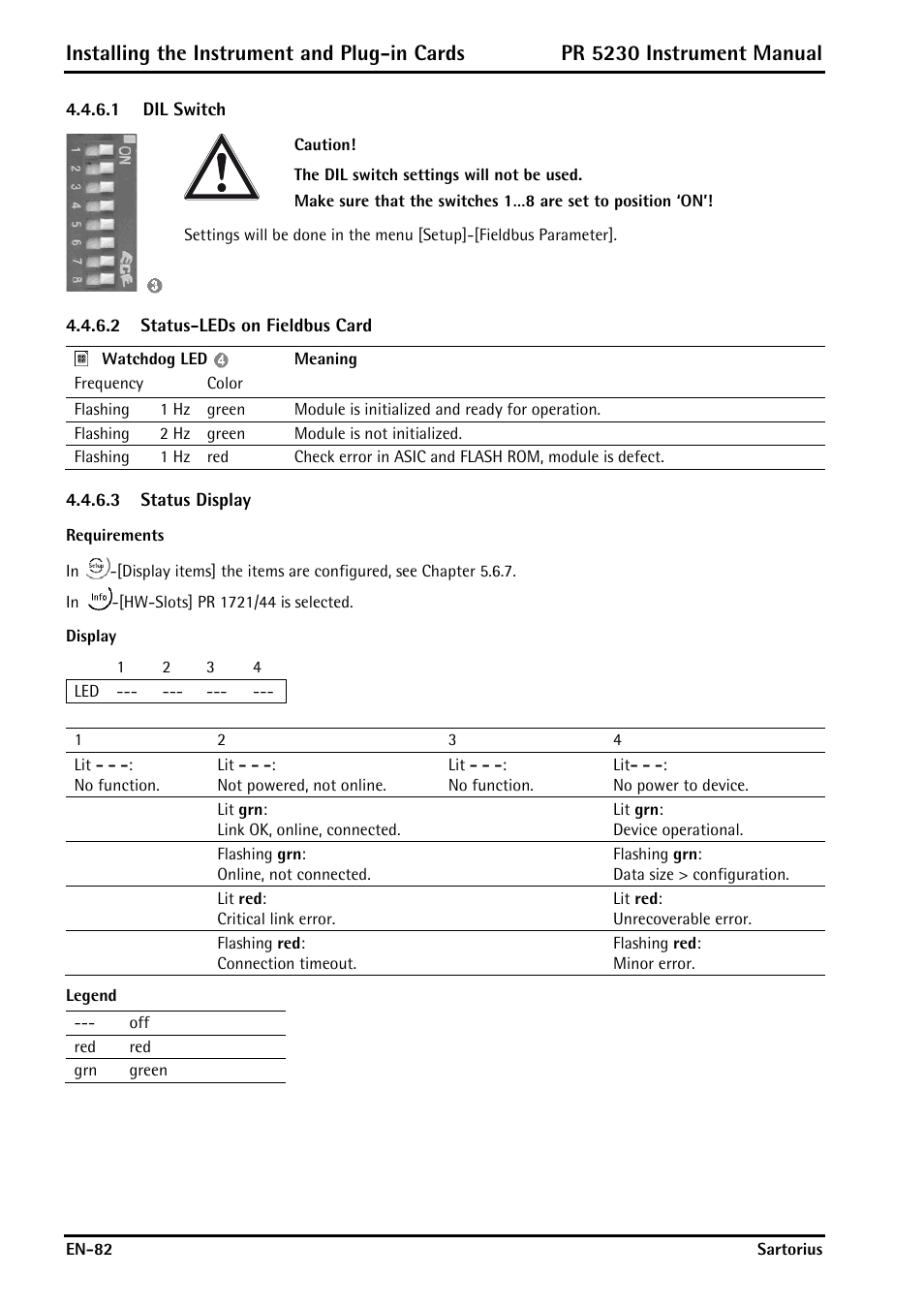

1 dil switch, 2 status-leds on fieldbus card, 3 status display – Rice Lake PR5230 Fieldbus Transmitter User Manual
Page 82: Display, Legend, Installing the instrument and plug-in cards, Pr 5230 instrument manual
