Page 295

Publication 1757-UM006A-EN-P May 2002
1788-CN2FF Installation Example F-47
The actual pressure of about .04 psi (in this case) can now be
read directly.
3. Squeeze the bulb (or place your thumb over the connector) on
the transmitter.
4. Verify the pressure reading increases and follows the pressure
displayed on the transmitter itself.
Messages to PLC-5s and
CLX to Get Data from CN2FF
You can use a ControlNet message instruction to get any of the data
that is stored in the different tables that list the various ControlNet
objects.

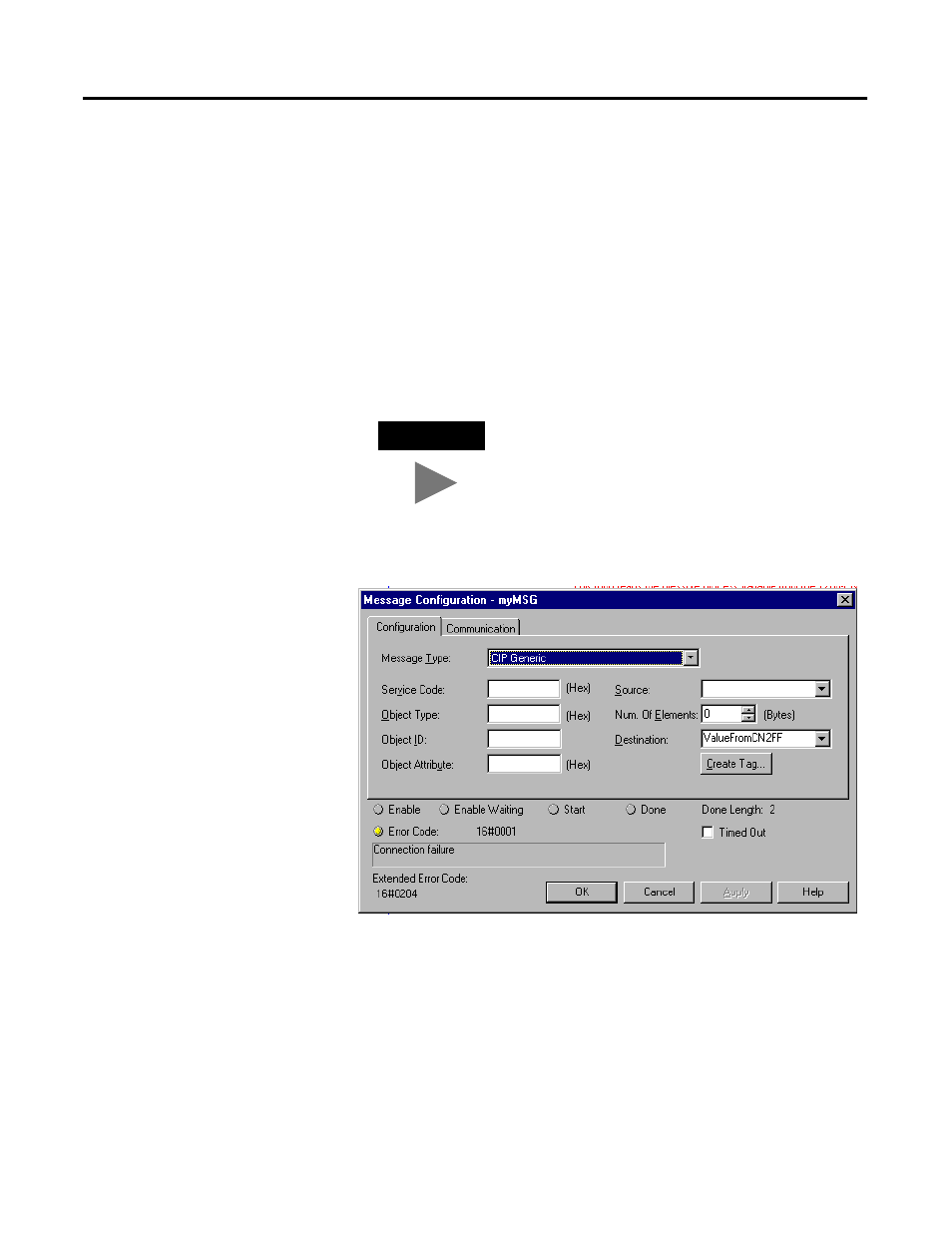

For a CLX to retrieve data, setup the message as shown below.
For a PLC-5 to retrieve data, setup the message as shown in Figure F.7.
TIP
The best way to get data from a CN2FF into a
controller is to have it produced by the CN2FF.
This requires that you use RSNetworx to
schedule the data. It is much more efficient than
using message commands.
