Publication 1757-UM006A-EN-P - May 2002
4-40 Configurating the 1757-FIM
4. Leave the Execution Order in CM at the default of 10 (the
smaller the number the sooner the block executes within the CM
cycle).
5. Leave the Tag Description field at the default of
CM101.AI_LEVEL (CM name plus block name).

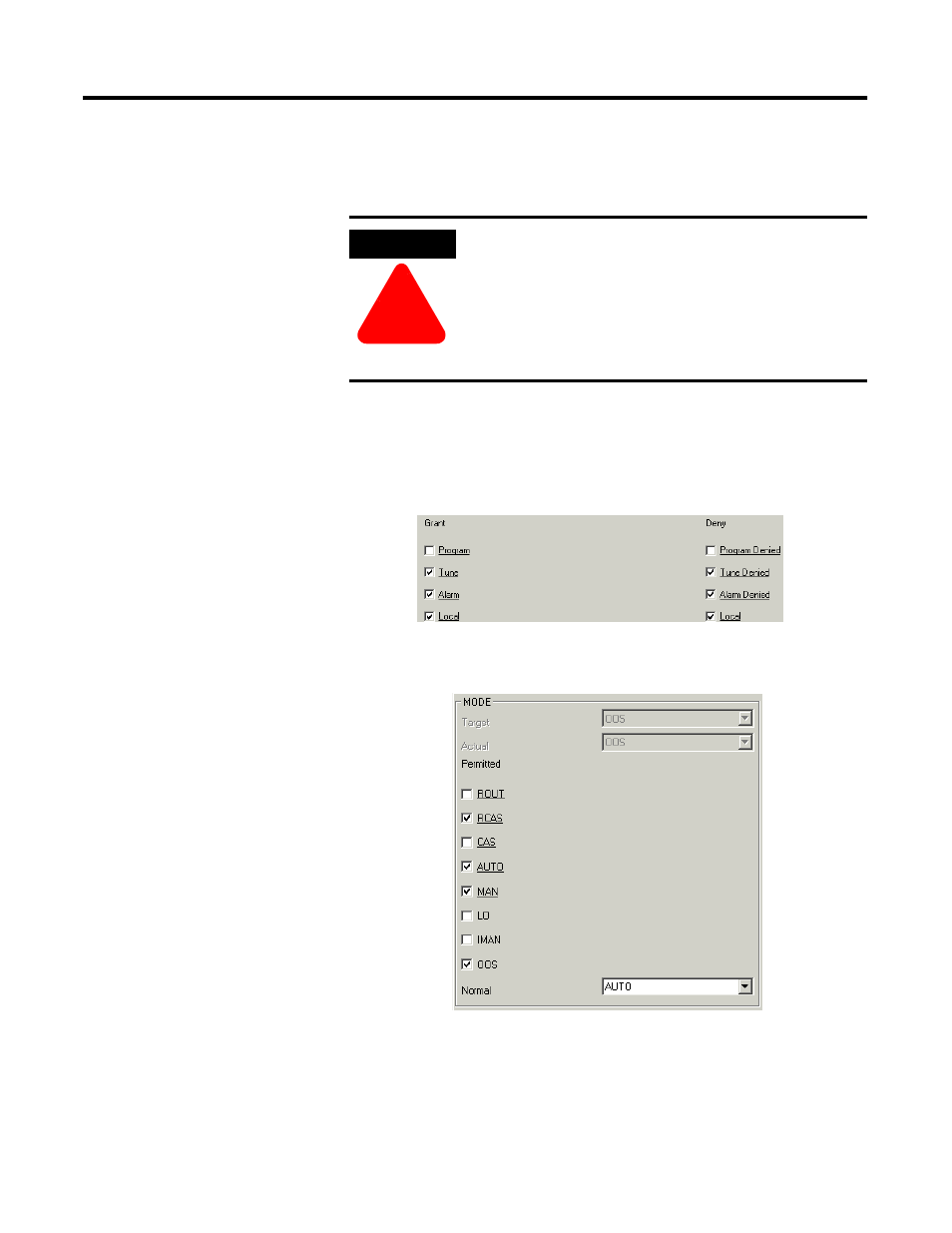

6. In the Grant and Deny fields, click the desired checkboxes to
select the functions you want to Grant/Deny an operator.
7. Scroll down to the Mode section.
8. Click the desired checkboxes to select the modes you want to
permit.
9. Click OK to clock the window and save the configuration.
ATTENTION
!
The Execution Order in CM parameter defines the
order of execution and publication for all blocks
contained in the CM. For contained fieldbus blocks,
this parameter combines with the CM’s Execution
Order in Link parameter to determine how the
fieldbus block participates in the Link Active
Schedule.
