Configurating the 1757-FIM 4-45

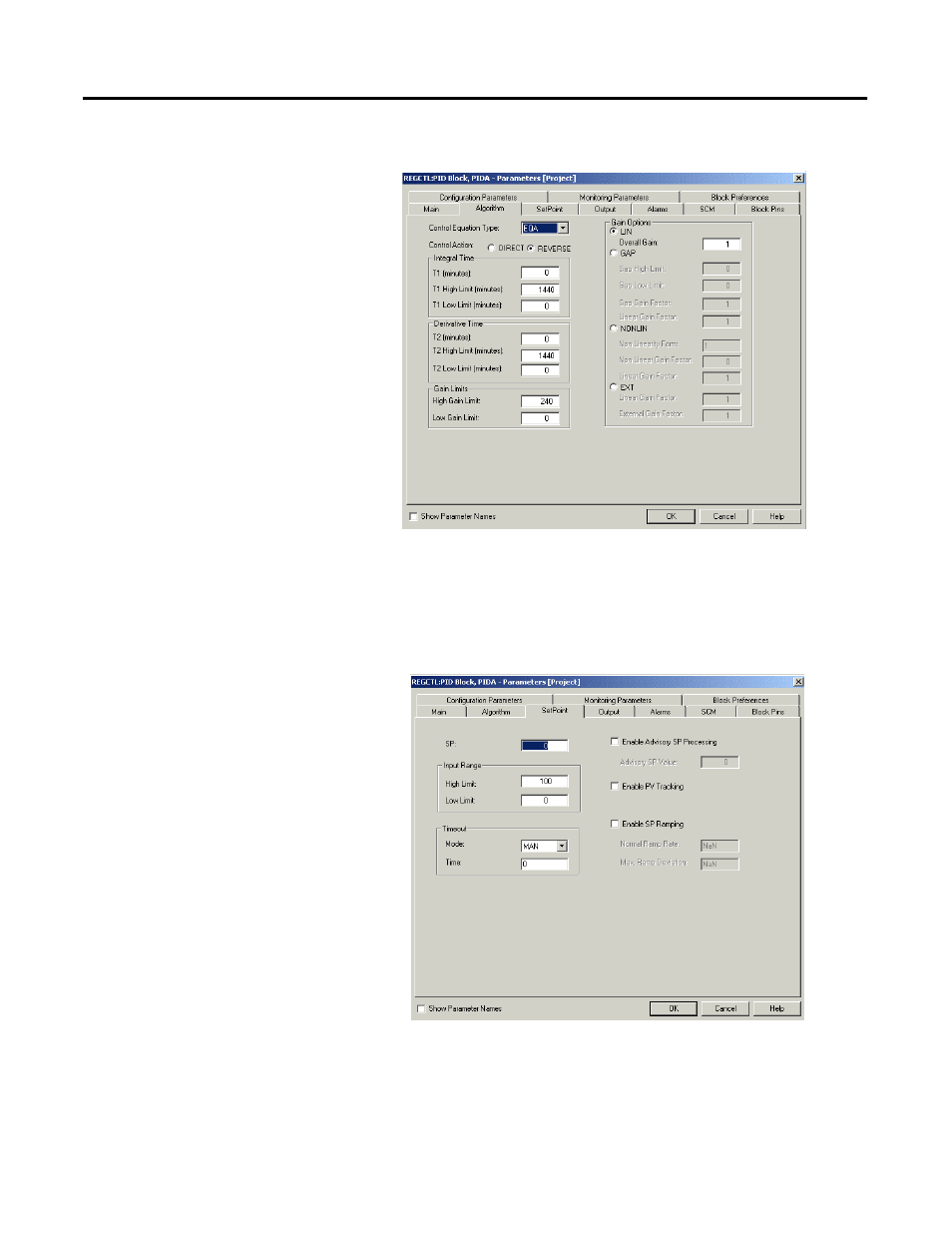

7. Click the Algorithm tab.

8. Leave the Control Equation Type field at the default of EQA.

9. In the Control Action field, select DIRECT.

10. Click the Set Point tab.
