Control mode interaction, Fieldbus block modes versus processlogix modes, Control mode interaction -19 – Rockwell Automation PLC-5 Fieldbus Solutions for Integrated Architecture User Manual User Manual

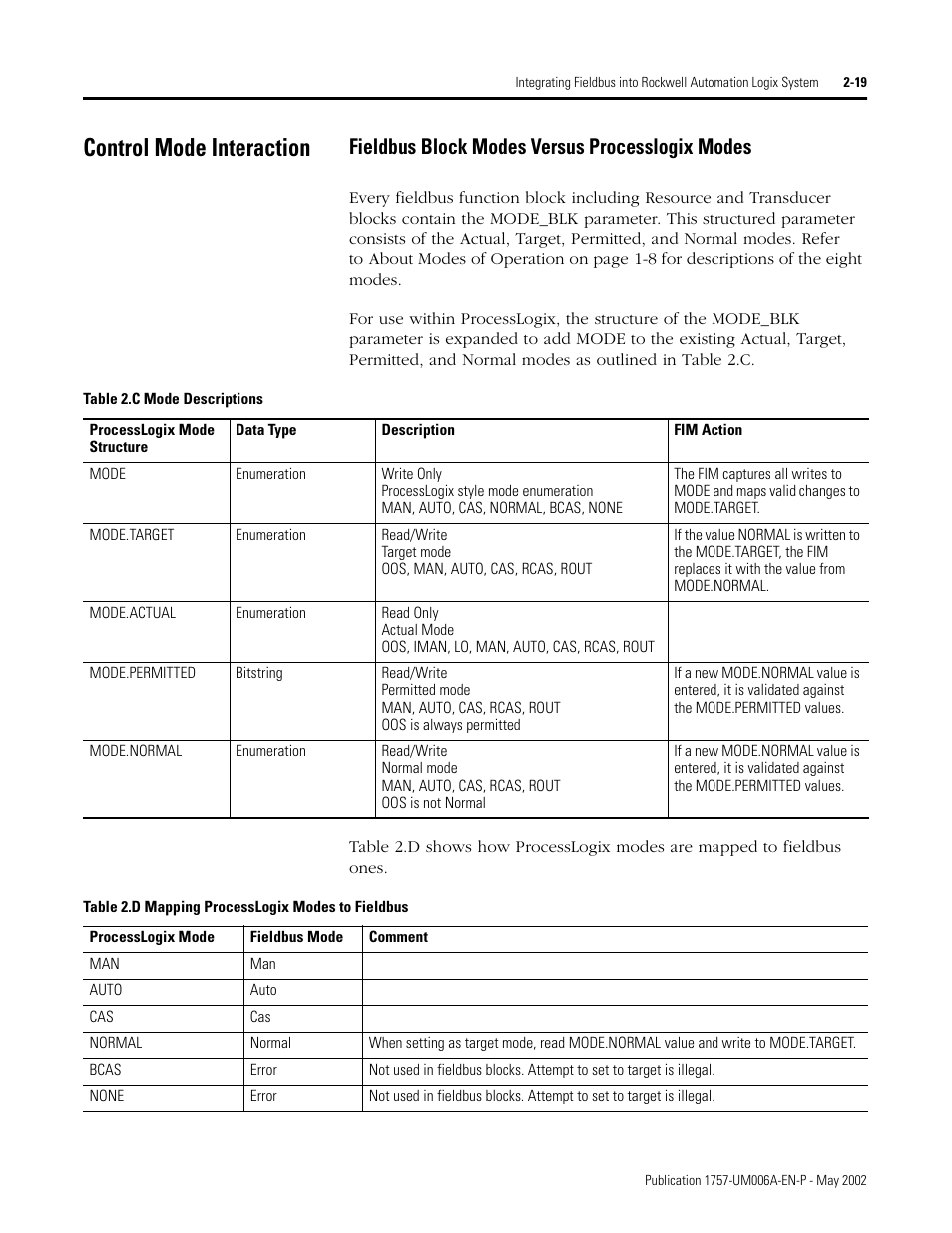

Page 63: Fieldbus block modes versus processlogix modes -19
