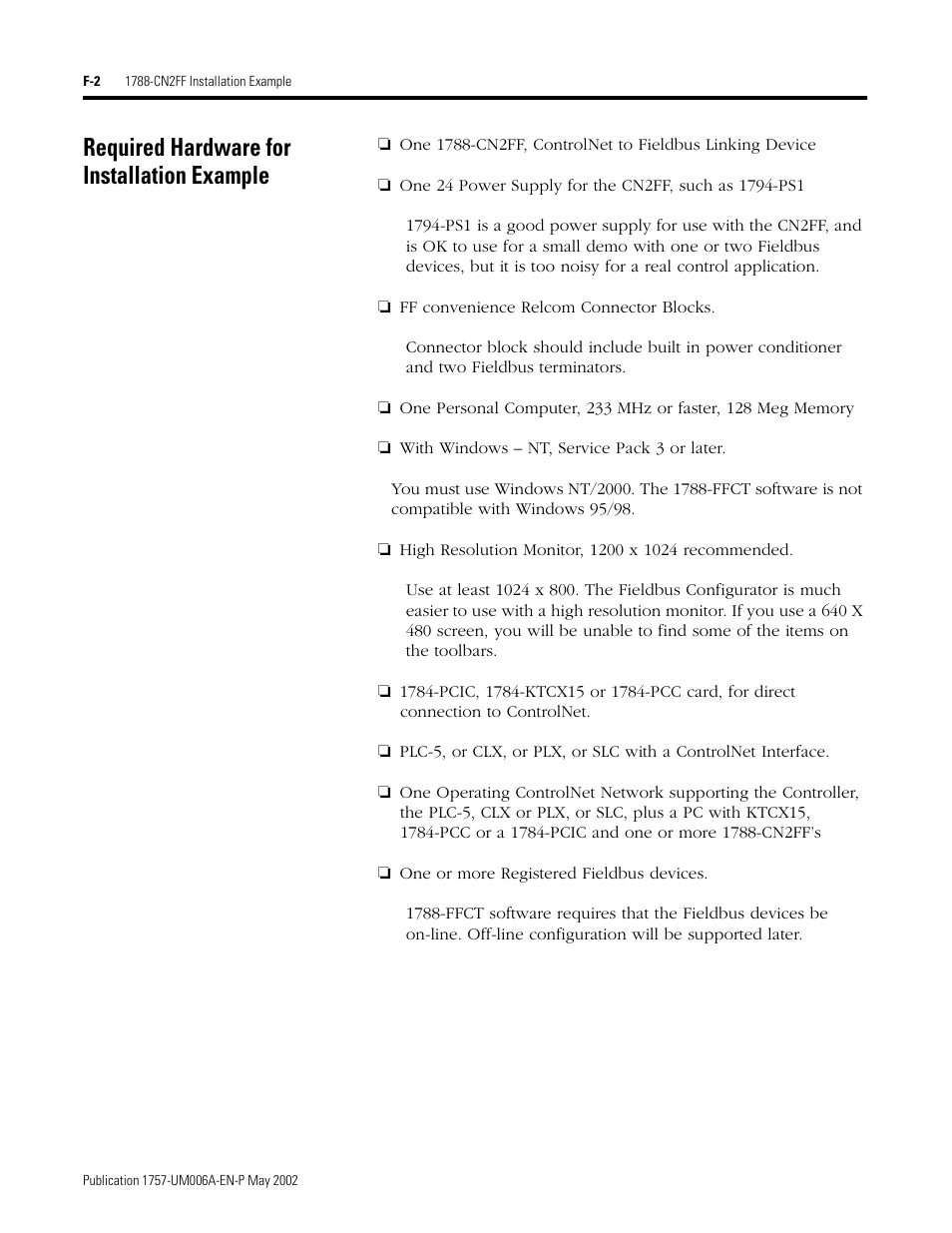

Required hardware for installation example – Rockwell Automation PLC-5 Fieldbus Solutions for Integrated Architecture User Manual User Manual
Page 250
This manual is related to the following products:
