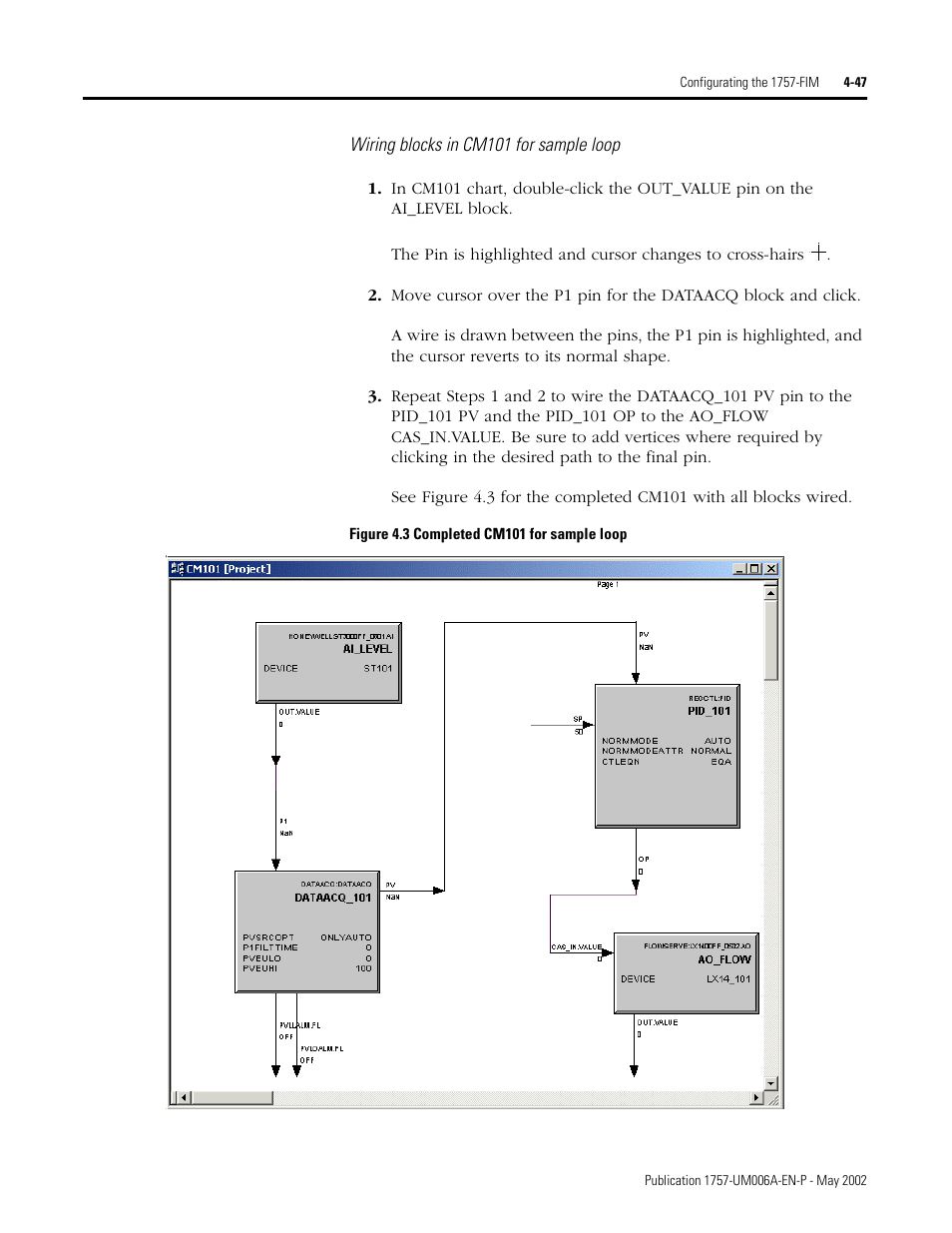

Wiring blocks in cm101 for sample loop – Rockwell Automation PLC-5 Fieldbus Solutions for Integrated Architecture User Manual User Manual
Page 133
