94 Rockwell Automation Publication 20P-UM001K-EN-P - July 2014
Chapter 2 Drive Start Up

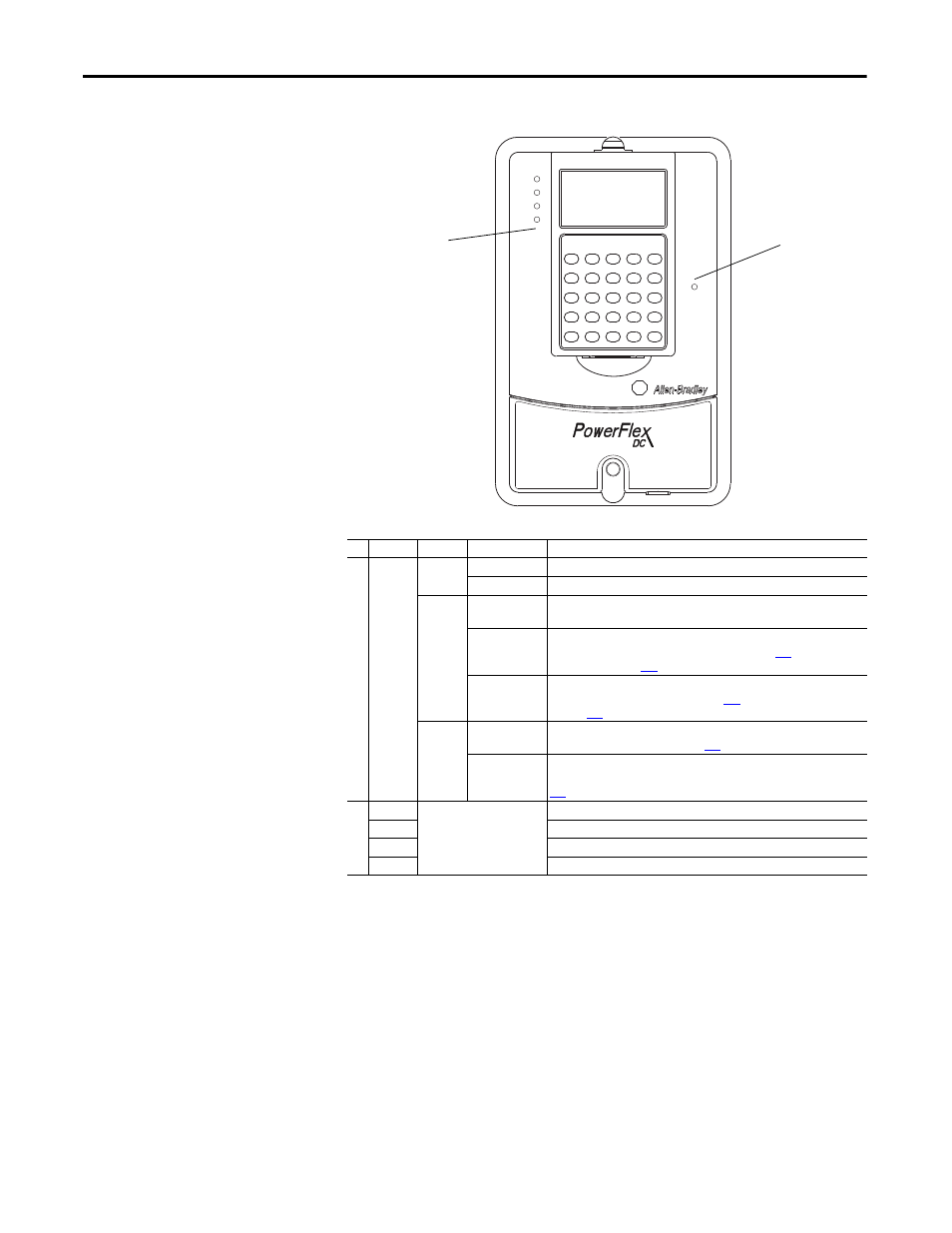

Figure 63 - Drive Status Indicators
# Name Color State Description
1 STS
(Status)
Green Flashing Drive ready, but not running and no faults are present.
Steady Drive running, no faults are present.
Yellow Flashing, Drive
Stopped A condition exists that is preventing the drive from starting. Check
parameters 1403 [Start Inhibits] and/or 1380 [Drive Alarm 1].
Flashing, Drive
Running An intermittent type 1 alarm condition is occurring. Check parameter
1380 [Drive Alarm 1]. See Fault Descriptions on page
218 and/or Alarm
Descriptions on page 224 .
Steady,
Drive Running A continuous type 1 alarm condition exists. Check parameter 1380 [Drive
Alarm 1]. See Fault Descriptions on page
218 and/or Alarm Descriptions
on page 224 .
Red Flashing A fault has occurred. Check [Fault x Code] or view the Fault Queue on the
HIM. See Fault Descriptions on page
218 .
Steady A non-resettable, non-configurable fault has occurred. Check [Fault x
Code] or view the Fault Queue on the HIM. See Fault Descriptions on page
218 .
2 PORT Refer to the Communication
Adapter User Manual. Status of DPI port internal communications (if present).
MOD Status of communications module (when installed).
NET A Status of network (if connected).
NET B Status of secondary network (if connected).
STS
PORT
MOD
NET A
NET B
2 1
