12
Rockwell Automation Publication 20P-UM001K-EN-P - July 2014
Preface
Drive Nameplate Data
The PowerFlex DC drive contains a data nameplate label on the side of each
drive. This nameplate identifies the specific model number, applicable AC input
power, and DC output power data. Include this information when
communicating with Rockwell Automation personnel about this product.
Drive Series Letter
Series B drives are identified as such on the data nameplate label. The drive series
letter is on the top, right side of the label.
Drive Frame Sizes
Similar PowerFlex DC drive ratings are grouped into frame sizes to make
ordering spare parts and drive dimensions simpler. The drive frame size is listed
just above the serial number on the data nameplate label. See the Standard Drive
Catalog Number Explanation on page
for a list of drive catalog numbers and
their respective frame sizes.
Drive Firmware Version
The original firmware version of the drive as shipped from the factory appears on
the data nameplate label just above the certifications. If the firmware version has
been upgraded since the drive was shipped, you can view the current version on
the HIM (if installed). See Diagnostics Menu on page
for details.
Drive Specifications
For drive specification information, see the PowerFlex Digital DC Drive,
Technical Data

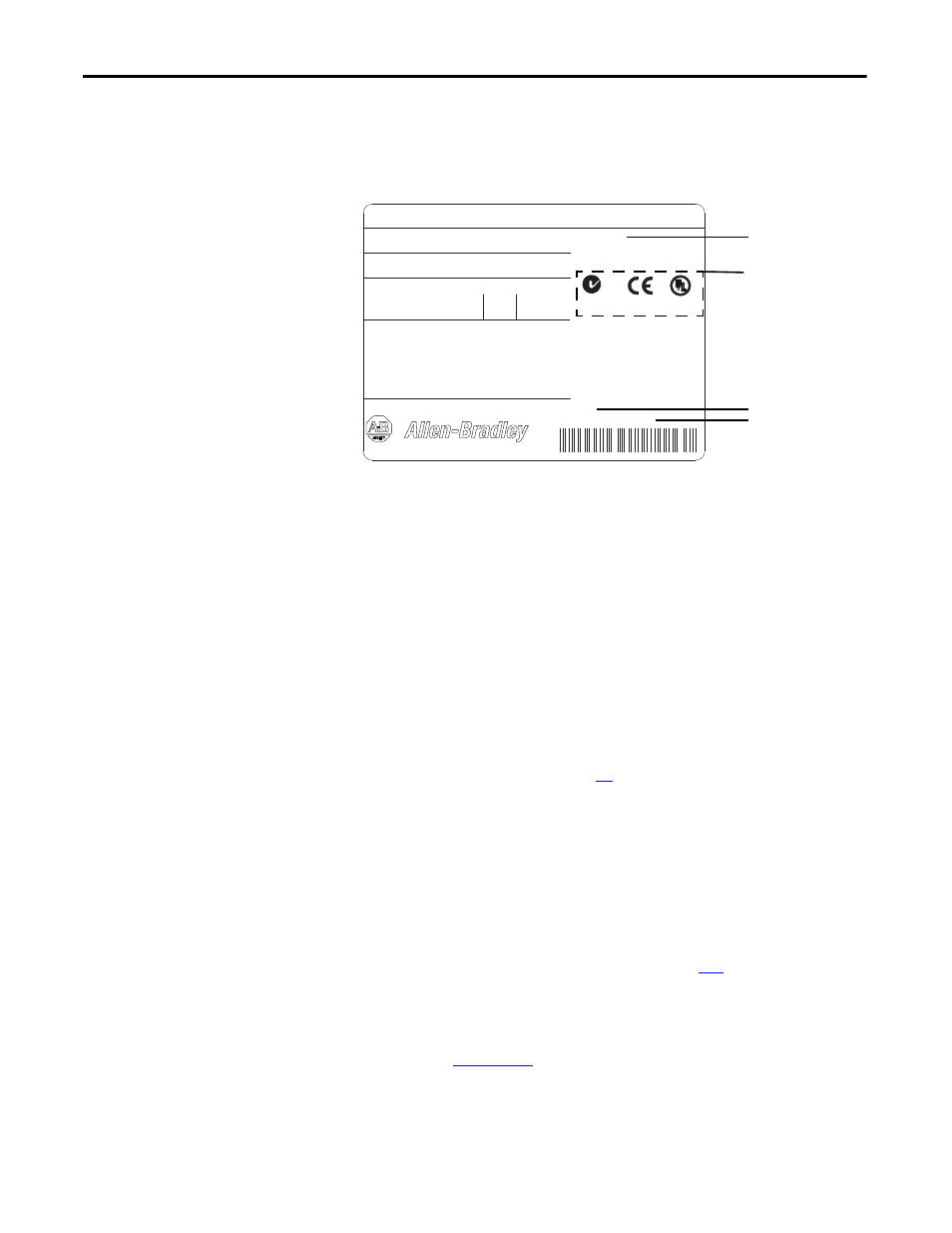

EXAMPLE ONL
Y
20P41AD4P1RA0NNN
Made in Italy
Output: 500VDC 4.1A REGEN 2.0HP
1 Min Overload Amps
3 Sec Overload Amps
MFD. in 2XXX on MMM DD
Cat No.
Input: 460VAC 50/60 Hz 3.3A 3 Phase
UL Type OPEN/IP20
Original Firmware V. 1.001
Serial Number: A23E0042
Series: A
Frame: A
6.2
8.2
I/O: 24VDC (Standard)
Ind. Cont.
Listed
C
R
US
DC Field:
Input: 460VAC 50/60 Hz 10A max. 1 Phase
Output: 360VDC 10A max.
Regulator Power: 115/230VAC 50/60 Hz 1.0/0.5A 1 Phase
Eq. 31KF
N223
Note: Certification
Marks Location.
See the data
nameplate label on
your drive for actual
agency certifications.
Drive frame size
Drive serial number
Drive series letter
