Installation and Wiring
Chapter 1
Frame C and D Armature Fuse Signal Terminals
Terminals 81 and 82 on frame C and D drives are connected to the indicating
switch mounted on each of the internal armature circuit protection fuses. These
terminals can be connected to an external device to provide indication that the
fuses have opened. Alternatively, terminals 81 and 82 can be wired to drive digital
input terminals configured for 64 “Invert Flt” (via Pars 133…144).
Table 25 - Armature Fuse Signal Terminal Designations
Table 26 - Armature Fuse Signal Wire Size and Terminal Specifications

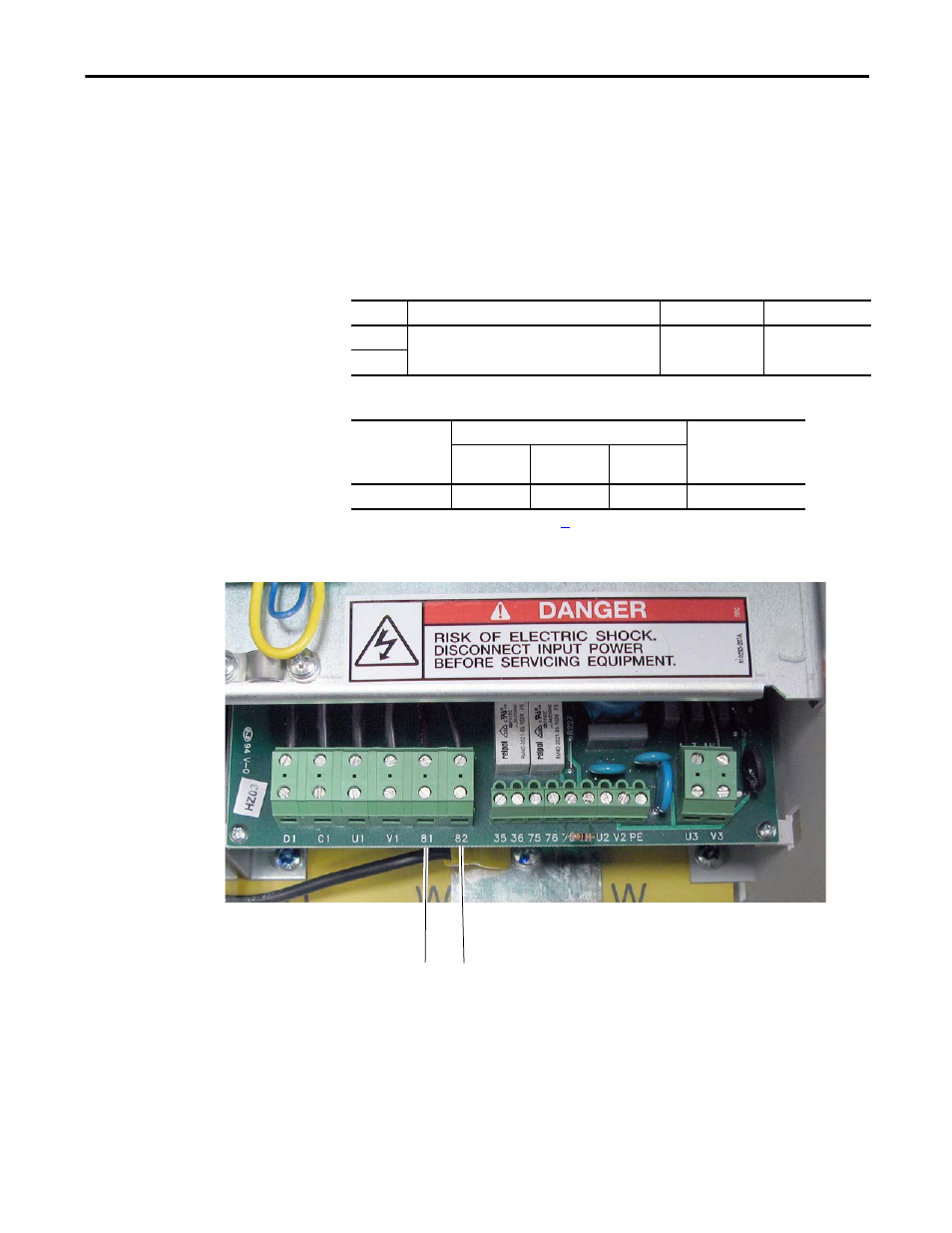

Figure 52 - 230V/460V AC Input Frame C Internal Armature Fuse Signal Terminal Block Location
Terminal
Description
Maximum Voltage
Maximum Current
81
Internal armature fuse intervention signal.
250V AC
1 A
82
Terminals
Wire Size and Type
(1)
(1) See Cable and Wiring Recommendations on page
for more information.
Tightening Torque
N•m (lb•in)
Flexible
(mm
2
)
Multi-core
(mm
2
)
AWG
81,
82
0.14…1.5 0.14…2.5 26…16
0.4
(3.5)
81
82
