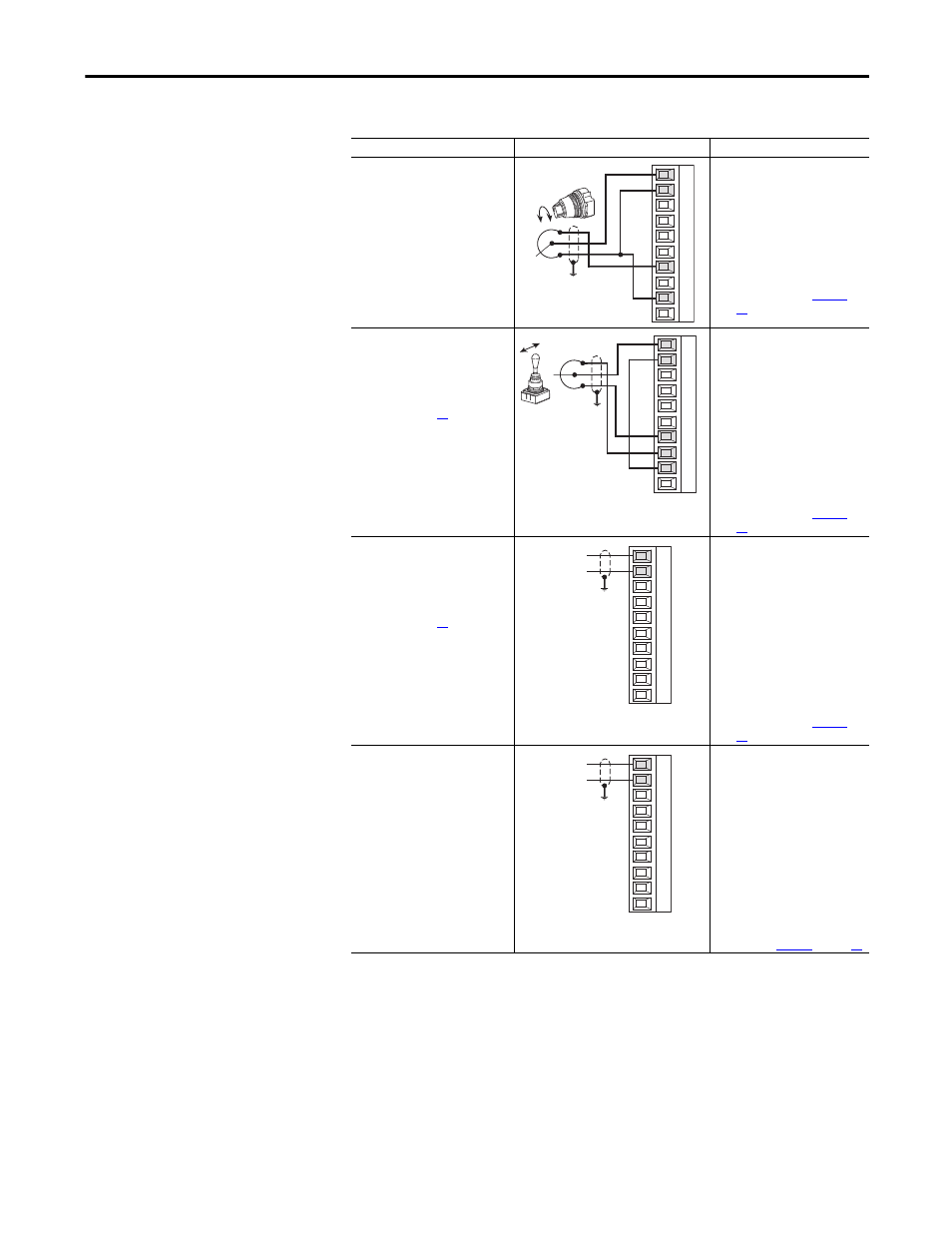

I/O Wiring Examples
Input/Output
Connection Example
Required Parameter Changes
Potentiometer Unipolar Speed
Reference
10k
Ω Pot. Recommended
(2k
Ω Minimum)
• Adjust Scaling:
72 [Anlg In1 Scale] and
73 [Anlg1 Tune Scale]
• View Signal Value:
1404 [Analog In1 Value]
• View Signal Output:
385 [Speed Ref Out]
Note: Verify that DIP switch S9 is set
to “On” (0…10V). See
on
page
Joystick Bipolar Speed
Reference
±10V Input
Important: See the Attention
statement on page
80
for important
bipolar wiring information.
• Set Direction Mode:
1322 [Direction Mode]
= 1 “Bipolar”
• Adjust Scaling:
72 [Anlg In1 Scale] and
73 [Anlg1 Tune Scale]
• View Signal Value:
1404 [Analog In1 Value]
• View Signal Output:
385 [Speed Ref Out]
Note: Verify that DIP switch S9 is set
to “On” (0…10V). See
on
page
Analog Input Bipolar Speed
Reference
±10V Input
Important: See the Attention
statement on page
80
for important
bipolar wiring information.
• Set Direction Mode:
1322 [Direction Mode]
= 1 “Bipolar”
• Adjust Scaling:
72 [Anlg In1 Scale] and
73 [Anlg1 Tune Scale]
• View Signal Value:
1404 [Analog In1 Value]
• View Signal Output:
385 [Speed Ref Out]
Note: Verify that DIP switch S9 is set
to “On” (0…10V). See
on
page
Analog Input Unipolar Speed
Reference
0…+10V Input
or
0…20 mA or 4…20 mA
• Configure for Voltage or Current:
71 [Anlg In1 Config]
• Adjust Scaling:
72 [Anlg In1 Scale] and
73 [Anlg1 Tune Scale]
• View Signal Value:
1404 [Analog In1 Value]
• View Signal Output:
385 [Speed Ref Out]
Note: Verify that DIP switch S9 is set
to “On” for 0…10V operation, or
“Off” for 0…20 mA or 4…20 mA
operation. See
on page
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Common
+
1
2
3
4
5
6
7
8
9
10
Common
+
1
2
3
4
5
6
7
8
9
10
