Page 65: Figure 41

Rockwell Automation Publication 20P-UM001K-EN-P - July 2014
65
Installation and Wiring
Chapter 1

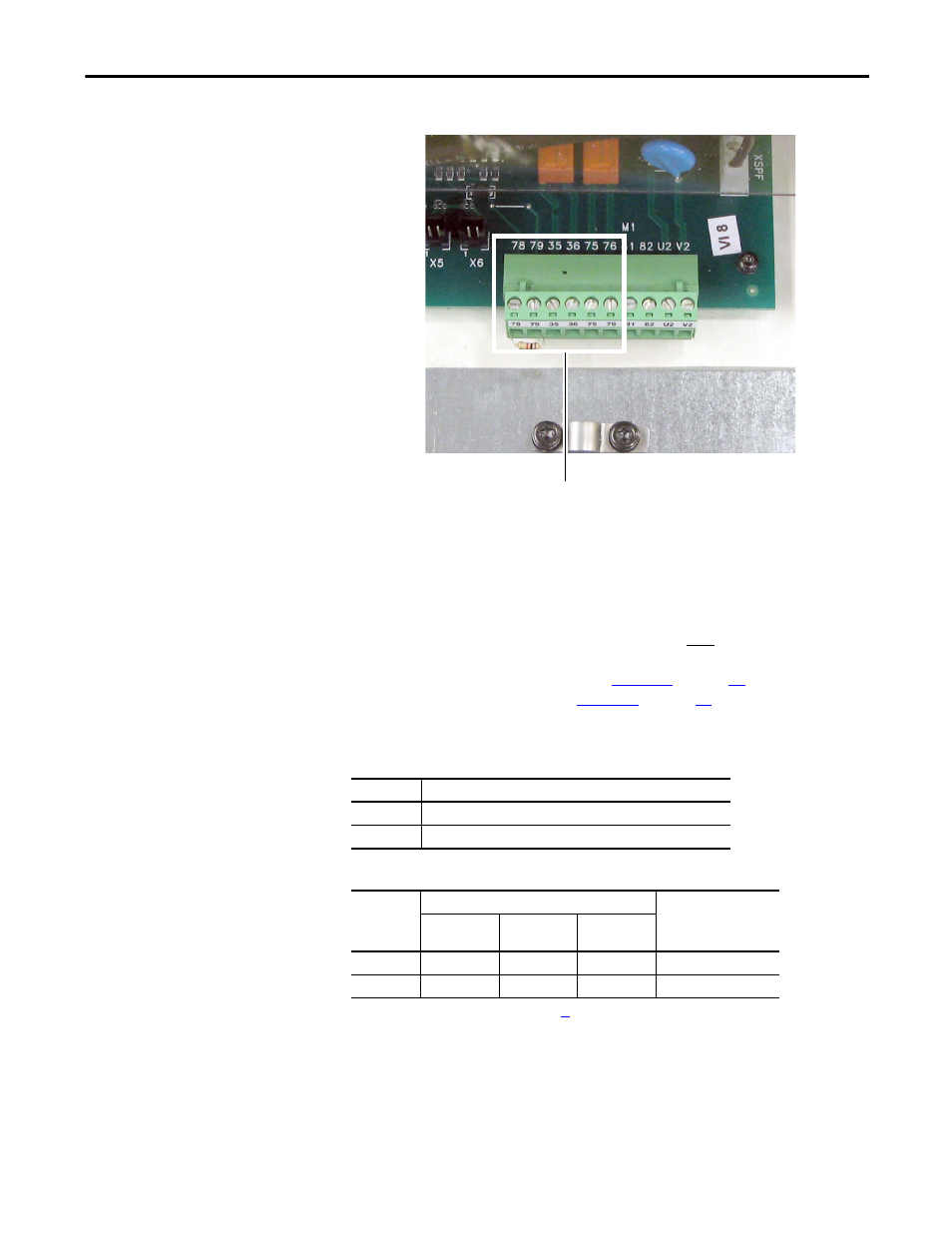

Figure 41 - Frame D Relay and Thermistor/Thermal Switch Terminal Block Locations
Control Circuit Input Power
The control circuit must be powered by a clean, external 230V AC or 115V AC
single phase power supply. For frame B and C drives only, a jumper is required
between terminals SA and SB for 115V AC control input power. For frame B
drive SA-SB terminal block location, see
Figure 47
on page
68
. For frame C drive
SA-SB terminal block location, see
Figure 47
on page
68
.
Note:
If the SA-SB terminal block is not configured for the correct input voltage,
“No Fault” (F0) displays on the HIM, if installed.
Table 20 - Control Circuit Wire Sizes and Terminal Specifications
Terminals
Description
U2, V2
Single phase AC power for the control circuits
PE
Safety ground (on frame C drive terminal blocks only)
Terminals
Wire Size and Type
(1)
(1) See Cable and Wiring Recommendations on page
for more information.
Tightening Torque
N•m (lb•in)
Flexible
(mm
2
)
Multi-core
(mm
2
)
AWG
U2, V2
0.14…1.5
0.14…2.5
26…14
0.5 (4.4)
PE
2.5…10
2.5…10
12…8
2.0 (18.0)
Control pan, to the left of the
HIM cradle.
78 79 35 36 75 76
