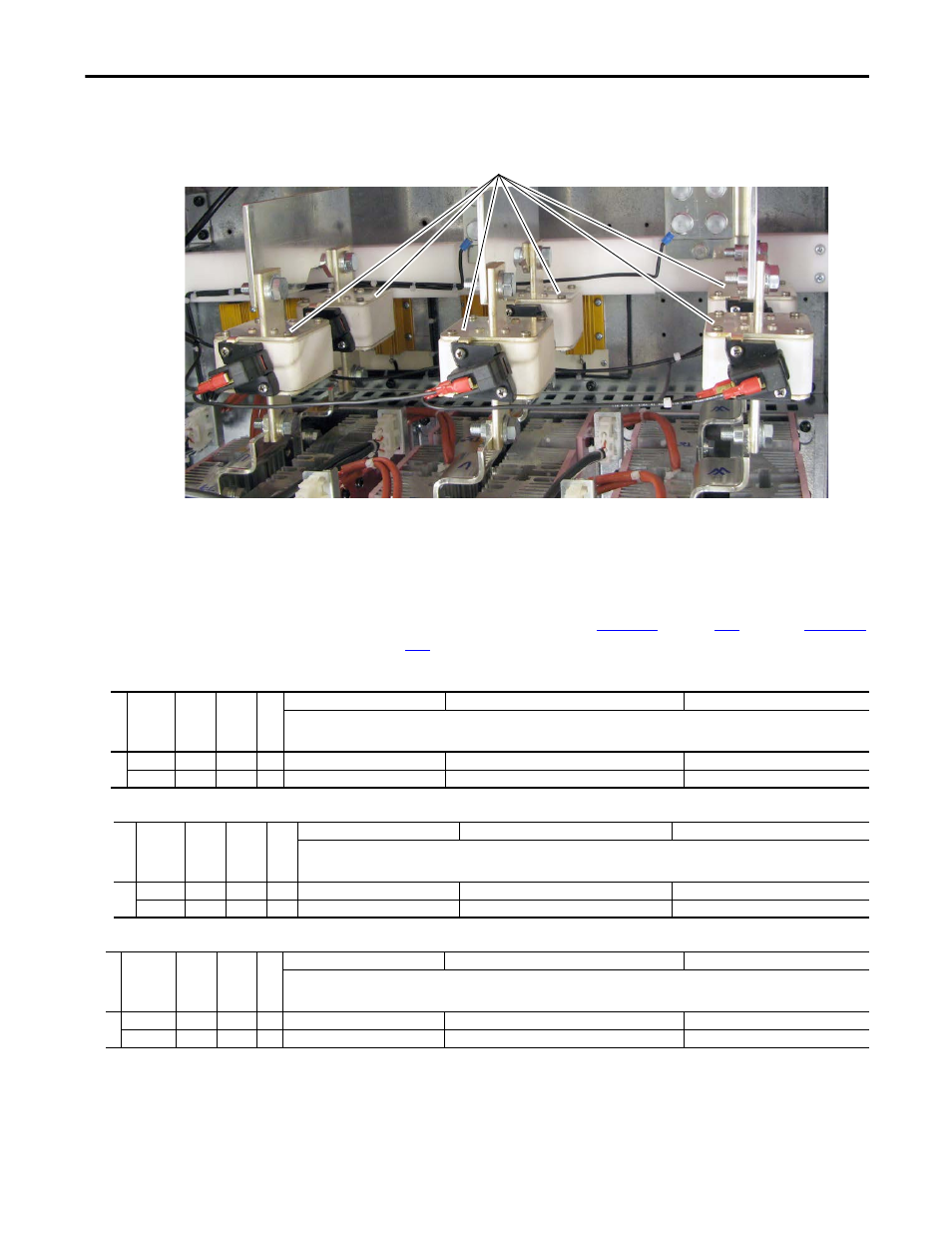

Figure 75 - Frame D Regenerative Drive - Leg Fuse Location
Fuses for Non-Regenerative Frame C and D Drives
AC input line and/or leg fuses are internally mounted and provided with frames
C and D drives. See Fuse Code FS4 in
Figure 71 on page 242 . Also, see Figure 76
on page 249 for fuse locations.
Table 68 - AC Input Line Fuses - 230V AC Input Frame C Drives
Table 69 - Leg Fuses - 230V AC Input Frame D Drives
Table 70 - AC Input Line Fuses - 460V AC Input Frame C Drives
Leg fuses and switches are installed on the bus bars behind the control panel, which holds the circuit boards.
Fram
e
Drive
Current
Rating
Code DC
Amps AC Line
Amps Qty Bussmann Mersen SIBA
Square Body - Flush End Contact
C 521 521 426 3 170M5466 + switch 170H0069 6,9 URD 32 TTF 1000 + switch MS 3-V1-5 BS 20 671 32.1000 + switch 28 001 04
700 700 571 3 170M5466 + switch 170H0069 6,9 URD 32 TTF 1000 + switch MS 3V 1-5 BS 20 671 32.1000 + switch 28 001 04
Fram
e
Drive
Current
Rating
Code DC
Amps AC Line
Amps Qty Bussmann Mersen SIBA
Square Body - DIN 43653 Stud-Mount
D 875 875 715 6 170M6263 + switch 170H0069 Y300263 + switch MS 3V 1-5 UR 20 635 32.900 + switch 28 001 04
1K0 1050 858 6 170M6264 + switch 170H0069 Z300264 + switch MS 3V 1-5 UR 20 635 32.1000 + switch 28 001 04
Fr
am
e
Drive
Current
Rating
Code DC
Amps AC Line
Amps Qty Bussmann Mersen SIBA
Square Body - Flush End Contact
C 495 495 404.4 3 170M5464 + switch 170H0069 6,9 URD 32 TTF 800 + switch MS 3-V1-5 BS 20 671 32.800 + switch 28 001 04
667 667 544.9 3 170M5466 + switch 170H0069 6,9 URD 32 TTF 1000 + switch MS 3-V1-5 BS 20 671 32.1000 + switch 28 001 04
