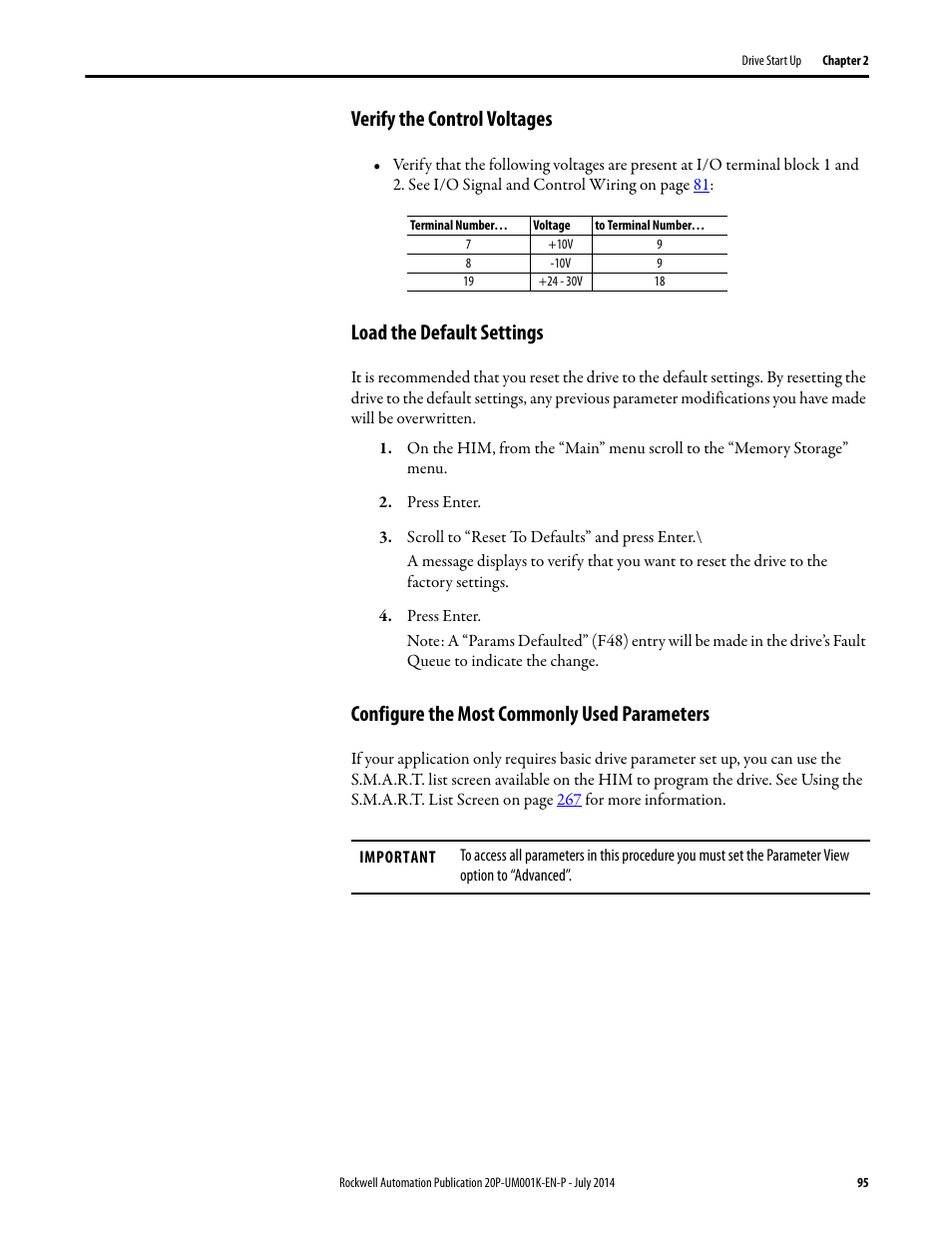

Verify the control voltages, Load the default settings, Configure the most commonly used parameters – Rockwell Automation 23P PowerFlex Digital DC Drive User Manual
Page 95
