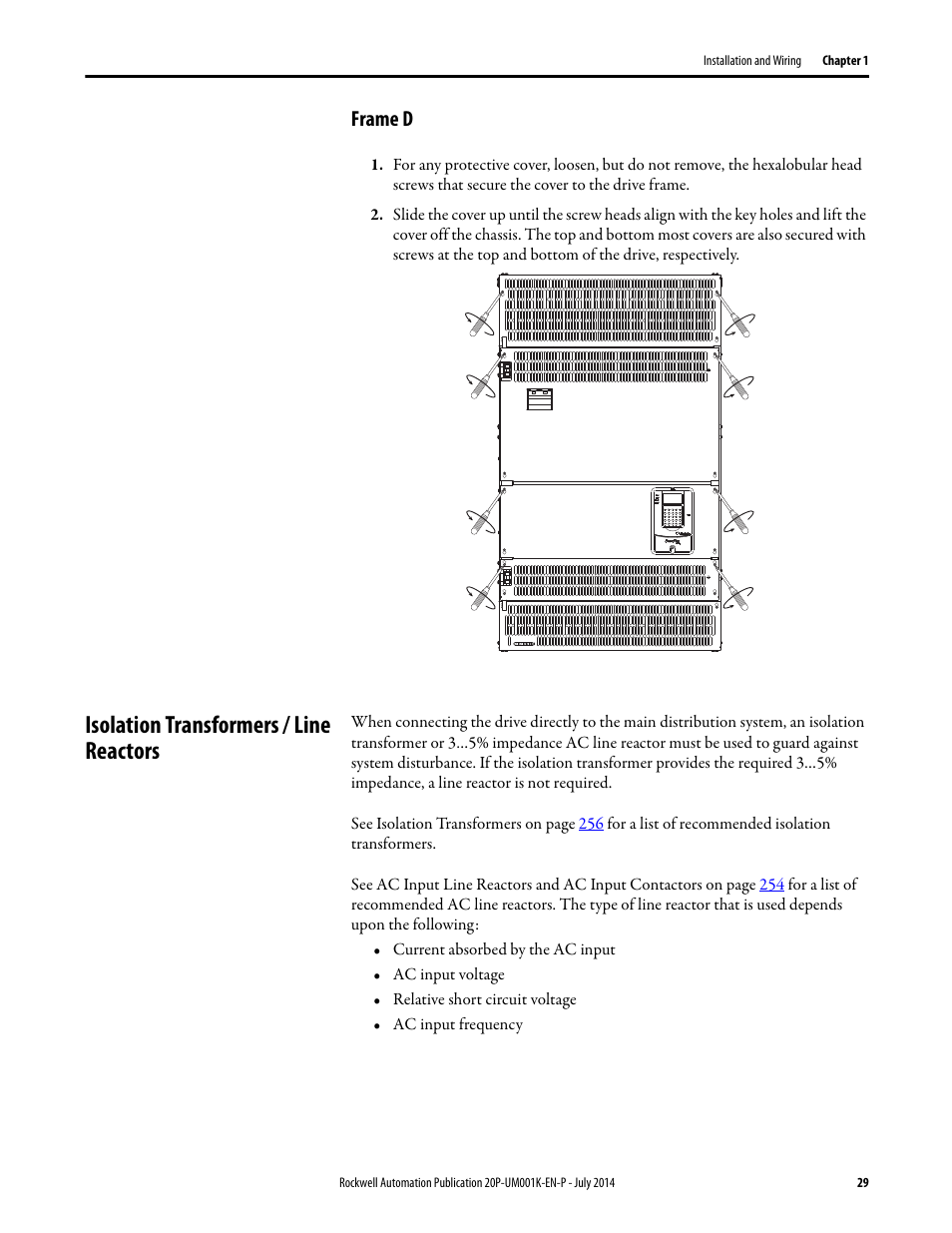

Frame d, Isolation transformers / line reactors – Rockwell Automation 23P PowerFlex Digital DC Drive User Manual
Page 29
