3.35 Model 6036 Legacy
Boom
6. Assemble the hose clamps to the floor of the inner
boom. Keep the four hoses in line (left to right) as
they come out of the rear of the inner boom:
a. Place a 5/16" lockwasher (Fig. 3-77, 1) and
5/16" flat washer (2) onto each 5/16-18 x 5"
capscrew (3), and insert the capscrews through
the clamp cover plate (4).
b. Place a 3/4" diameter hose clamp half (Fig. 3-77, 5)
onto the capscrews. Place the left auxiliary
hydraulic hose (6) and another 3/4" diameter
hose clamp half (5) onto the capscrews.
c. Place a 5/8" diameter hose clamp half (Fig. 3-77, 7),
left attachment tilt hose (8) and another 5/8"
diameter hose clamp half (7) onto the capscrews.
d. Repeat Steps a-c to install the right attachment
tilt (Fig. 3-77, 9) and right auxiliary hydraulic
hoses (10).
e. Position the attachment and auxiliary hydraulic
tilt hoses (Fig. 3-77, 6, 7, 9 and 10) with the
edges of the tape (11) at the hose clamps. Hold
the hoses in position, and tighten the capscrews
securely.

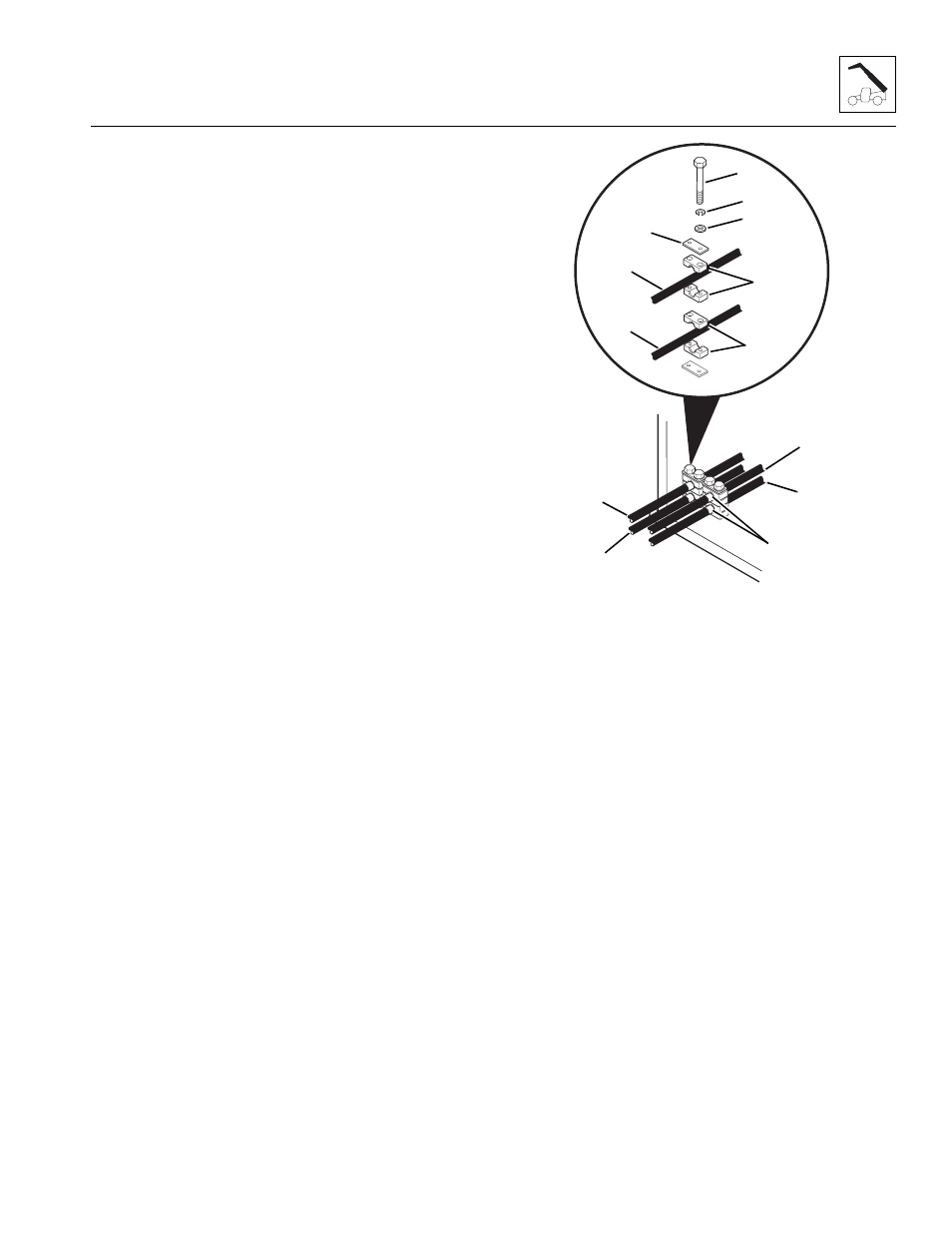

Figure 3-77 Install the Attachment Tilt and Auxiliary
Hydraulic Hose Clamps to the Inside of the Inner Boom
MA6960
2
3
1
6
8
4
6
7
8
9
10
5
11
