9.83

Model 6036 Legacy

Electrical System

9.15.5

Transmission Shift Control Switch

a. Travel Select Lever

The transmission shift control switch (travel select lever)
is located on the left side of the steering column. The
switch has three positions (Fig. 9-69, 1): (F) FORWARD
(all the way up), (N) NEUTRAL (center), and (R) RE-
VERSE (all the way down). The switch or lever must be
in the (N) NEUTRAL position to permit engine starting.

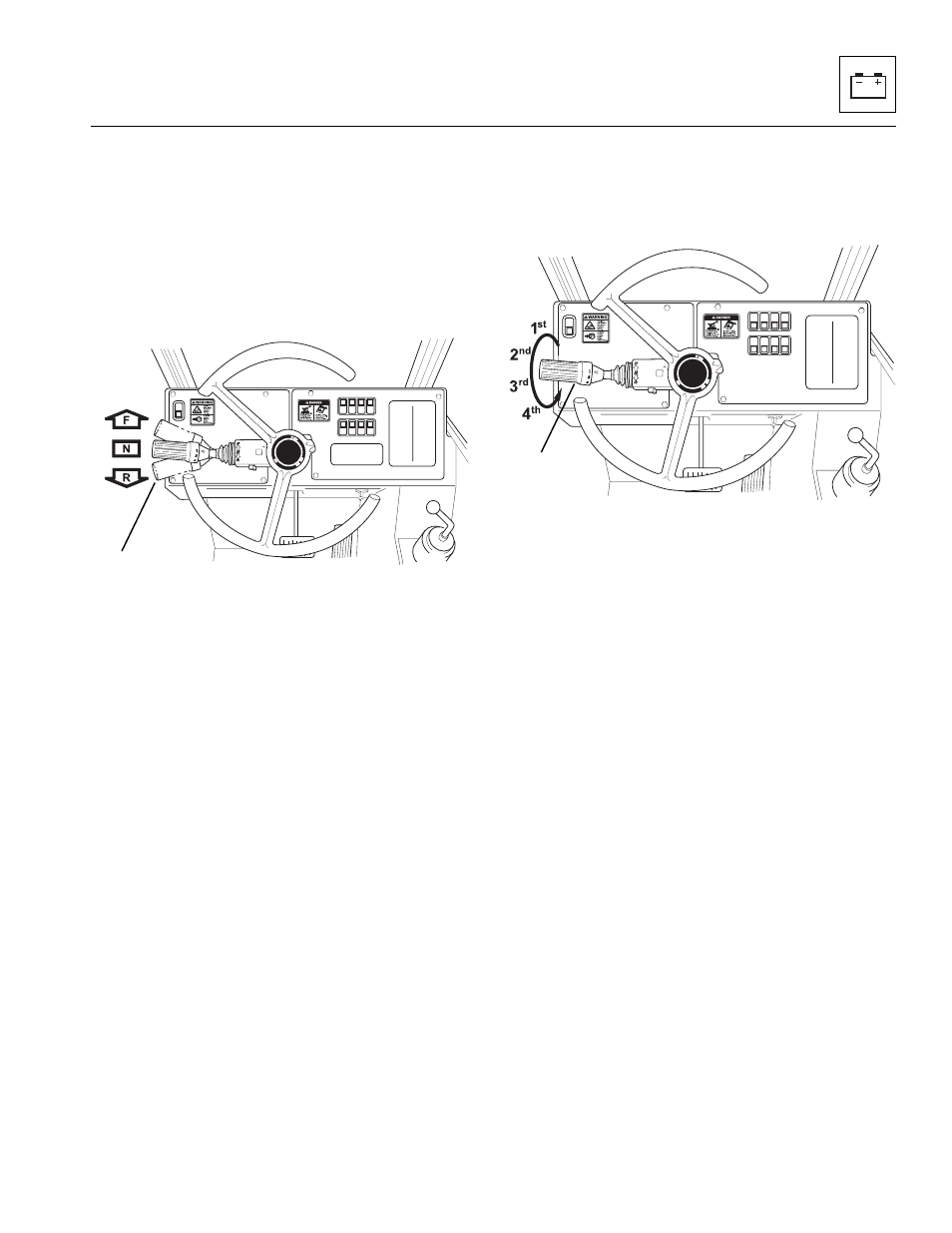

Figure 9- 69 The Travel Select Lever Has Three Positions

Moving the lever (Fig. 9-69, 1) opens and closes
electrical contacts in the switch, allowing electricity to flow
to the appropriate relays and onto the transmission shift
solenoids.

Travel selections are changed by grasping the lever,
pulling it toward the steering wheel, then up or down to
the desired selection, (F) FORWARD or (R) REVERSE.

When the switch is shifted to the (R) REVERSE position,
the back-up alarm will automatically sound. (Refer to
Section 9.8.1, “Transmission, Forward First Gear Circuit,”
or subsequent circuit diagrams and also, Section 9.15.6,
c. “Travel Select Lever and Wiring Harness Testing.”)

Refer to Section 4.3.2, c. “Transmission Travel and Gear
Select Lever Removal” and Section 4.3.2, d.
“Transmission Travel and Gear Select Lever Installation”
for removal and installation instructions.

b. Gear Select Lever

The gear select lever (Fig. 9-70, 1) is part of the
transmission shift control switch (travel select lever). The
lever has a twist-grip handle with four positions.

Figure 9-70 The Gear Select Lever Permits

Transmission Gear Selection (Shifting)

The vehicle has four (Fig. 9 -70) forward gears and three
reverse gears.

First gear is used for the highest torque and pulling
power, and the higher-numbered gears are for increasing
vehicle travel speed.
