Electrical System
9.4 Model 6036 Legacy

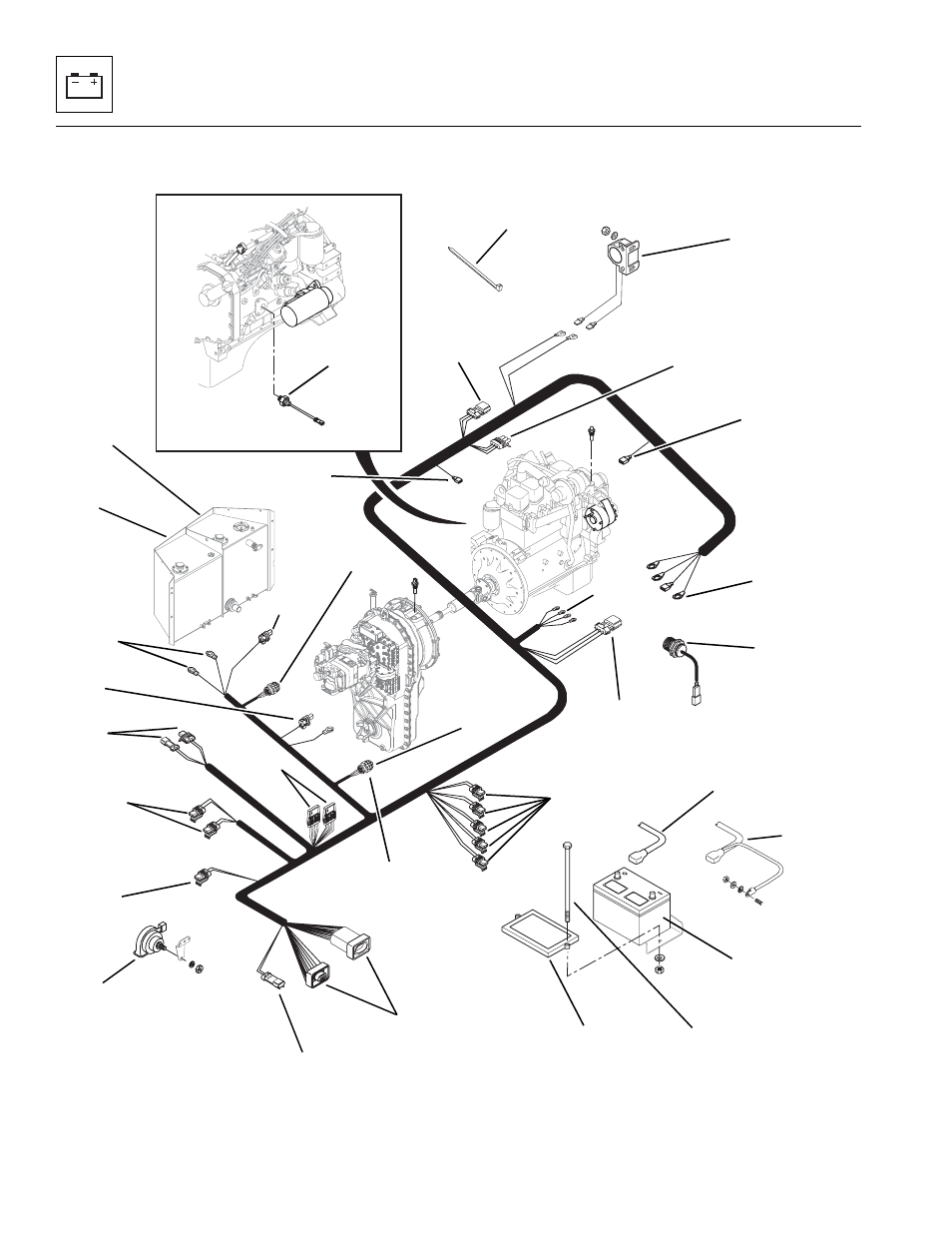

9.1.2 General Overview (Engine Harness)
Lower Trans.
Connector
Diodes
Pressure
Reducing
Valve
Conn.
Horn
Connector
Horn
Boom Extend
Sensor
Cab/Chassis
Harness
Connectors
Battery
Cover
Plate
Stabil-TRAK™
Connector
(Not Used)
Positive (+)
Battery
Cable
Engine Block
Heater
Starter
Alternator
Connectors
Water
Temperature
Sensor Connector
Fuel Shut-off
Solenoid Connector
Oil Pressure
Switch Connector
Back-Up
Alarm
Boom Switch
Connector
(Not Used)
Negative (-)
Battery
Cable
Upper Trans.
Connector
Battery
Hold-down
Bolt
Battery
Steer
Mode
Conn.
Trans.
Ground
Trans.
Temp.
Conn.
Fuel
Sender
Conn.
Hyd.
Temp.
Boom
Extend
Conn.
Fuel
Tank
Hyd. Oil
Tank
Tie Strap
Engine Block
Heater
PH22402
