Electrical System
9.66 Model 6036 Legacy
d. Transmission Temperature Warning Indicator
This indicator (Fig. 9-39) illuminates when the
transmission fluid temperature exceeds 250° F
(121° C). An audible alarm will sound, and the
vehicle should be stopped and the engine
allowed to run at high idle for five minutes.
If the light and alarm DO NOT cease after five minutes,
the engine must be shut down to help avoid transmission
damage. For additional information refer to Section 9.9.3,
“Transmission Temperature Warning Indicator
Troubleshooting.”

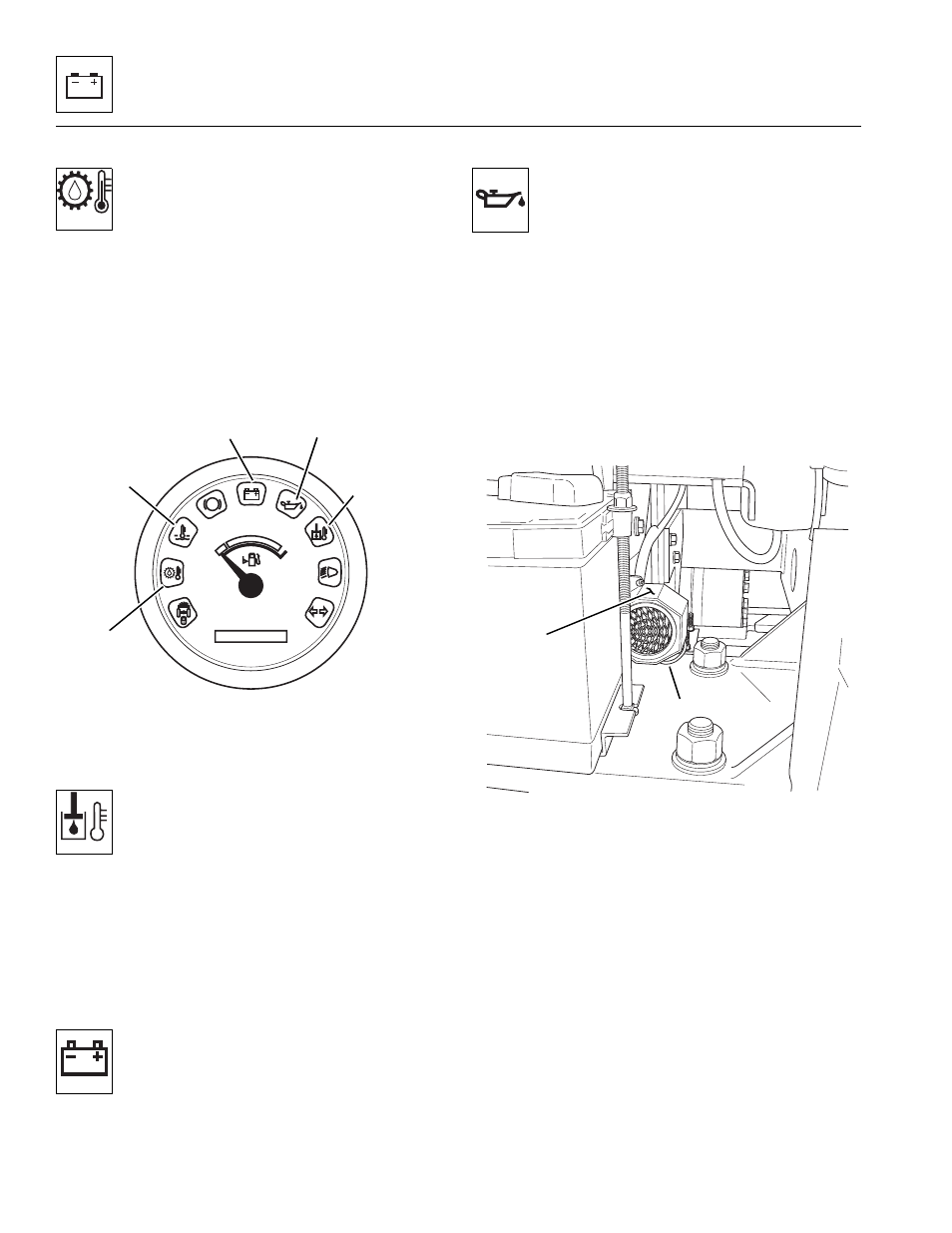

Figure 9- 39 Typical Operator’s Instrument Cluster
Warning Indicators
e. Hydraulic Oil Temperature Warning Indicator
This warning light (Fig. 9 -39) will activate when
the hydraulic oil temperature is above 195° F
(91° C). The vehicle should be stopped and the
engine allowed to idle at high idle for five
minutes.
If the light continues to illuminate after five minutes, the
engine must be shut down to help avoid damage in the
hydraulic system. For additional information refer to
Section 9.9.4, “Hydraulic Oil Temperature Warning
Indicator Troubleshooting.”
f. Alternator Charging Warning Indicator
This light (Fig. 9-39) illuminates when the
charging system is not working properly. Check
and service the alternator and battery as
required. For additional information refer to
Section 9.7.8, “Charging Circuit and Troubleshooting.”
g. Engine Oil Pressure Warning Indicator
This indicator (Fig. 9-39) illuminates and an
audible alarm sounds after 15 seconds if the
engine is not started; this is normal. When the
ignition key switch is turned to the OFF position,
the indicator is reset.
Should the light and alarm begin during engine operation,
the engine oil pressure is too low. The engine must be
shut down as soon as practical to help avoid engine
damage. For additional information refer to Section 9.9.6,
“Engine Oil Pressure Warning Indicator Troubleshooting.”
9.12.2 Back-Up Alarm
The back-up alarm (Fig. 9-40, 1) is located at the rear of
the vehicle, behind and to the right side of the battery.
Figure 9-40 Back-up Alarm Location
When the transmission shift control switch (travel select
lever) is shifted to the (R) REVERSE position, the back-
up alarm will automatically sound.
Place the travel select lever in REVERSE to test the
back-up alarm. The back-up alarm must not sound when
the travel select lever is in (N) NEUTRAL or (F)
FORWARD. Also, with the ignition key switch in the RUN
position, the back-up alarm will sound when the travel
select lever is shifted into the (R) REVERSE position.
OH25302
0000 00
P
OH1810
Transmission
Temperature
Indicator
Engine Coolant
Temperature
Indicator
Alternator
Charging
Indicator
Engine Oil
Pressure
Indicator
Hydraulic Oil
Temperature
Indicator
MA8290
OH25602
OH25502
MA7970
1
3
2
