9.51 Model 6036 Legacy
Electrical System

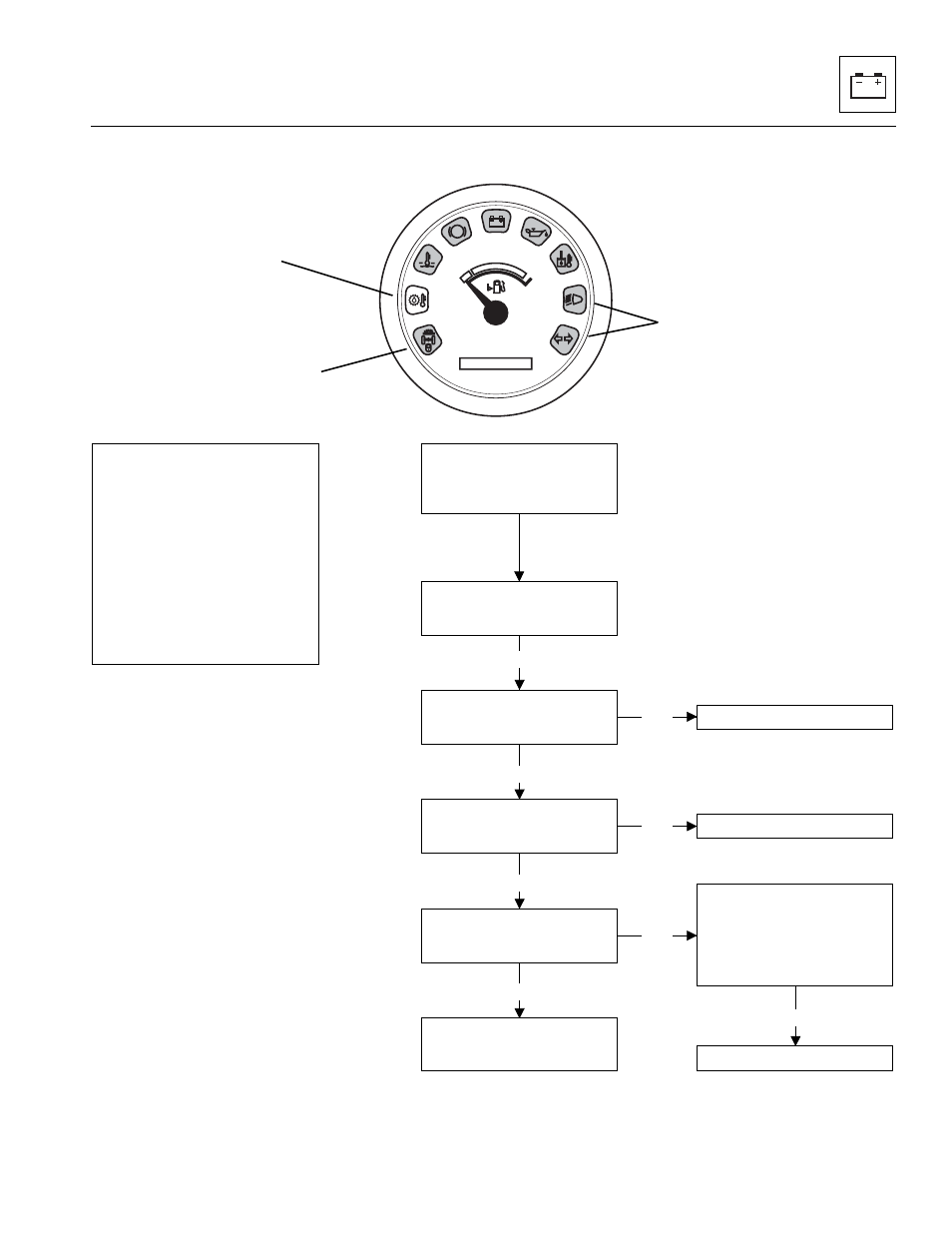

9.9.3 Transmission Temperature Warning Indicator Troubleshooting
0000 00
P
Check transmission fluid
level. Check radiator for
plugged condition or debris.
Transmission temperature
warning indicator stays ON
while operating and alarm
sounds.
Repair as needed.
Disconnect harness at
sending unit. Indicator light
should go out.
Check connections and
circuit at sending unit on
transmission.
If OK
Repair as needed.
Replace transmission
temperature sending unit
and retest system.
If OK
If OK
Not
OK
Not
OK
Not
OK
Check circuit for grounded
wire 18 (GRN).
If grounded,
repair wire. Refer to Section
9.7.6, “Main Electrical
Schematic.”
Replace instrument cluster.
If circuit tests OK
Stop and idle vehicle for
1 minute to allow
transmission oil to cool.
Not OK
Before troubleshooting any
electrical circuit, ALWAYS
begin by checking the
following:
1. Fuses.
2. Battery for proper charge.
3. All connections relating to
circuit are clean and tight.
4. Check instrument cluster
bulbs for proper function.
Transmission Temperature
Warning Indicator
MA7580
Not Used
Optional
