9.9 Model 6036 Legacy
Electrical System
Fuses are a one time protection device and must be
replaced each time the circuit is overloaded. To
determine if a fuse is open (Fig. 9-6, 2), remove the
suspected fuse and examine the element in the fuse for
an open (break). If not broken, also check for continuity
using a DMM or a continuity tester. If the element is open
or continuity is suspect, replace the fuse with one of an
equal current rating. 9.6.2 Fuse and Relay Replacement
Shut off the engine and disconnect the negative (-) battery
cable at the negative (-) battery terminal before checking
the electrical system fuses or relays.
Remove a suspect fuse (Fig. 9 -7, 1) or relay (2) from the
fuse and relay panel by pulling the fuse or relay straight
out and away. ALWAYS install the correct amp rated fuse
or relay.

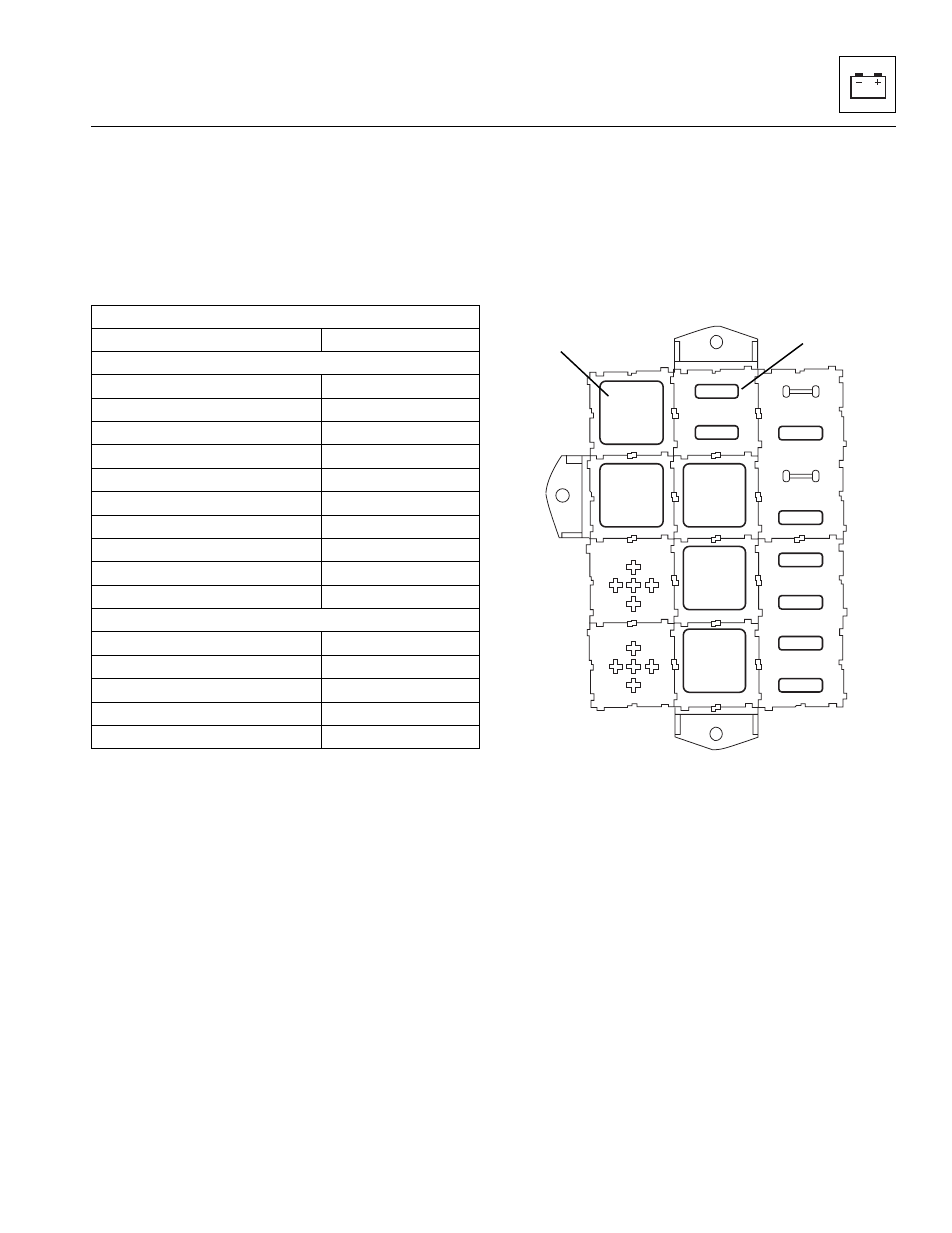

Figure 9-7 Fuse and Relay Removal
Fuse Types
Current Rating Amperes Color
Auto Fuses, Mini Fuses
1 Black
2 Gray
3 Violet
5 Tan
7.5 Brown
10 Red
15 Blue
20 Yellow
25 White
30 Green
Maxi Fuses
20 Yellow
30 Light Green
40 Orange or Amber
50 Red
60 Blue
Main
Light Switch
Relay
Instrument
Panel
Horn/Heater
Steer Select
Switch
Opt.
Washer/Wipers Lights
Transmission
Headlight
Switch
Relay
Park Brake
Disengage
Relay
Light
Switch
Relay
Neutral
Start
Relay
Backup
Relay
7.5
30 10
10
10
10
7.5
40
MA7900
1
2
