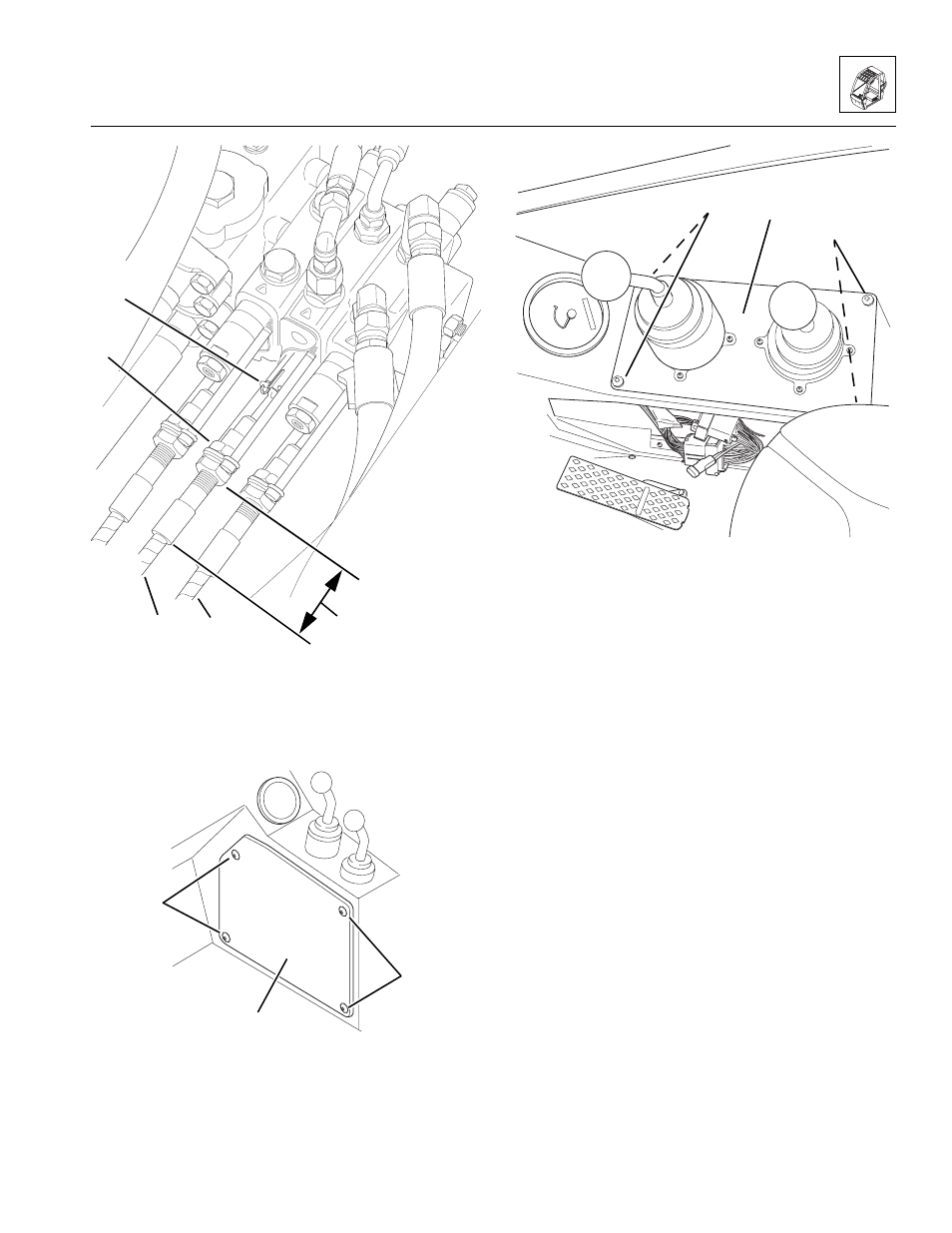

Figure 4-20 Disconnect the Frame Sway and
Attachment Tilt Control Cables
9. Remove four button-head screws (Fig. 4-21, 1) and
remove the console panel (2).
Figure 4-21 Remove the Console Panel
10. Remove four button-head capscrews (Fig. 4-22, 1)
and remove the joystick panel assembly (2) from the
vehicle.
Figure 4-22 Remove Joystick Panel Assembly
Joystick Assembly Installation
1. Route the control cables through the opening the
console, and through the opening at the bottom of the
cab. Secure the joystick panel assembly (Fig. 4-22,
2) with four button-head capscrews (1).
2. Route the control cables through the opening at the
bottom of the frame.
3. Connect the frame sway control cable to the main
control valve assembly:
a. Install the cable in the bracket, and slide the
inner jam nut (Fig. 4 -20, 4) over the end of the
frame sway control cable (2). DO NOT tighten the
jam nuts at this time.
b. Connect the end of the cable to the shaft from
the control valve. Secure with an anchor pin and
spring pin (Fig. 4-20, 3).
c. Adjust the jam nuts until the distance (Fig. 4-20, 1)
from the outer jam to the end of the ferrule is the
same as recorded during removal. Tighten the
jam nuts.
4. Repeat Step 3 to install the attachment tilt control
cable (Fig. 4-20, 5).
