8.7 Model 6036 Legacy
Hydraulic System
8.6 HYDRAULIC PRESSURE DIAGNOSIS
JLG has two kits available to use for hydraulic system
maintenance and troubleshooting: the Sky Trak Pressure
Test Kit and the Sky Trak Flowmeter Kit. The kits are con-
tained in a durable polyethylene carrying case for de-
manding field service conditions.
Pressure Test Kit
The hydraulic pressure test kit (Fig. 8-1) is used to
pressure test the various hydraulic components in the
hydraulic system. The kit includes:
• Gauges for testing high and low pressure circuits
• Fittings, couplers and hoses
• Laminates of test diagrams and test procedures
• 13" x 18" x 7" durable carrying case

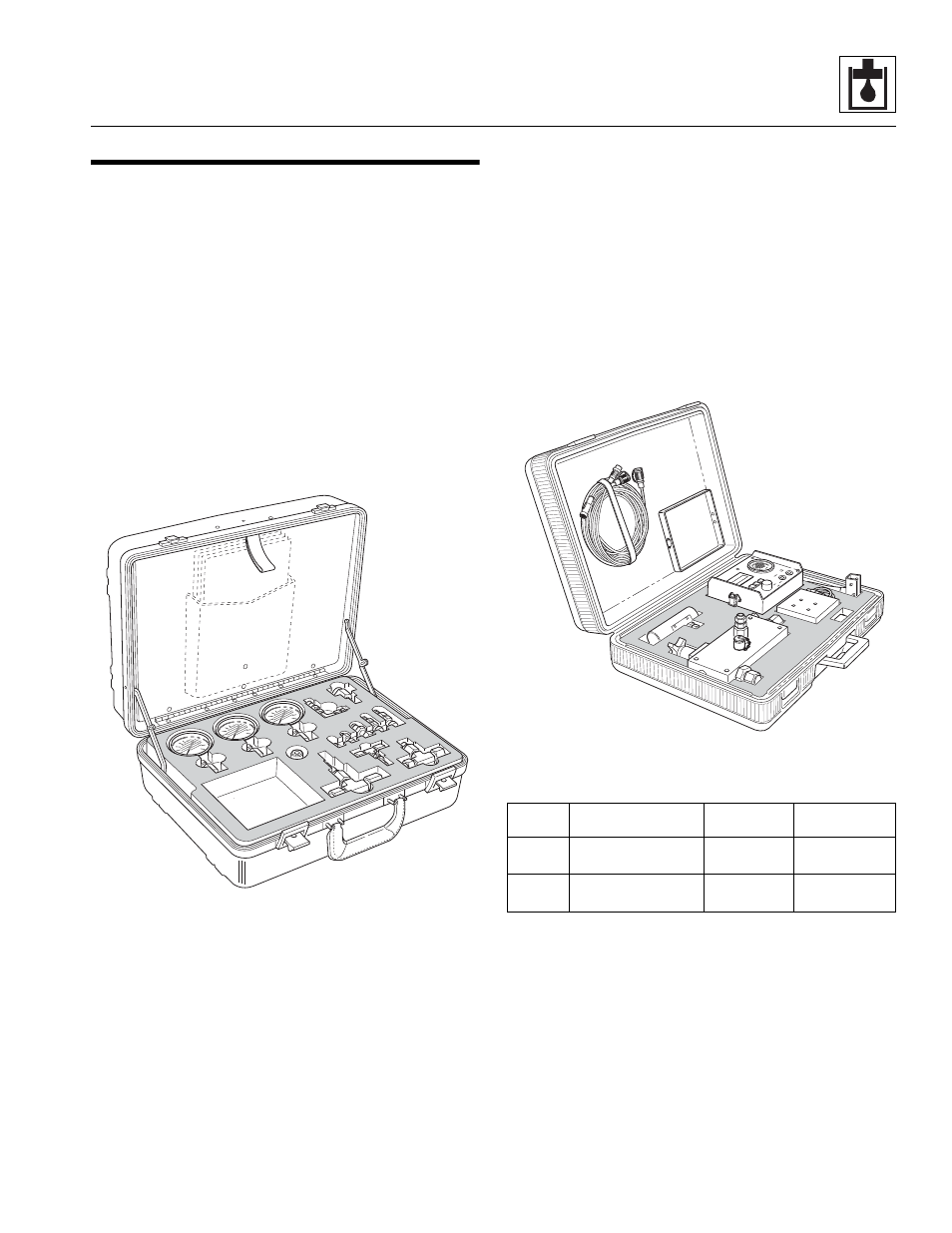

Figure 8-1 Hydraulic Pressure Test Kit
Flowmeter Test Kit
The flowmeter test kit (Fig. 8-2) is used to pinpoint
hydraulic system faults. It includes a flowmeter with load
valve, magnetic base, photo tachometer head and flex
arm. The kit features:
• Bi-directional for unrestricted connection and
simplified testing
• Internal by-pass to protect system and tester
from over-pressure
• Measures up to 60 GPM and 6000 psi
• 16" x 22" x 7" durable carrying case
Figure 8-2 Hydraulic Flowmeter Test Kit
Contact JLG at (877) 554-5438 for ordering information.
PH14102
Part
Number
Description
Approximate
Weight
Price and
Availability
7133413
Hydraulic Pressure
Test Kit
16 lbs. Consult Factory
1321107
Hydraulic Flowmeter
Test Kit
28 lbs. Consult Factory
PH14202
