Cab and Covers
4.22 Model 6036 Legacy
c. Heater/Defroster System Components

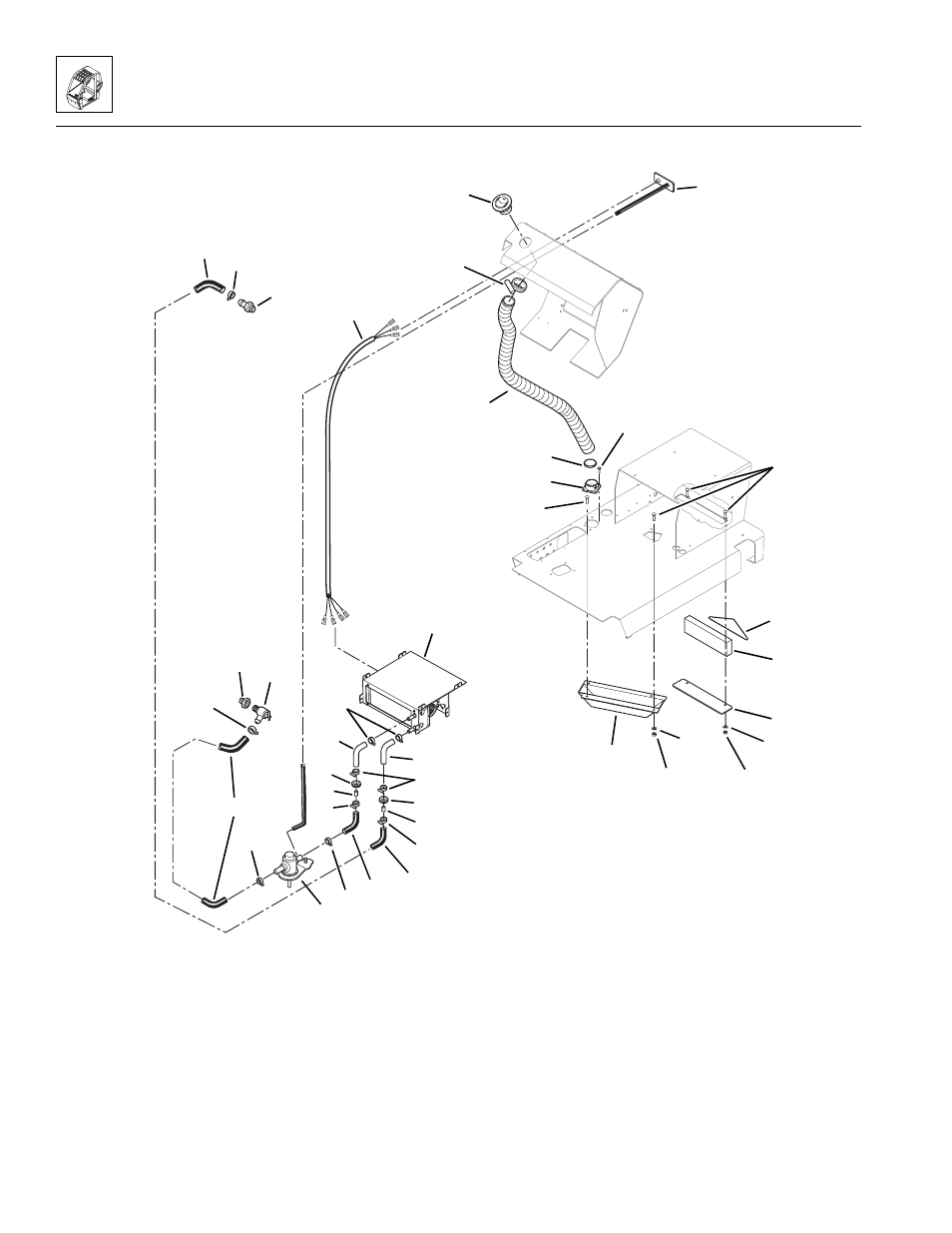

Figure 4-37 Heater/Defroster System Components
MA8740
2
1
1. Heater Hose
(return to engine)
2. Hose Clamp (10)
3. Reducer
4. Wiring Harness
5. Hose Clamp
6. Defroster Duct
7. Heater/Fan Control
8. Defroster Hose
9. Wire Tie
10. Hose Adapter
11. Carriage Bolt (6)
12. Self-Drilling Screw (4)
13. O-ring
14. Air Filter
15. Filter Access Plate
16. Lockwasher (6)
17. Acorn Nut (6)
18. Heater Duct
19. Heater Assembly
20. 90° Elbow - Lower
Heater Hose
21. 90° Elbow - Lower
Heater Hose
22. Grommet (2)
23. 5/8" Copper Spice (2)
24. Heater Hose
25. Heater Control Valve
26. Heater Hose
(from engine)
27. Reducer
28. Valve
