Engine Coolant High Temperature
Sender

The engine coolant high temperature sender (Fig. 9-89, 1)
is threaded into the engine block (2) and is connected to
the operator’s instrument cluster via the engine wiring
harness, bulkhead connector and cab wiring harness.

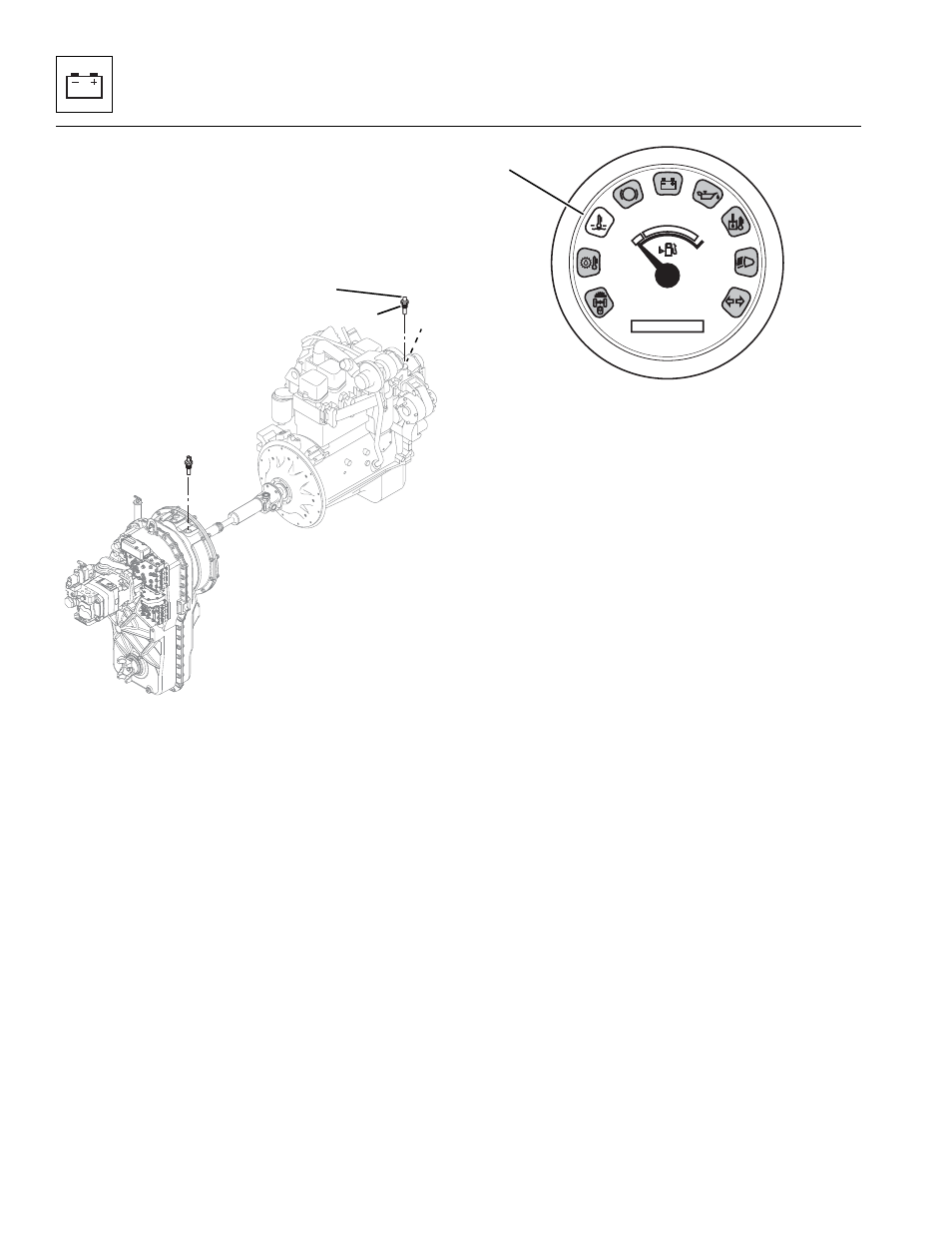

Figure 9-89 Engine Coolant Temperature Sender

When the engine coolant temperature exceeds normal
operating limits and rises above 210° F (99° C), the
sender closes contacts within the sending unit. The
operator’s instrument cluster indicator (Fig. 9 -90, 1)
illuminates.

When the engine coolant temperature is below 210° F
(99° C), the contacts within the sending unit open and the
instrument cluster indicator turns OFF. (Refer to Section
9.9.2, “Engine Coolant Temperature Warning Indicator
Troubleshooting.”)

Figure 9-90 Engine High Coolant Temperature Indicator

Engine Coolant High Temperature Sender Removal

1. Disconnect the negative (-) battery cable at the

negative battery terminal.

2. Unplug the engine coolant high temperature sender

connector (Fig. 9-89, 3) from the wiring harness
connector.

3. The sender (Fig. 9-89, 1) is threaded into the engine

block (2). Remove the sender.

b. Engine Coolant High Temperature Sender

Disassembly

DO NOT disassemble the sender. Replace a defective or
faulty sender.

c. Engine Coolant High Temperature Sender

Inspection and Replacement

Inspect the sender and the wiring harness connector ter-
minals for continuity. Replace a defective or faulty sender
with a new part.

d. Engine Coolant High Temperature Sender

Installation and Testing

1. Thread the engine coolant high temperature sender

(Fig. 9-89, 1) into the engine block (2) snugly, then
connect the sender connector (3) to the wiring harness
connector.

2. Connect the negative (-) battery cable to the

negative (-) battery terminal.

3. Check for proper coolant level.

4. Clear the area around the vehicle of personnel and

any obstructions to vehicle travel.
