7.19

Model 6036 Legacy

Engine: Cummins 4BT3.9

6. Install the inlet (Fig. 7-19, 12) and outlet (11) hoses

to the fuel tank. Secure with clamps (21).

7. Connect the upper hydraulic hoses (Fig. 7-19, 13

and 14) to the hydraulic oil tank.

8. Connect the return hose (Fig. 7-19, 16) to the

hydraulic oil tank.

9. Connect the lower hydraulic oil strainer hose to the

strainer connection (Fig. 7-19, 15).

10. Connect the hydraulic oil temperature sensor

(Fig. 7 -19, 2).

11. Fill fuel tank with No. 2 D fuel.

12. Fill the hydraulic tank with ISO-46 hydraulic oil.

13. Check fuel and hydraulic oil tanks for leaks.

14. Connect the negative (-) battery cable (Fig. 7-2, 1).

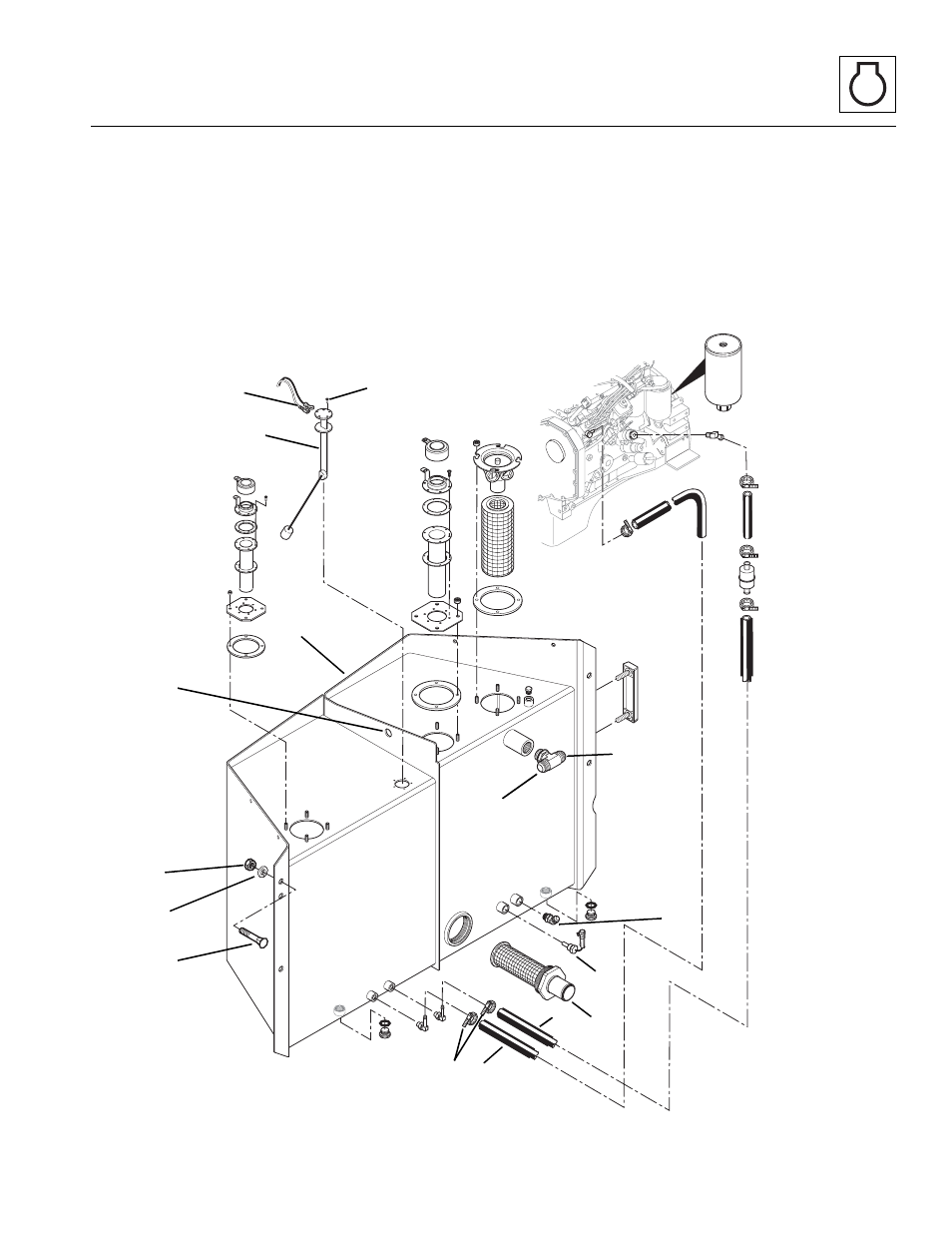

Figure 7-19 Fuel/Hydraulic Oil Tank Components

MA9110
