Electrical System
9.96 Model 6036 Legacy
9.15.13 Engine Block Heater
The engine is equipped with an engine block heater
(Fig. 9 -93, 1) that can be plugged into a standard
110/120V A.C. grounded outlet to heat the engine coolant.
When temperatures are below 10° F (-12° C), the block
heater should be used to aid in starting.

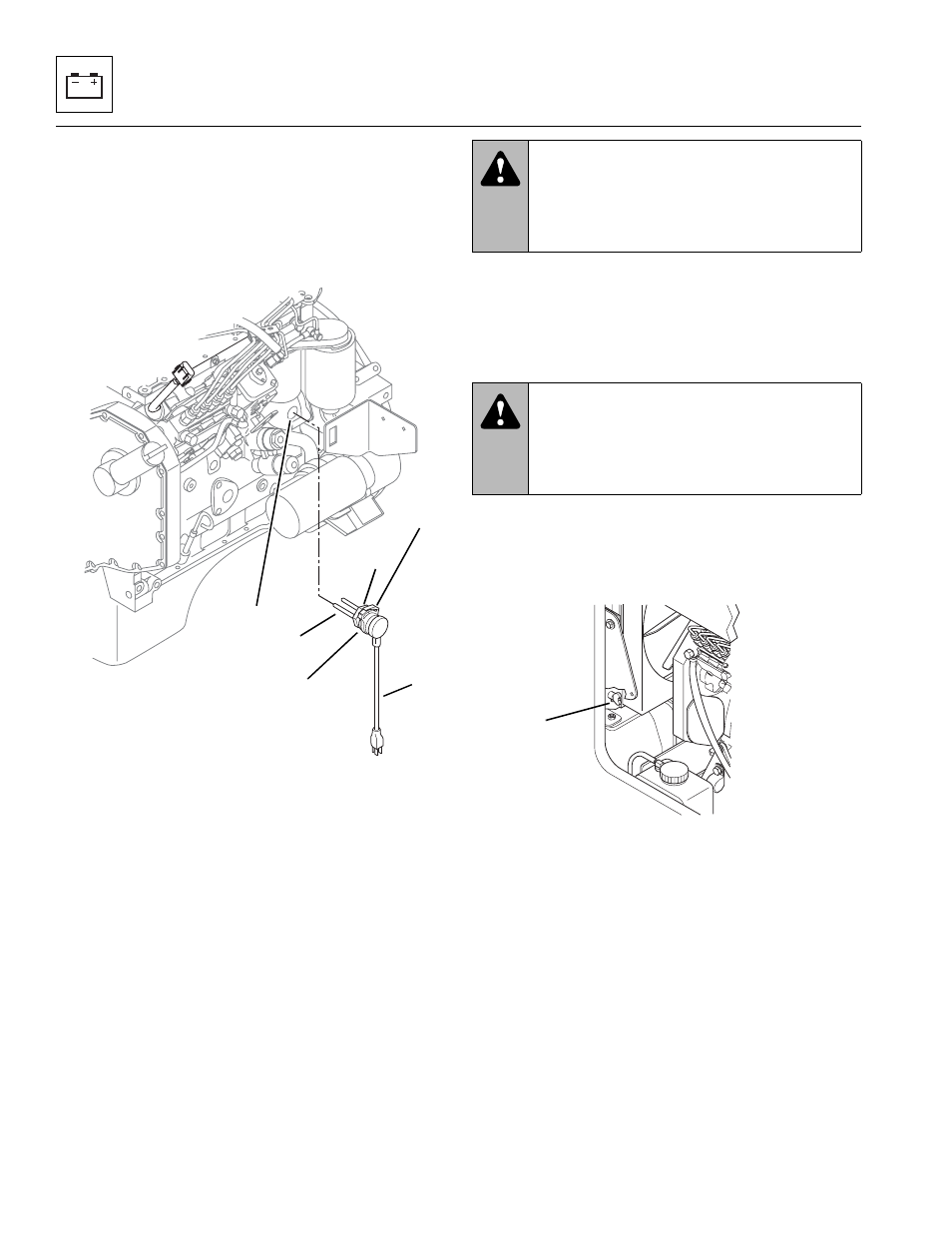

Figure 9-93 Engine Block Heater
a. Engine Block Heater Removal
1. Level the vehicle, ground the attachment, place the
travel select lever in (N) NEUTRAL, engage the park
brake switch and shut the engine OFF. Remove the
ignition key.
2. Secure accident prevention tags to the steering
wheel and ignition key switch. (Refer to Section 1.5,
“Accident Prevention Tag Usage.”
)
3. Disconnect the negative (-) battery cable at the
negative battery terminal.
4. Unlatch, unlock and open the engine right and left
engine access doors. Allow the engine to cool before
proceeding. Draining the cooling system while the
engine is hot can cause cracks in the engine block.
5. Place a suitable container beneath the radiator drain
plug (Fig. 9 -94, 1) or petcock. Slowly turn the
radiator cap (not shown) to the first stop and allow
any pressure to escape. Remove the radiator cap.
Figure 9-94 Drain the Engine Coolant.
6. Place a funnel at the base of the radiator to channel
the drained coolant into the container. Open the
radiator drain plug (Fig. 9-94, 1) or petcock and
allow the coolant to drain into the funnel. Close the
radiator drain plug or petcock.
7. Transfer the coolant into a properly labeled container.
Dispose of properly if coolant needs to be replaced.
8. Remove plastic retainer (Fig. 9 -93, 5) from around
engine block heater element (6) and 110-volt cord (2).
9. Using a 29 mm socket, remove heating element
(Fig. 9-93, 6) from engine block.
MT0870
3
2 1
4
5
6
WARNING:
DO NOT attempt this
procedure when the engine is hot. Wait for the
engine, muffler and tailpipes to cool down
before proceeding. Failure to do so could result
in severe burns.
WARNING:
Hot coolant can cause
severe burns or eye injury. NEVER remove the
radiator cap while the engine is hot. The
cooling system is under pressure. Wear
protective clothing and safety glasses.
OA1310
1
