Electrical System

9.90

Model 6036 Legacy

Crab-Steer Mode

With the steer select switch in the uppermost
position (Fig. 9-82, 4), the following conditions
must be met:

1. Front wheels (Fig. 9-81, 1) must steer in the

direction that the steering wheel is turned.

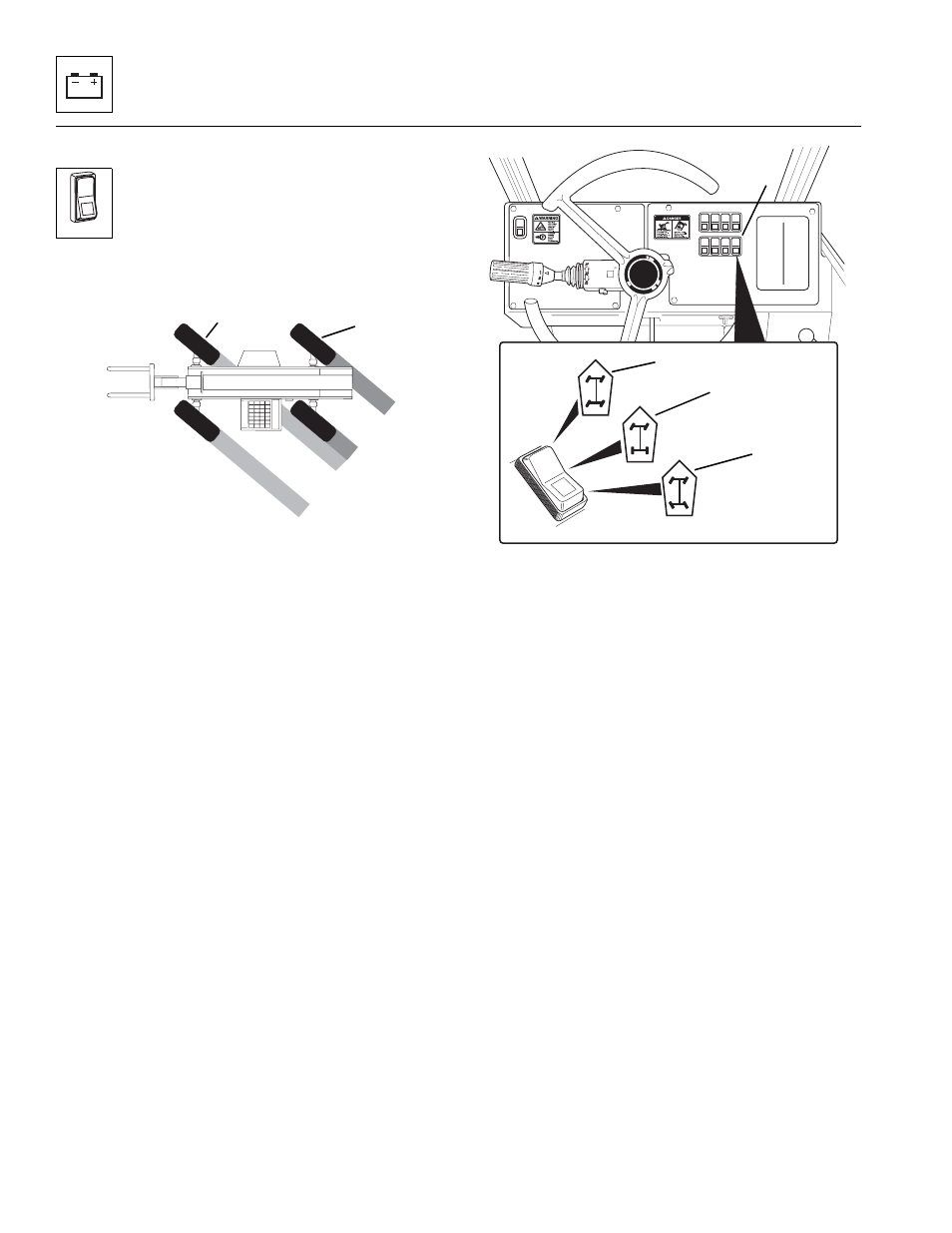

Figure 9-81 Crab Steer

2. Rear wheels (Fig. 9-81, 2) must steer in the

direction that the steering wheel is turned. (Refer to
Section 9.7.11, “Crab Steer Circuit and
Troubleshooting.”)

c. Four-Wheel Steer Indexing

If the vehicle does not drive “straight,” the steering may
not be synchronized or “out of phase.” Perform the four-
wheel steer indexing procedure to synchronize the
steering.

1. With the steer select switch (Fig. 9-82, 1) in the four-

wheel steer position (2), turn the steering wheel fully
left.

Figure 9-82 Steer Select Switch Positions

2. While holding the steering wheel fully left, toggle the

steer select switch to the front-wheel steer position
(Fig. 9-82, 3).

3. Steer the front wheels back to center.

4. Toggle the steer select switch back to four-wheel

steer position (Fig. 9 -82, 2).

5. Turn the steering wheel fully left.

6. Toggle the steer select switch back to the front-wheel

steer position (Fig. 9 -82, 3).

7. Steer the front wheels fully left.

8. Toggle the switch to the four-wheel steer position

(Fig. 9-82, 2) and return to center.

The vehicle should now be properly indexed in four-wheel
steer. If the steering is still not synchronized, repeat the
procedure. (Refer to Section 9.7.9, “Front Steer Circuit
and Troubleshooting” and subsequent circuits and
troubleshooting charts.)
