Cab and Covers
4.20 Model 6036 Legacy
Note: The button-head screw (Fig. 4-34, 1) at the lower
rear position on each side of the heater will be secured
with an insert nut (2).
11. Remove eight button-head screws (Fig. 4-34, 3 and 1),
six nuts (4) and six lockwashers (5).
12. Carefully pull the heater assembly (Fig. 4 -34, 6)
forward. Label and disconnect the wiring harness
connections (7) at the blower.
13. Remove the heater assembly (Fig. 4-34, 6).

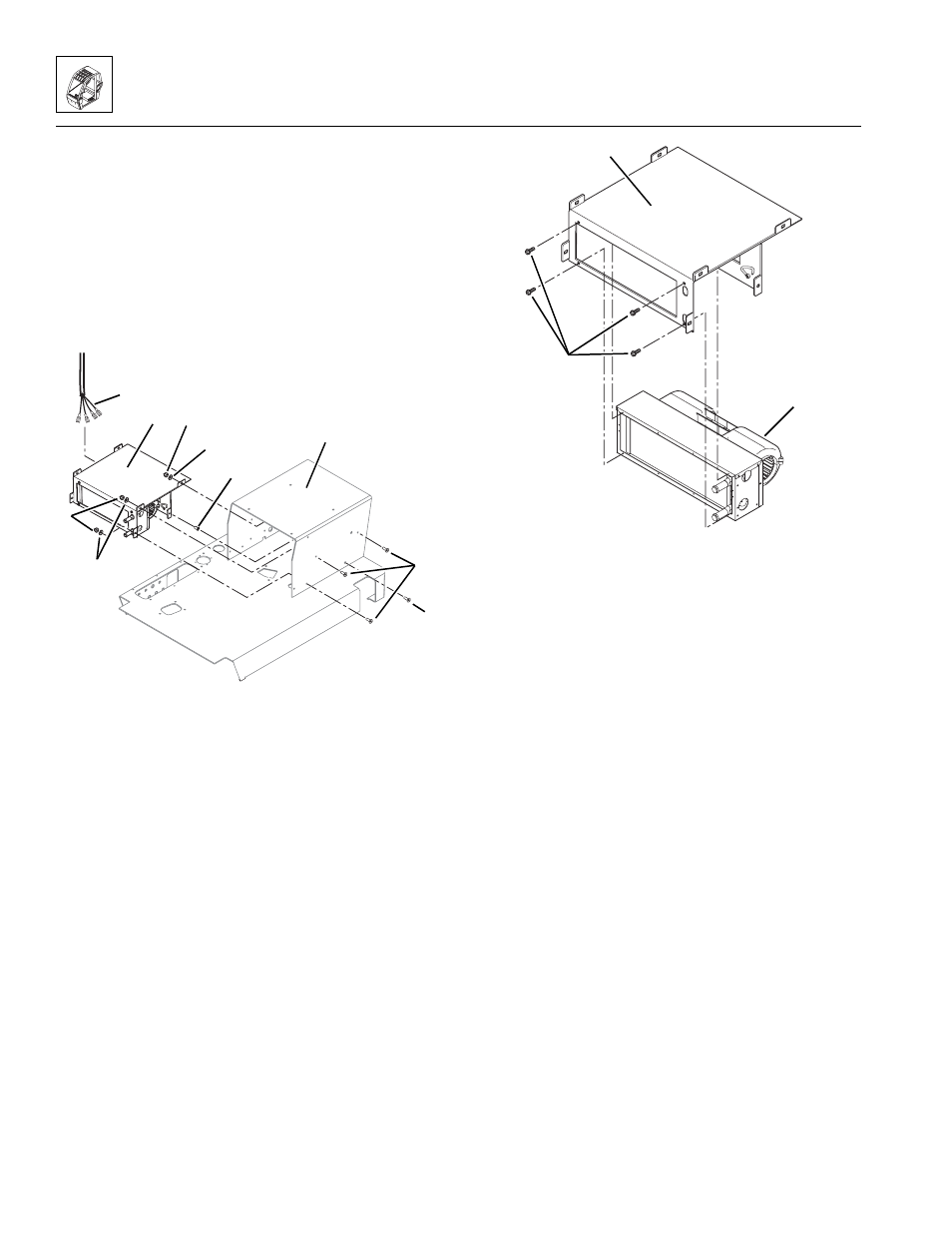

Figure 4-34 Remove Heater Assembly
14. If the heater assembly is to be replaced: Remove
four hex-slotted capscrews (Fig. 4-35, 1), and
remove the mounting bracket (2) from the heater
assembly (3).
Figure 4- 35 Remove Heater Assembly from
Mounting Bracket
b. Heater Assembly Installation
1. Connect the wiring harness connections (Fig. 4-34,
7) to the blower.
Note: The button-head screw (Fig. 4-34, 1) at the lower
rear position on each side of the heater will be secured
with an insert nut (2).
2. Slide the heater/mounting bracket assembly (Fig. 4 -
34, 6) into the seat riser (8), and secure with eight
button-head screws (3 and 1), six lockwashers (5)
and six nuts (4).
MA8730
7
~
3
1
2
6 4
4
5
5
~
8
MA8710
1
3
~
2
