8.10 HYDRAULIC RESERVOIR
The hydraulic reservoir (Fig. 8-26, 1) and the fuel tank (2)
are one unit. They are located on the right side of the
vehicle under a cover (3). To remove the fuel tank/
hydraulic reservoir cover, remove the hex-head capscrews
(4), lockwashers (5) and flat washers (6) from the clips (7)
on the cover. The fuel tank/hydraulic reservoir is secured
to the right side of the vehicle frame with four carriage
bolts (8), lockwashers (9) and hex nuts (10).

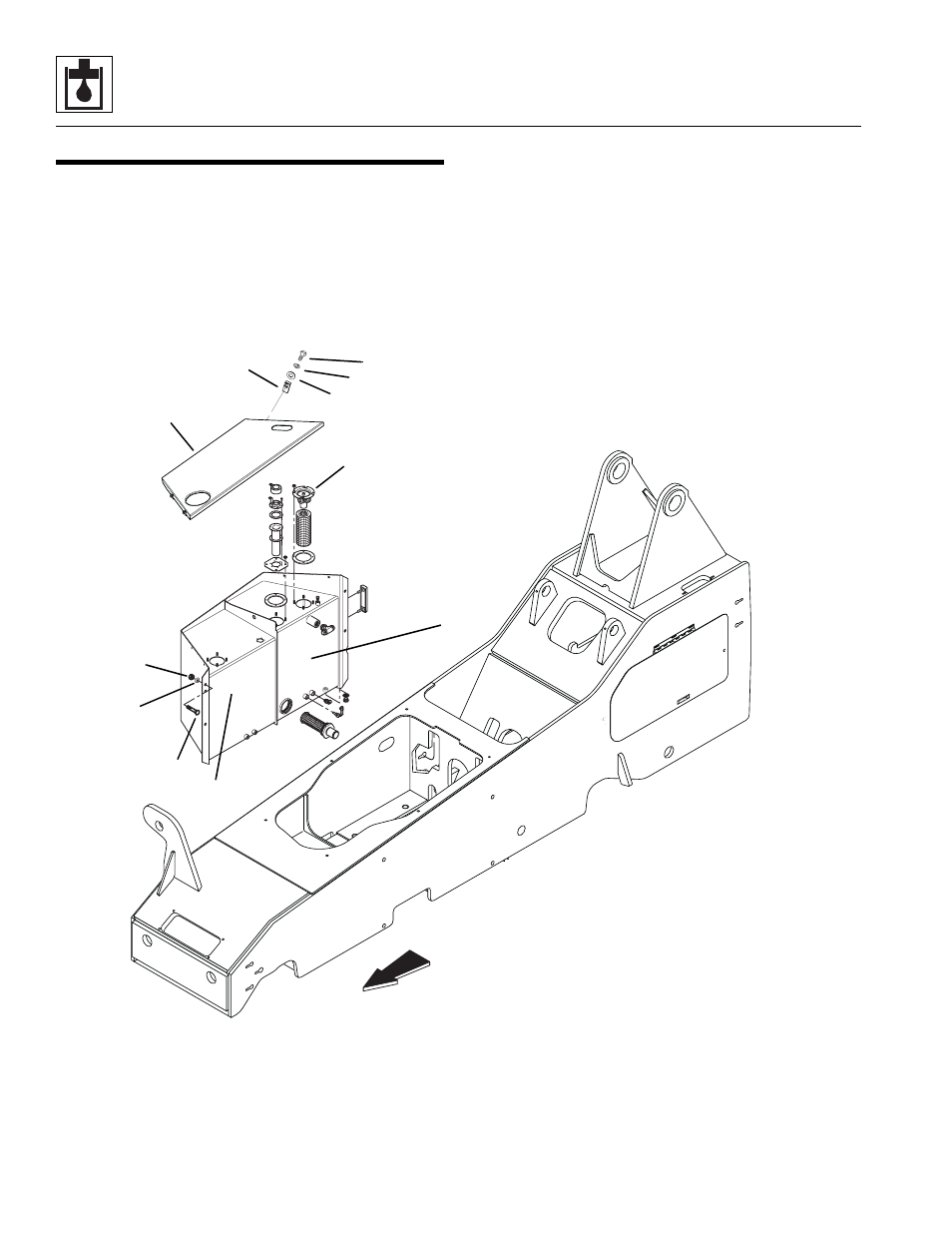

Figure 8-26 Hydraulic Reservoir Mount
`
`
`
`
```
