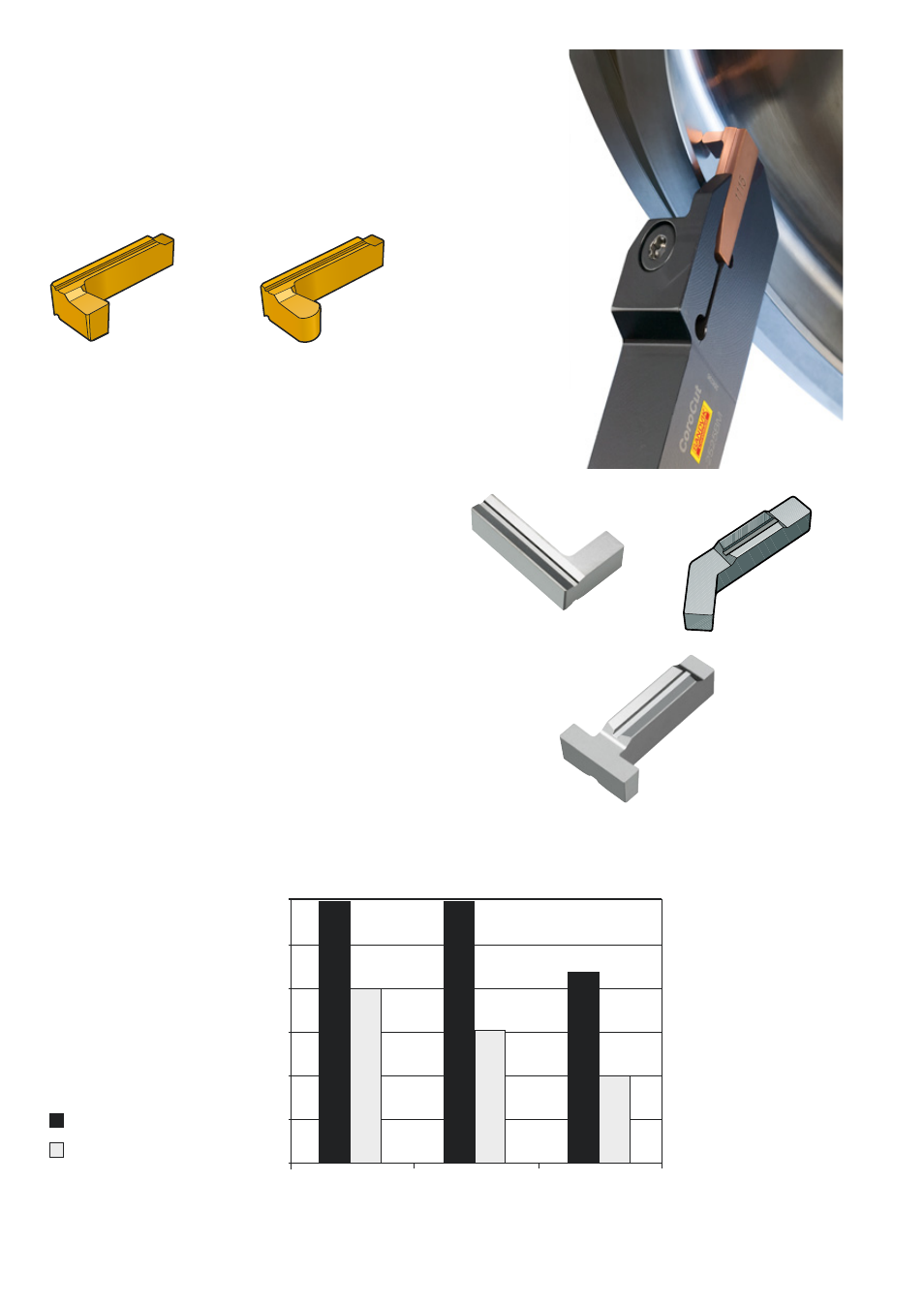

Standard assortment:
• Right- and left-handed 90º design
• Seat sizes H and L
• Width (l
a
) 2, 3 and 4 mm
• GS and RS geometry
Standard inserts and blanks for do-it-
yourself grinding
An assortment of both left and right handed
CoroCut 90
º
inserts are available as stand-
ard in grade GC1115.
For do-it-yourself grinding, blanks are avail-
able as standard in grades H13A, H10F
and H10.
90° blanks
• Seat sizes H and L
• Width (l
a
) 6 mm
• 45° and T-shape blanks
• Seat size L
• Width (l
a
) 6 mm
Application area
Feed:
Full groove –
0.05 to 0.1 mm/r
Profiling –
0.05 to 0.2 mm/r
Maximum grooving depth iW, mm
Insert width - l
a
, mm
= L tip seat
= H tip seat
12
10
8
6
4
2
0
2
4
6
