7. 1
MODEL6300
Section 7 Integration value measurement MODEL6300
7. Integration value measurement

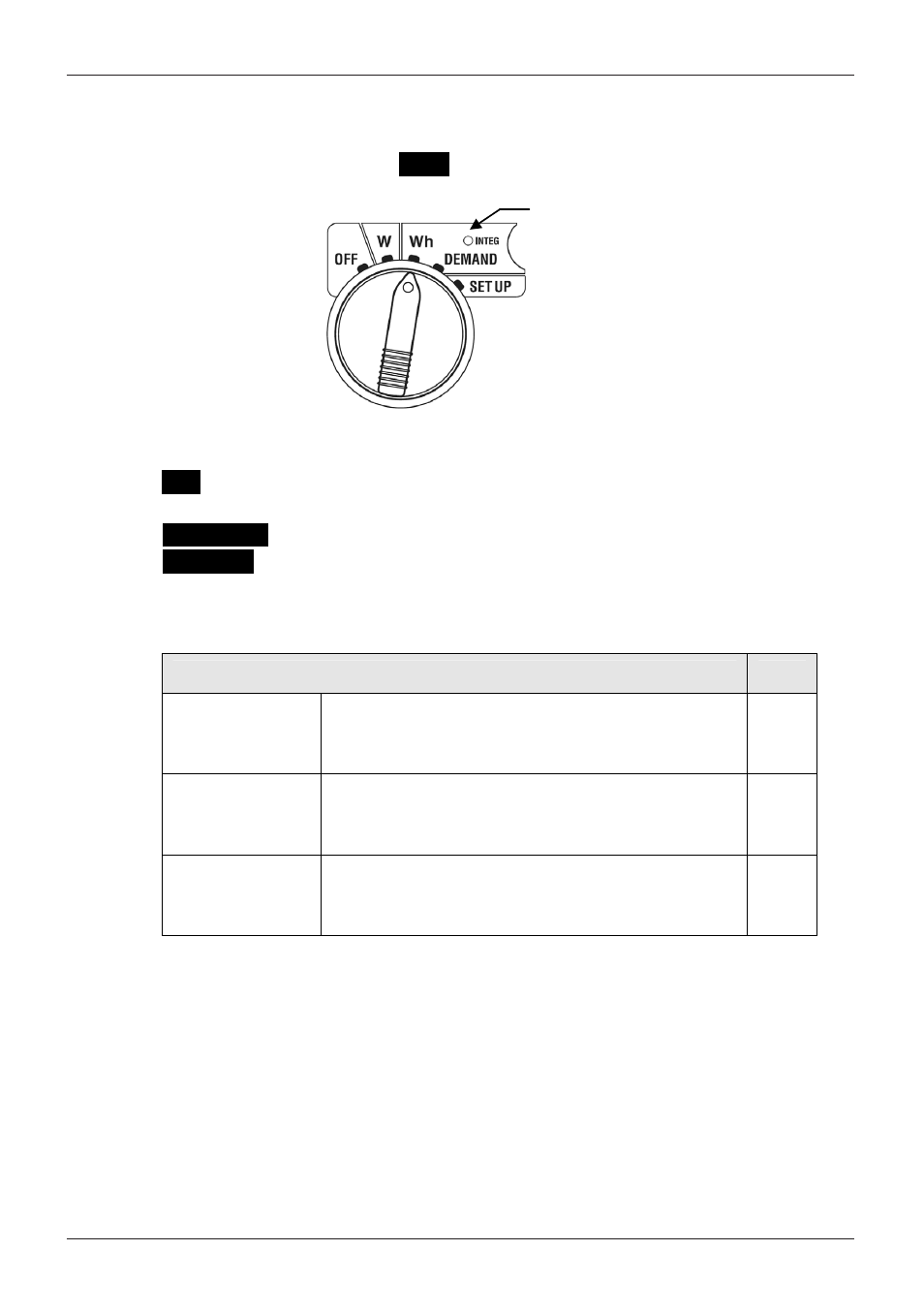

Set the Function switch to Wh range.
If the Function switch is set to the any other position during integration
measurement or stand-by mode, the following happens;
W range : Confirms instantaneous values.
(see “Section 6: Instantaneous value measurement”)
DEMAND range : No effect
SET UP range : Confirms the settings.
(see “Section 4: Settings”)
Ɣ Indications
Measurement/Calculation Parameter Unit
Active
electrical energy
(consumption)
WP : Total active electrical energy
WP1/WP2/WP3 : Active electrical energy
per phase
Wh
Apparent
electrical energy
(consumption)
WS : Total apparent electrical energy
WS1/WS2/WS3 : Apparent electrical energy
per phase
VAh
Elapsed time
of integration
TIME : Hour; Min.; Sec.
Hour; Min.
Hour
-
NOTE:
* The above parameters vary depending on each wiring configuration.
* If V1 is out of measuring range, other parameters may not be measured or
calculated.
* Only the consumed electrical energy is displayed on the screen.
Regenerative energy will only be saved. Refer to “7-5-3 Saving data” in this
manual.
* Displayed time changes with the elapsed time of integration.
LED status indicator
