13. 11
MODEL6300
Section 13 Specification MODEL6300

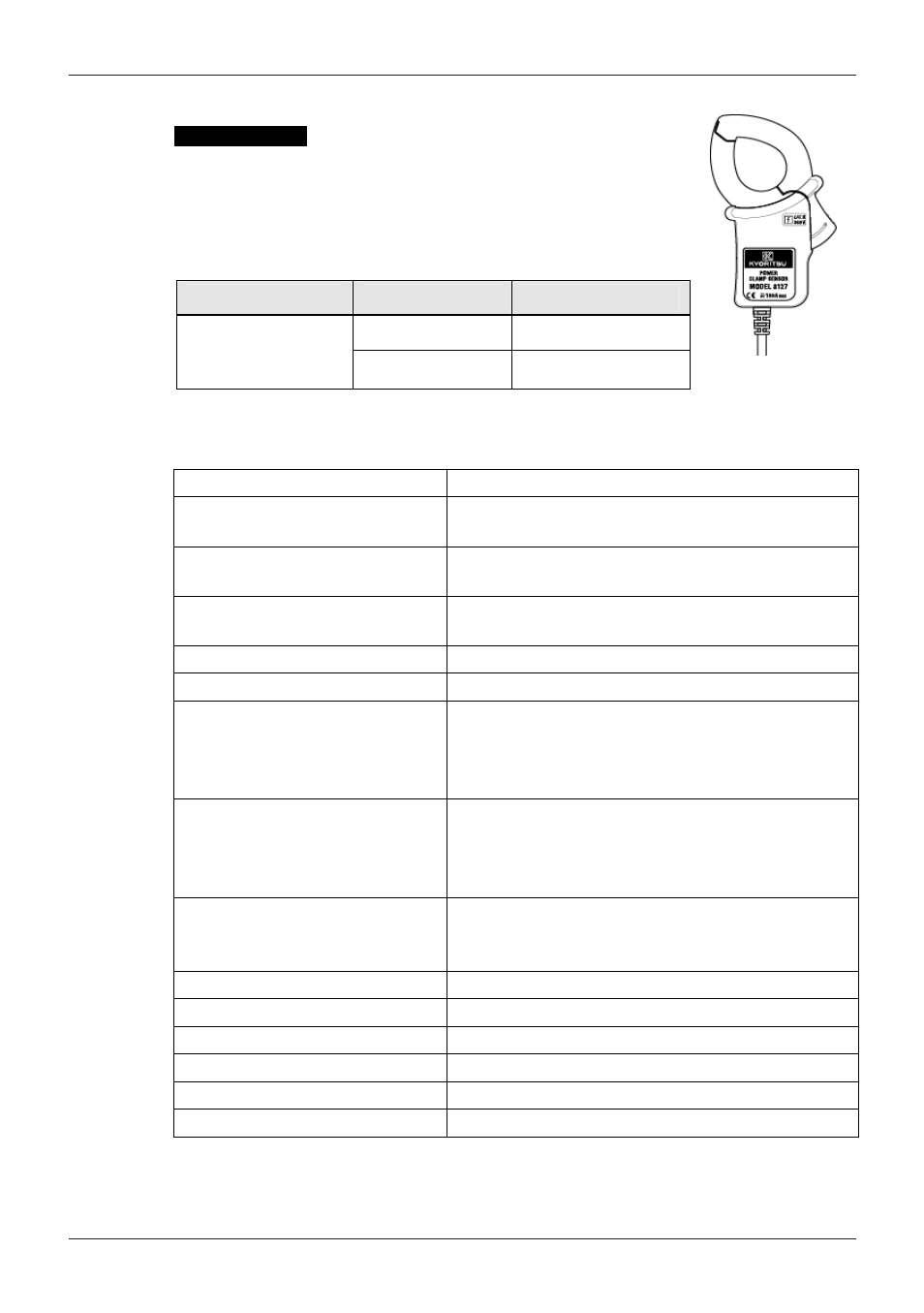

< MODEL8127 >
Ɣ Rated current
AC 100A rms (AC 150A peak)
Ɣ Output voltage
AC 0 ~ 500mV (AC 500mV/ 100A)
Ɣ Measuring range and accuracy (sine wave input)
Measuring range Frequency range Accuracy
50/60Hz ±0.5 㧑rdg±0.1mV
0 ~ 100 㧭
40Hz ~ 1kHz ±1.0 㧑rdg±0.2mV
Ɣ Phase characteristic
within ±2deg (1 ~ 100A/ 45~65Hz)
Ɣ General specification
Location for use In door use, Altitude up to 2000m
Temperature & humidity range
(guaranteed accuracy) 23ºC±5ºC/Relative humidity 85% or less
(no condensation)
Operating temperature &
humidity range 0ºC ~ 50ºC/Relative humidity 85% or less
(no condensation)
Storage temperature &
humidity range: -20ºC ~ 60ºC/Relative humidity 85% or less
(no condensation)
Max allowable input AC 100A rms continuously (50/60Hz)
Output impedance approx. 11 ȍ
Withstand voltage AC3540V rms (50/60Hz)/ for 5sec.
between jaw matched part and enclosures
between enclosures and output terminal
between jaw matched part and output terminal
Insulation resistance 50M ȍ or more/ 1000V
between jaw matched part and enclosures
between enclosures and output terminal
between jaw matched part and output terminal
Applicable standard IEC 61010-2-032
Measurement CATIII. 300V, Pollution degree 2
IEC 61326
Diameter of measured conductor Max. ĭ24mm
Cable length About 3m
Output terminal MINI DIN 6PIN
Outer diameter 100(L) x 60( 㨃) x 26(D) mm
Weight Approx. 170g
Accessories Instruction manual, Cable maker
