4. 7
MODEL6300
Section 4 Setting MODEL6300
‣ ‧ ‣ ‧• ⁈ • ⁈ ‥ • ‥ •• ⁈ • ⁈ • ••⁈ ‣ ⁂ ‣ ⁂․ ⁉ ․ ⁉ ‣⁂‥ ⁉ ‥ ⁉ ‥ ⁂ ‥ ⁂‥ ⁉ ‥ ⁉ ‥⁂ …⁉
‧″ ‧″ ‣• ‣• ″ ․• ․• ″ ‧•″ ‧•″ ‣• ‣• •″ •″ ․• ․• •″ •″ ‧•• ‧•• ″ ‣ •• •• •″ •″
‣ ‧• ⁈ ‥ ••⁈ • •⁈ ‣⁂ ․⁉ ‣⁂ ‥⁉ ‥ ⁂‥ ⁉ ‥ ⁂…⁉
‧″ ‣ •″ ․• ″ ‧ •″ ‣ ••″ ․ ••″ ‧• •″ ‣•• •″

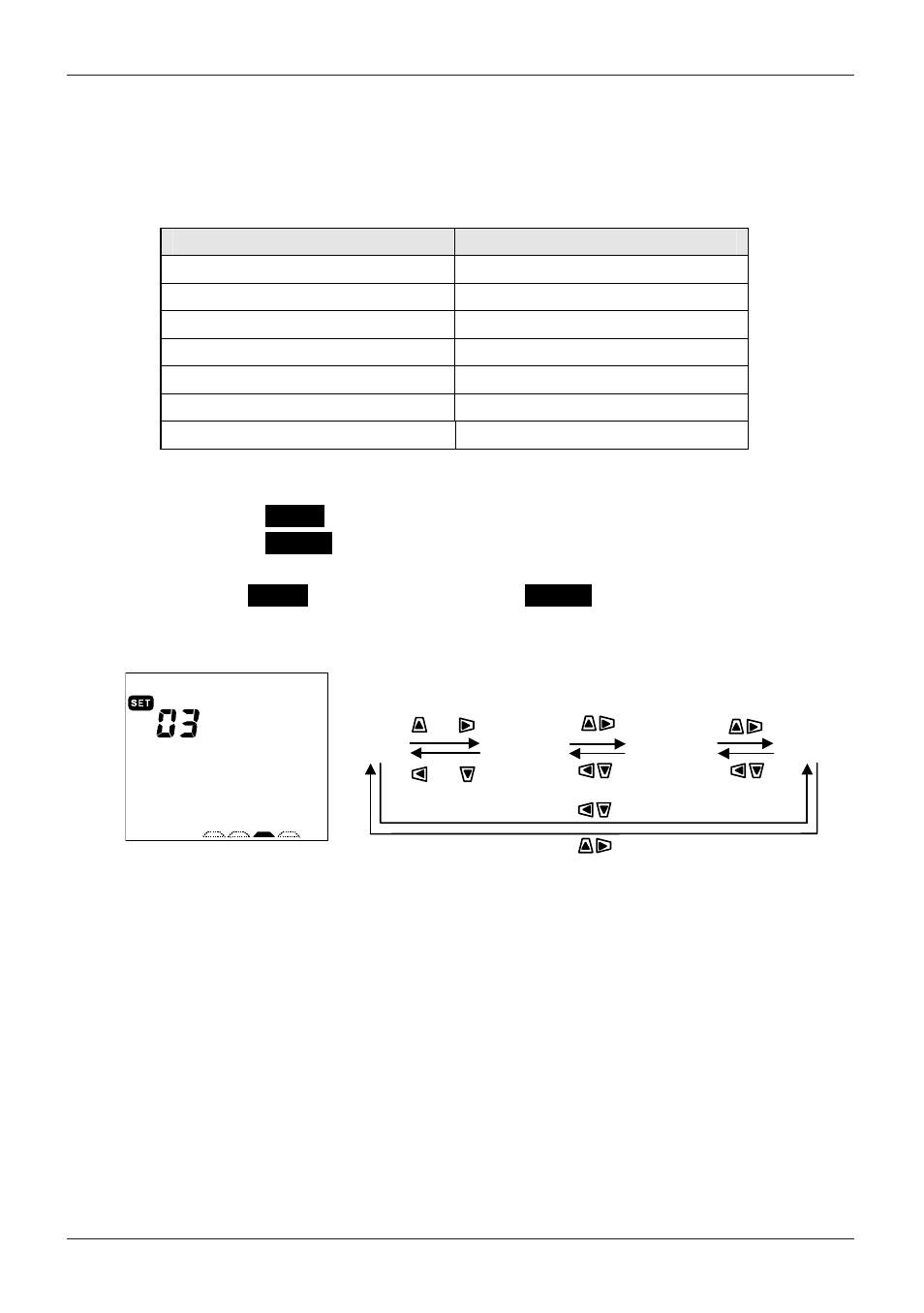

4-3-3 “Setting 03” Current range
Current range varies depending on the selected Clamp sensor which is done
at “Setting 04” in the next section.
Clamp sensor 㧔“Setting 04”㧕 Current range
50A (M-8128) 5A / 10A / 20A / 50A
100A (M-8127) 10A / 20A / 50A / 100A
200A (M-8126) 20A / 50A / 100A / 200A
500A (M-8125) 50A / 100A / 200A / 500A
1000A (M-8124) 100A / 200A / 500A / 1000A
3000A 1000A / 3000A (*)
Default value 200A
* On 3000A range, CT ratio (“Setting 06”) has been set to 3.00.
* Using the Cursor key whilst in the selection screen, select “Setting 03”.
* Press the ENTER key to enter setting change mode.
* Previous setting(or default value) flickers. Select the desired current range
with the
Cursor key, and then press the ENTER key.
“ Setting 04 ” >
NOTE
* When the clamp sensor (“Setting 04”) is changed, the current range will
also change accordingly.
* When the Clamp sensor in use is different from the setting for the sensor
made at “Setting 04”, readings obtained are not correct.
50A 100A 500A 200A
or
or
