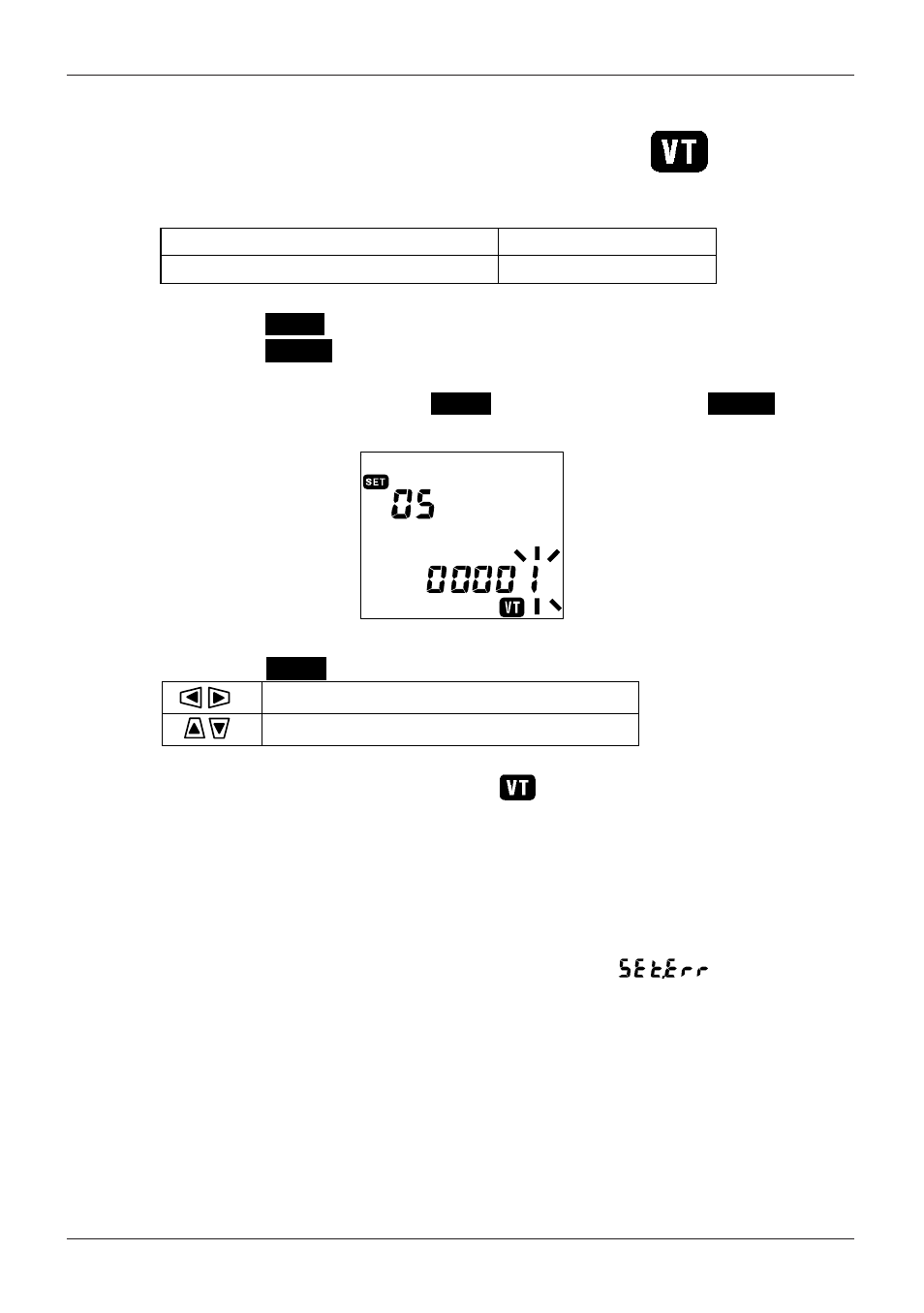

Section 4 Setting MODEL6300
‣ ‧•⁈ ‥• •⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥ ⁉ ‥⁂ ‥⁉ ‥ ⁂…⁉
‧ ″ ‣ •″ ․ •″ ‧• ″ ‣•• ″ ․•• ″ ‧• •″ ‣• ••″
4-3-5 “Setting 05” VT ratio
For the detailed information about VT ratio, refer to “5-3 VT/CT” in
this manual.
Setting range 1 ~ 10000
Default value 1
* Using the Cursor key whilst in the selection screen, select “Setting 05”.
* Press the ENTER key to enter setting change mode.
* The rightmost digit of previous setting (or default value: 00001) flickers.
* Change the number with the
Cursor key, and then press the ENTER key.
Function of Cursor keys
To select the desired digit.
To change the value of selected digit.
When VT ratio is set to other than 1, “ ” mark appears on each
measurement screen.
NOTE
* When 0 is set as a VT ratio, it is automatically changed to 1.
In case that a value of 10000 or more is set, it is automatically changed to
10000.
* If a value cannot be set as a VT ratio, a message “ ” is displayed
on the LCD, and the value returns to the previous set value.
(Voltage range “Setting 02”) x 120% x (Current range “Setting 03”) x 120%
x (VT ratio ) x (CT ratio “Setting 06”) > 9999G (G=10
9
)
‣ ‧ ‣ ‧• ⁈ • ⁈ ‥• • • •⁈ • •• ⁈ • ⁈ ‣ ⁂ ‣ ⁂ ․⁉ ‣ ⁂ ‣ ⁂‥ ⁉ ‥ ⁉ ‥ ⁂ ‥ ⁂‥ ⁉ ‥ ⁉ ‥⁂ …⁉
‧″ ‧″ ‣ •″ •″ ․ •″ •″ ‧ •″ •″ ‣• ‣• •″ •″ ․ •• •• ″ ‧• ‧• •″ •″ ‣ •• •• •″ •″
