MODEL6300 Section 3 Preparation for measurement
Section
3
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
‣ ‧ • ⁈ ‥ •• ⁈ •• ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥⁉ ‥⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣ • ″ ․• ″ ‧ • ″ ‣ •• ″ ․ • • ″ ‧ • • ″ ‣• • • ″
3-3 Turning on the instrument
3-3-1 Start-up screen
Set the Function switch to any range other than the OFF position turns on the
instrument. Then following screen appears.

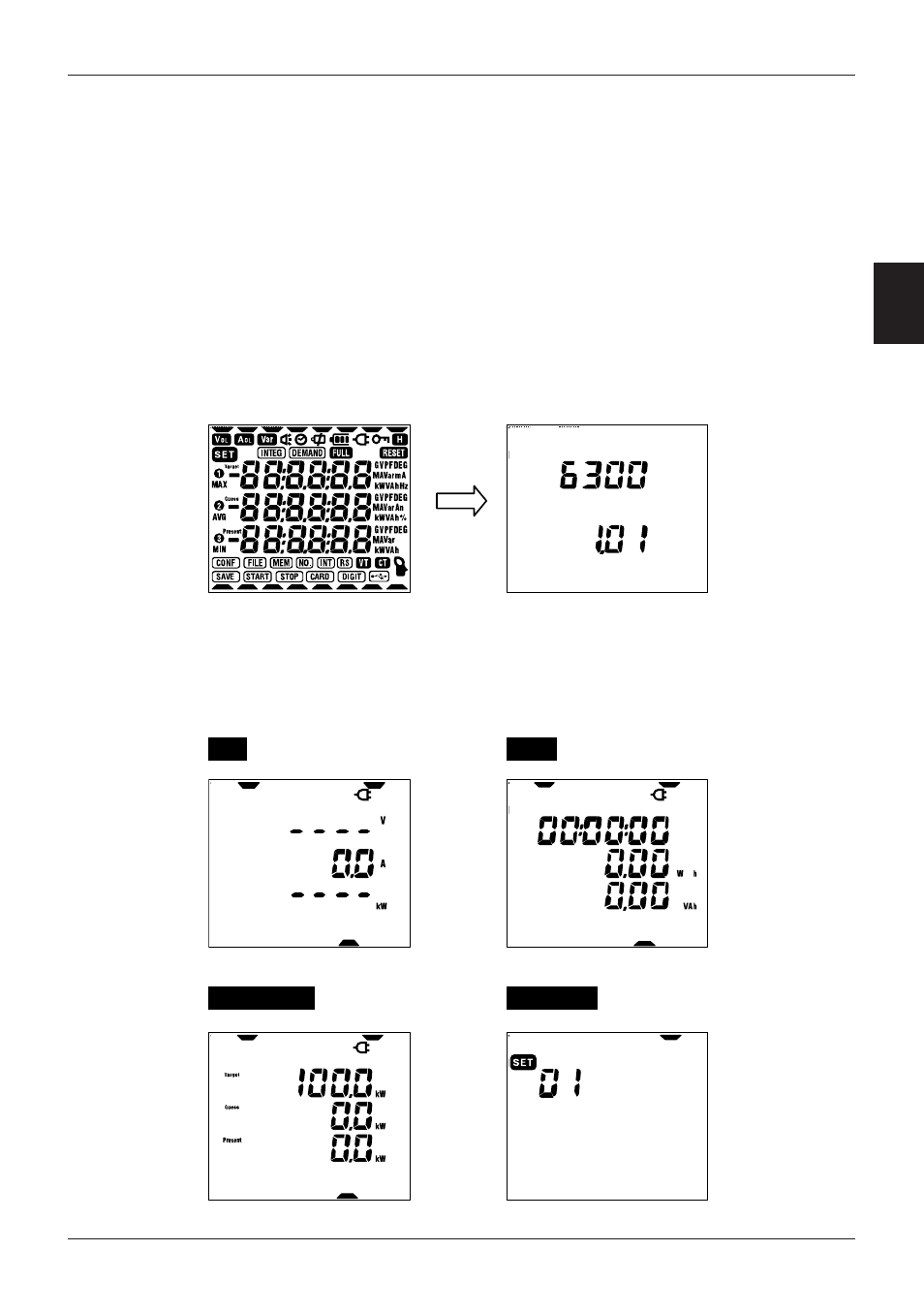

1. All segments on
All segments are displayed for about 1sec., then the screen switches to
the MODEL/VERSION screen and being displayed for about 2sec..
All segments are on MODEL/VERSION screen
(displayed for about 1sec.) (displayed for about 2sec.)
2. Display on each range
The following screen appears, depending on the position of Function
switch.
W range Wh range
DEMAND range SET UP range
