Section 9 CF card/ Internal memory MODEL6300
9-2 Placing / removing the CF card
DANGER
Ɣ Never open the CF card connector cover during a measurement.
WARNING
Ɣ When placing or removing the CF card, be sure to remove the Voltage test leads
and Clamp sensor from the instrument and set the Function switch to OFF position.
CAUTION
Ɣ Be sure to set the Function switch to OFF position before placing or removing a
CF card. If a CF card is placed/removed while the instrument is on, saved data or
instrument may be damaged.
Ɣ How to place:
(1) Loosen the CF card cover-fixing screw, and open the cover.
(2) Turn the CF card obverse side up, and firmly place it in the CF card
connector. Then the Eject button is popped-out.
(3) After inserting the card, close the CF card cover and tighten the screw.
Ɣ How to remove:
(1) Loosen the CF card cover-fixing screw, and open the cover.
(2) The card can be removed by pushing the Eject button beside the
card connector. The Eject button is being pressed down.
(3) Remove the card, and then close the CF card cover and tighten the
screw.
NOTE
* When placing the CF card in the connector, pay attention to the orientation
of the arrow mark indicated on the obverse side of the CF card.

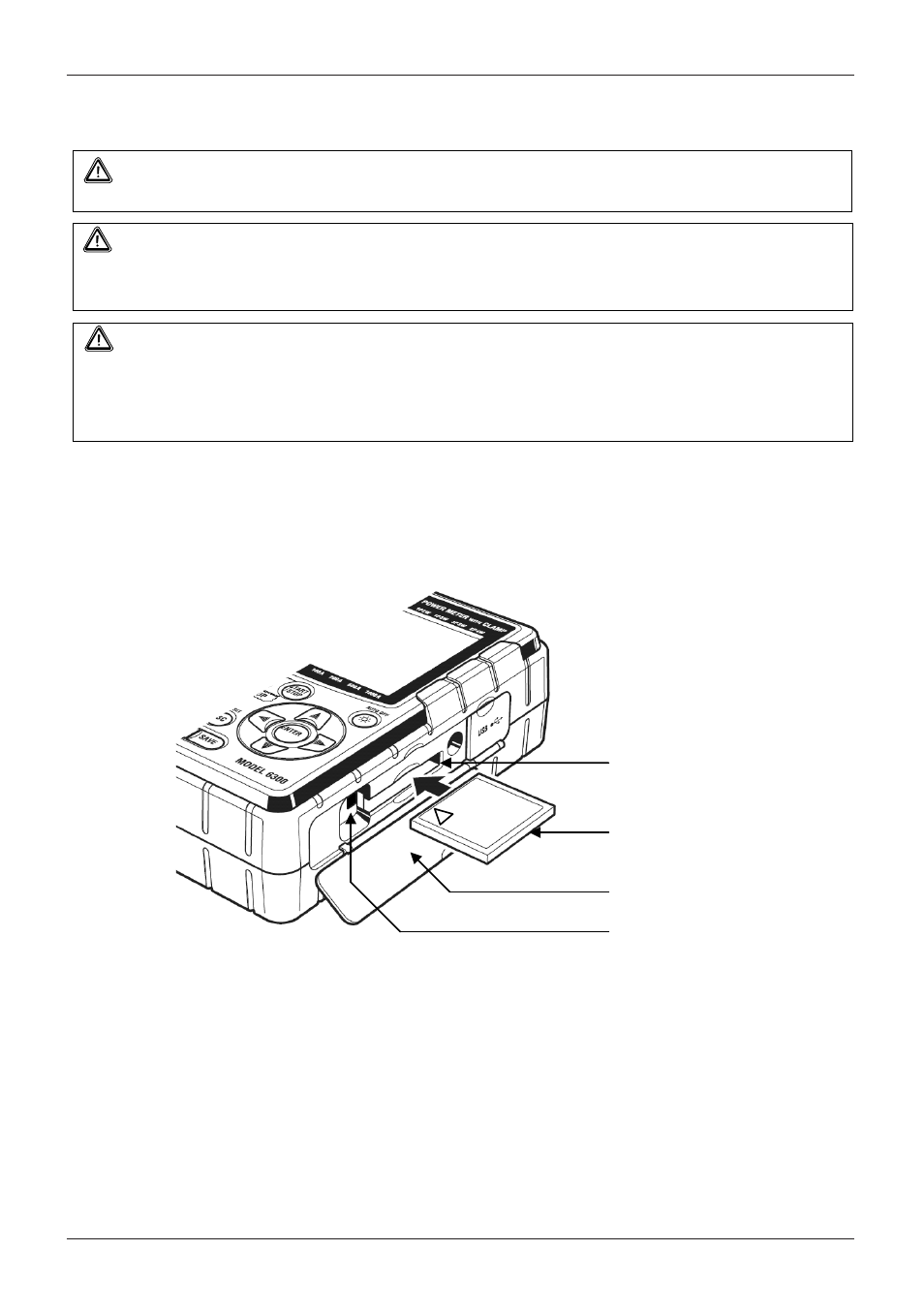

Function switch: OFF
CF card connector cover
CF card
CF card connector
Eject button
