MODEL6300
8. 6
MODEL6300 Section 8 Demand value measurement
Section
8
Ɣ Settings required for Demand measurement
Interval :
“Setting 13” Demand interval
Target demand value : “Setting 16” Demand target value
Inspection cycle
: “Setting 17” Demand inspection cycle
Buzzer : “Setting 07” Buzzer
To start/stop measurement at a preset time and date, the following settings are
also required:
* Measurement start: “Setting 14”: Demand start time and date
* Measurement stop: “Setting 15”: Demand stop time and date
Refer to section “8-3 Starting a measurement” and section “8-4 Stopping
measurement” in this manual.
Ɣ Saving Demand values
When one demand measurement (demand interval) ends, demand values are
saved to the CF card or the internal memory.
Refer to “8-6 Saving data” in this manual. After the data is saved, the next
demand measurement starts.
The max. demand value is displayed on the LCD together with the
corresponding time and date.

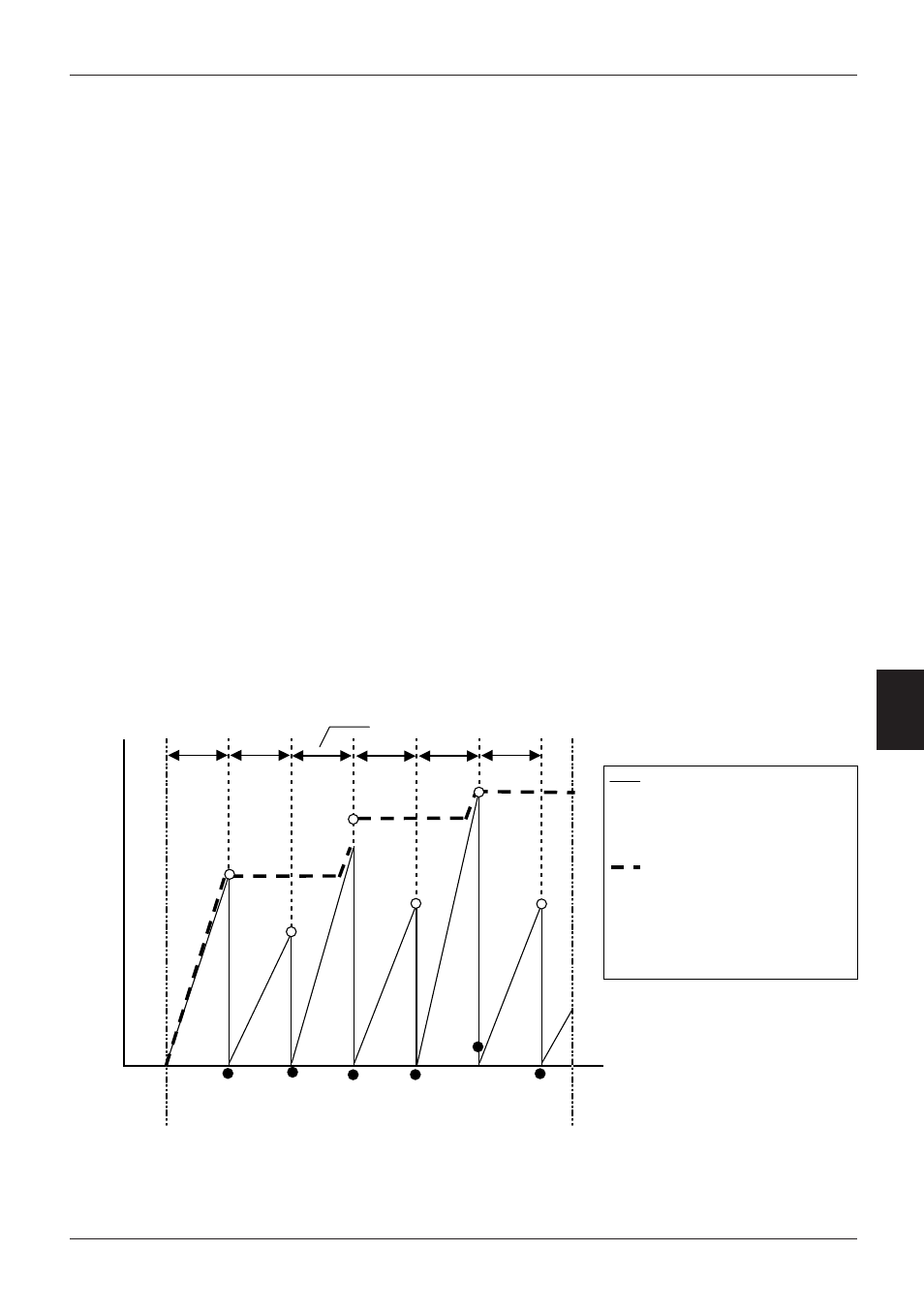

The following is an example of the saving status of a demand value survey
where the demand interval is 30 min and the survey duration is about 3 hours.
Demand value(kW) Demand interval
: Demand value
(Present demand
value)
: Max. demand value
(displayed on LCD)
Ɣ
: Data saving point
ż
: Demand value saved
0 0.5h 1h 1.5h 2h 2.5h 3h
Elapsed time(h)
Start of demand End of demand
‣ ‧ • ⁈ ‥ • • ⁈ • • ⁈ ‣ ⁂ ․ ⁉ ‣ ⁂ ‥ ⁉ ‥ ⁂‥ ⁉ ‥ ⁂… ⁉
‧ ″ ‣ • ″ ․ • ″ ‧ • ″ ‣ • • ″ ․ • • ″ ‧ • • ″ ‣ • • • ″
‣ ‧ •⁈ ‥ •• ⁈ • •⁈ ‣ ⁂․ ⁉ ‣ ⁂‥ ⁉ ‥ ⁂‥ ⁉ ‥ ⁂…⁉
‧″ ‣• ″ ․ •″ ‧ • ″ ‣ • •″ ․ • •″ ‧• • ″ ‣ • •• ″
‣ ‧ • ⁈ ‥ • • ⁈ • • ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥ ⁉ ‥ ⁂‥ ⁉ ‥ ⁂… ⁉
‧ ″ ‣ • ″ ․ • ″ ‧ • ″ ‣ • • ″ ․ • • ″ ‧ • • ″ ‣ • • • ″
