MODEL6300
6. 4
MODEL6300 Section 6 Instantaneous value measurement
Section
6
* For further details about Screen 1-A,
refer to “6-2 Switching the display
screen” in this manual.
‣‧ • ⁈ ‥ • • ⁈ • • ⁈ ‣ ⁂․ ⁉ ‣ ⁂‥ ⁉ ‥ ⁂‥ ⁉ ‥ ⁂… ⁉
‧ ″ ‣ •″ ․ • ″ ‧ • ″ ‣ •• ″ ․• • ″ ‧ • •″ ‣ • • • ″

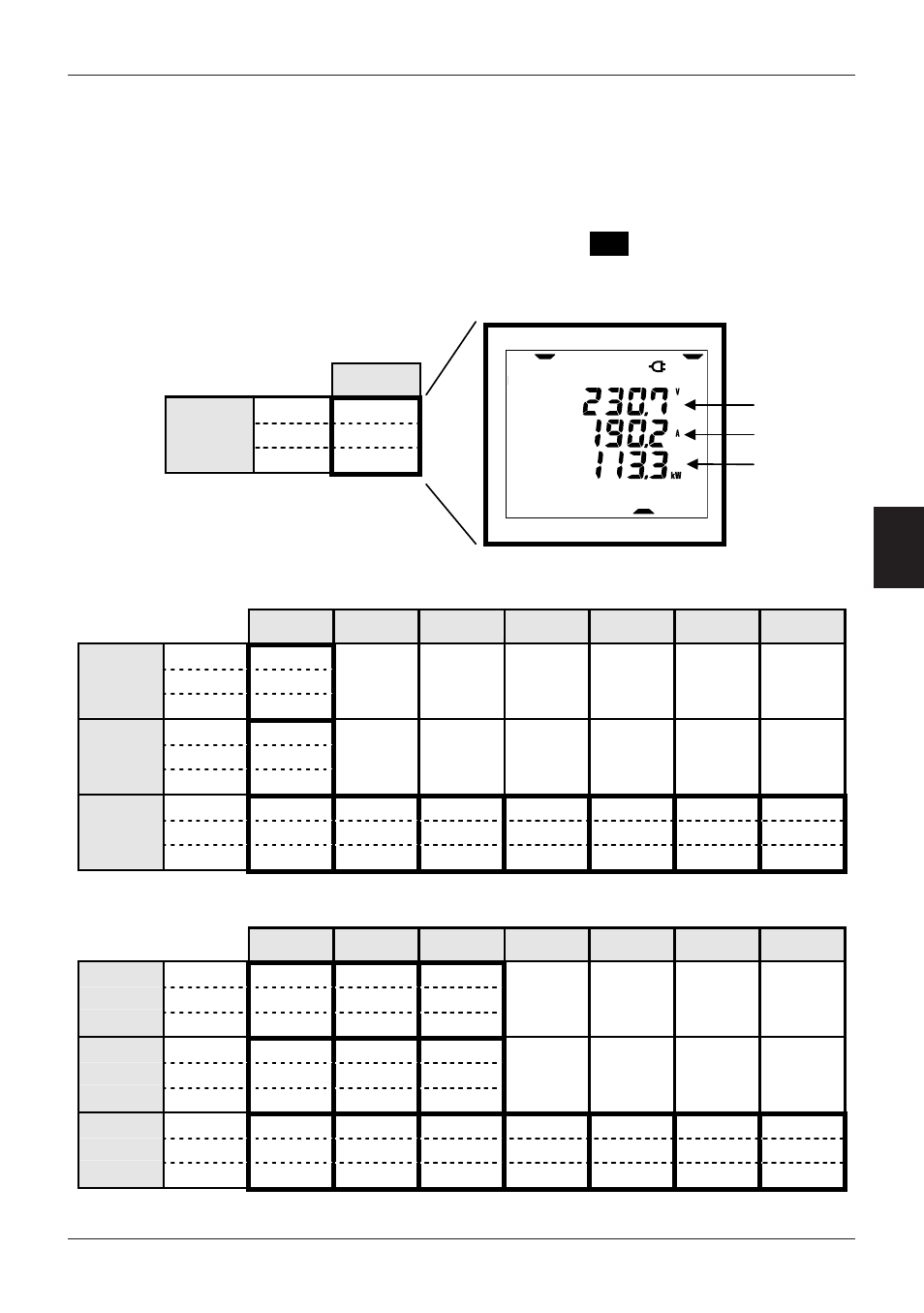

6-1 Wiring Configuration display screen
The start-up screens (or the screen after system reset) corresponding to each
wiring configuration are listed below.
When turning the Function switch from “OFF” to W range, the following
measurement screen appears.
Screen 1-A (*)
Screen A
Upper V
Middle A Screen 1
Lower P
Ɣ Single-phase 2-wire (1ch) “1P2W (1ch)” (9 screens)
Screen A Screen B Screen C Screen D Screen E Screen F Screen G
Upper V
Middle A Screen 1
Lower P
- - - - - -
Upper P
Middle S Screen 2
Lower PF
- - - - - -
Upper V A P PF S Q f
Middle - - - - - - - Screen 3
Lower - - - - - - -
Ɣ Single-phase 2-wire (2ch) “1P2W (2ch)” (13 screens)
Screen A Screen B Screen C Screen D Screen E Screen F Screen G
Upper V V V
Middle A A1 A2 Screen 1
Lower P P1 P2
- - - -
Upper P P1 P2
Middle S S1 S2 Screen 2
Lower PF PF1 PF2
- - - -
Upper V A1 P1 PF1 S1 Q1 f
Middle - A2 P2 PF2 S2 Q2 - Screen 3
Lower - - - - - - -
Upper : V
Middle : A
Lower : P
‣ ‧ • ⁈ ‥ • •⁈ • •⁈ ‣ ⁂․⁉ ‣⁂‥ ⁉ ‥ ⁂‥ ⁉ ‥⁂… ⁉
‧ ″ ‣• ″ ․ •″ ‧• ″ ‣ • • ″ ․ • •″ ‧ • • ″ ‣ • • • ″
e.g. Three-phase 4-wire (Screen 1-A)
